Dahua NVR100 series User Manual

311
 TCP port: Default value is 37777.
 UDP port: Default value is 37778.
 HTTP port: Default value is 80.
 HTTPS port: Default value is 443.
 RTSP port: Default value is 554.
Important: System needs to reboot after you changed and saved any setup of the above four ports.
Please make sure the port values here do not conflict.

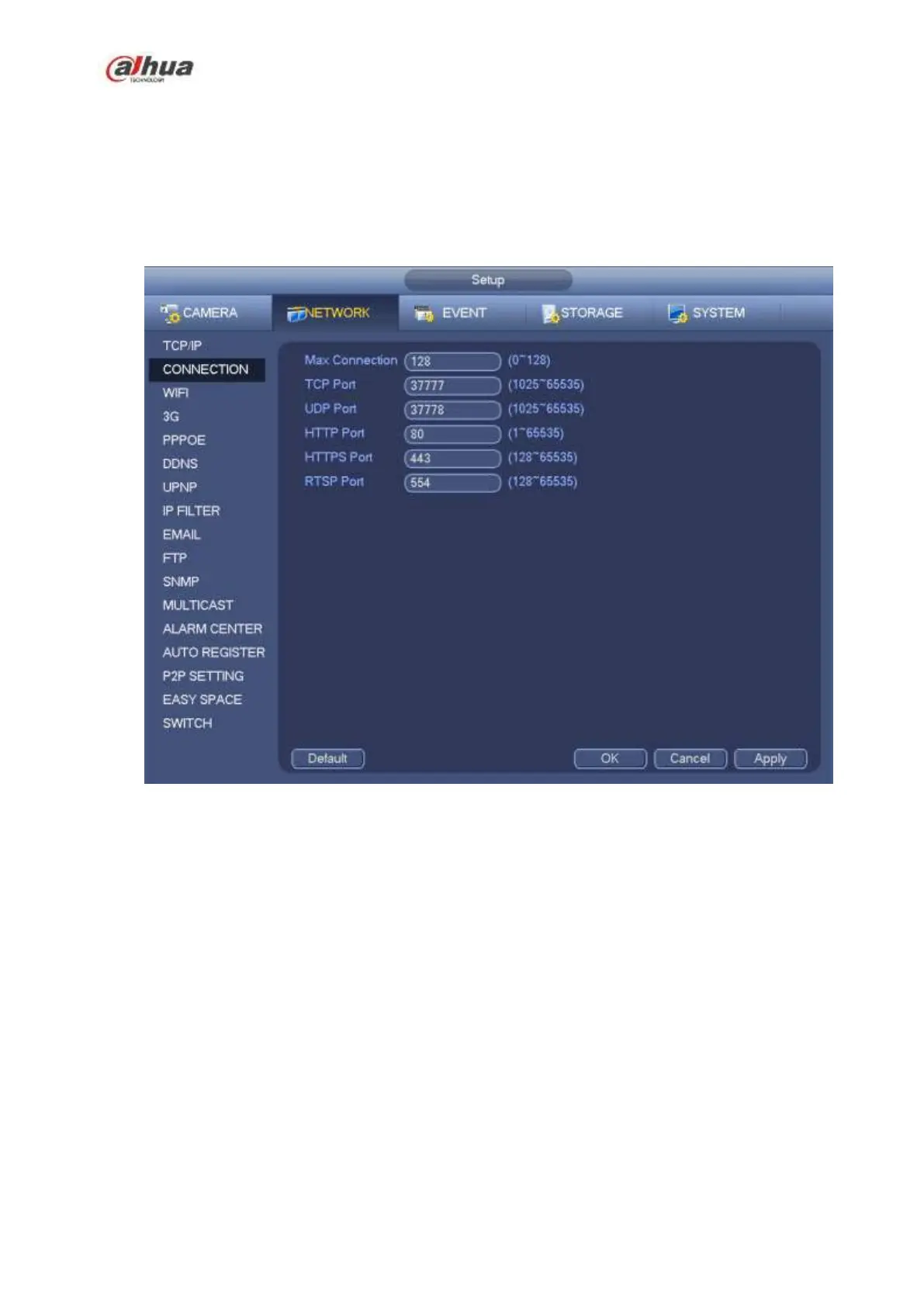

Figure 4-163
4.8.1.3 WIFI AP
Note
This function is for some series product only.
4.8.1.3.1 WIFI AP
The WIFI AP interface is shown as below. See Figure 4-164. Here you can set WIFI hotspot, so that the
network camera can use the hotspot to connect to the network.
 2.4GHz/5GHz: Please check the box to enable the function.
 SSID: It is to set SSID name. You can use this name to search the device.
 Password: It is to set SSID password. You can use this password to connect to the network.
 Security: Select authentication mode from the dropdown list.
 Channel: Please select a channel from the dropdown list. The default setup is auto.
 Mode: There three options: high/middle/low. Please select from the dropdown list.
