424
For detailed setups, please refer to chapter 5.10.3.1.1 motion detect for detailed information.
5.10.3.2.1.2 Intrusion (Cross warning zone)
From main menu->Setup->Event-> Behavior analytics->Behavior analytics, click , and then select rule
type as intrusion, you can see the following interface. See Figure 4-129.
Note:
System supports customized area shape and amount.
Support enter/leave/both detection.
Can detect the moving object operation in the specified zone, customized trigger amount and staying
time.
Support objects filter function.

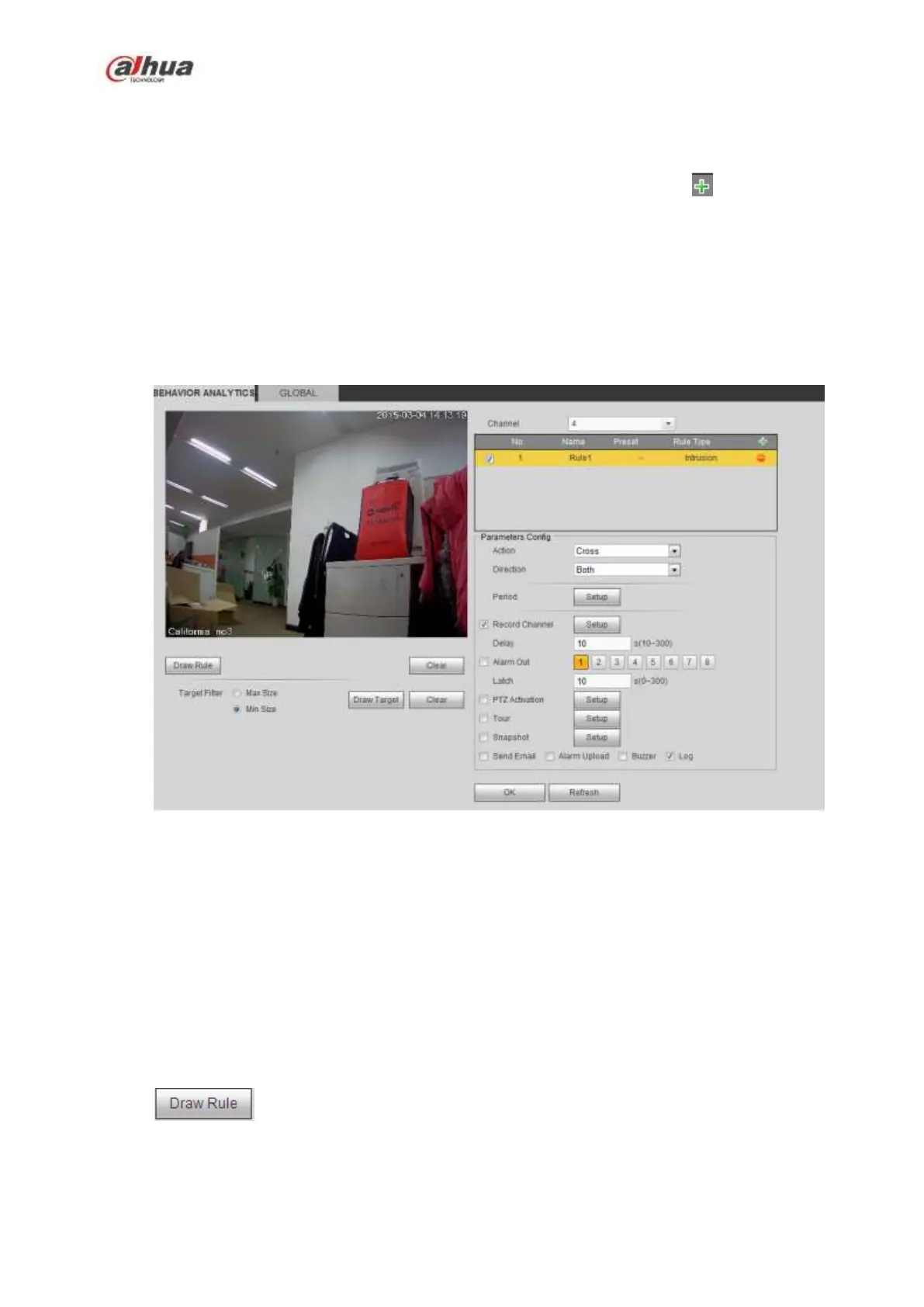

Figure 5-76
Check the Intrusion box to enable intrusion function.
Select SN (Area1/2/3/4) and direction, and then input customized rule name.
Action: System supports two types:appear/cross.
Direction: There are three options: A->B, B->A, both. System can generate an alarm once there is
any object enter/exit (Or both) the zone.
Now you can draw a rule. Left click mouse to draw a line first and then right click mouse to draw another
line until you draw a rectangle, you can right click mouse to exit.
Click Ok to complete the rule setup.
Click to draw the zone. See Figure 5-77.
