Dahua NVR1104HS-W Series User Manual

User's Manual
4
2 Front Panel and Rear Panel
The following front panel and rear panel figures are for reference only. The actual product shall
prevail.
2.1 Front Panel
2.1.1
NVR41/41-P/41-W/41-4KS2/41-P-4KS2/21-S2/21-P-S2/21-8P-S2/4
1-4KS2/41-P-4KS2/41-8P-4KS2/21-4KS2/21-P-4KS2/21-8P-4KS2
Series

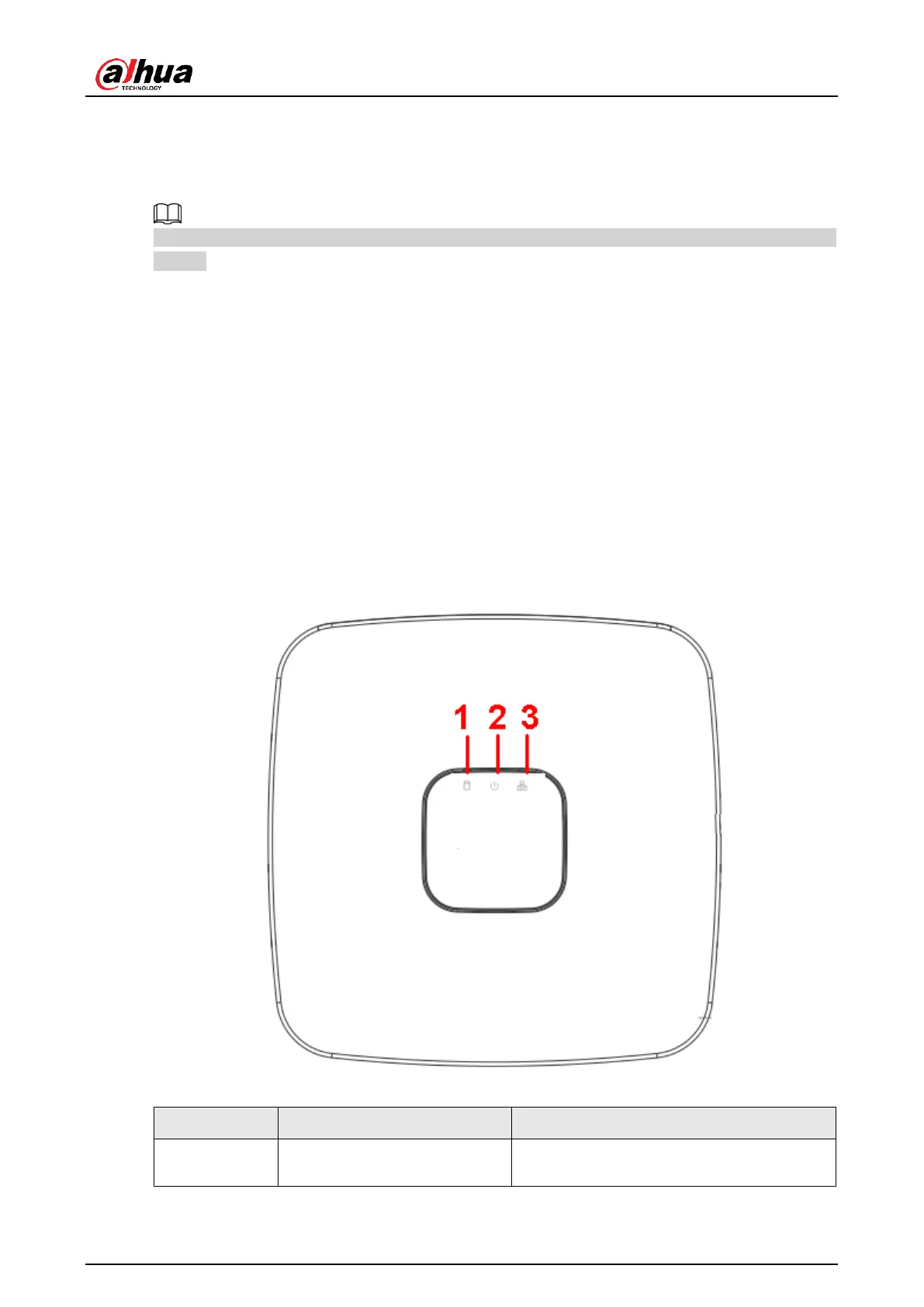

The front panel is shown as in Figure 2-1.
Figure 2-1 Front panel
Table 2-1
No.
Name
Function
1
HDD status indicator light
The red light becomes on when HDD is
abnormal.

Dahua NVR1104HS-W Series Specifications

General

Series	NVR1104HS-W
Channel Input	4
Power Supply	DC 12 V, 1.5 A
Interface	1 HDMI, 1 VGA
Decoding Format	H.265/H.264
Wireless	No
Mobile Operating System	iOS, Android
Video Compression	H.265+/H.265/H.264+/H.264
Storage Capacity	Up to 6TB
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet interface
Operating Temperature	-10 °C to +45 °C (+14 °F to +113 °F)
Two-way Talk	Yes
Recording Resolution	5MP/4MP/3MP/1080p/720p
Max. Decoding	4-ch@1080p (30fps)
Protocols	TCP/IP, DHCP, DNS
Internal HDD	1 SATA port, up to 6 TB
USB	2 USB 2.0
Power Consumption	< 10W (without HDD)
Operating Humidity	10% to 90%
