User's Manual
34
2.2.9 NVR44/44-8P/44-16P Series

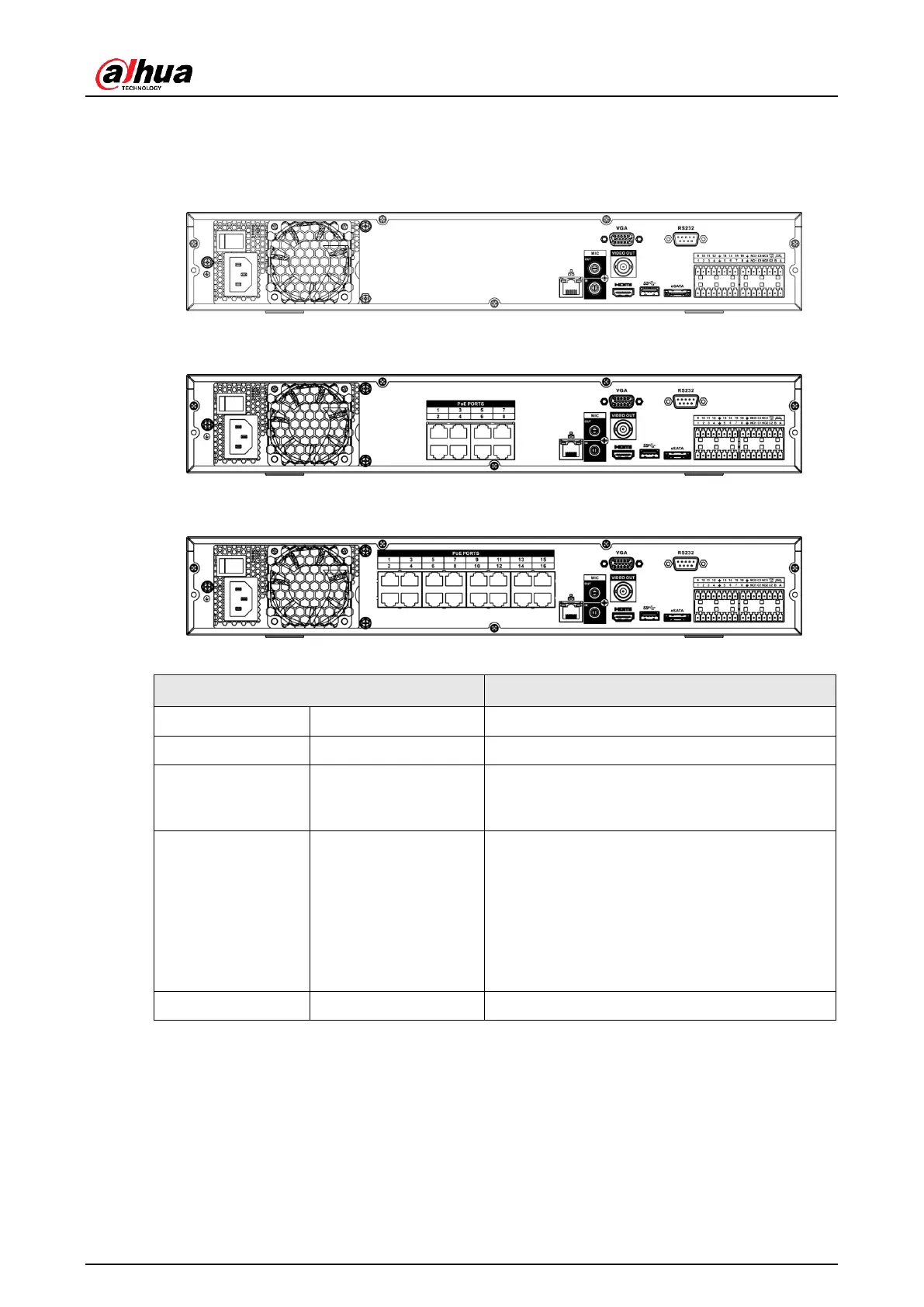

The NVR44 series rear panel is shown as below. See Figure 2-45.
Figure 2-45
The NVR44-8P series rear panel is shown as below. See Figure 2-46.
Figure 2-46
The NVR44-16P series rear panel is shown as below. See Figure 2-47.
Figure 2-47
Table 2-22
Name
Function
Power switch
/
Power on-off button
Power input port
/
Input AC 100~240V.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as microphone, pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog
audio signal to the devices such as the sound
box.
Bidirectional talk output.
Audio output on 1-window video monitor.
Audio output on 1-window video
playback.
VIDEO OUT
Video output port
CVBS output
