User's Manual
288

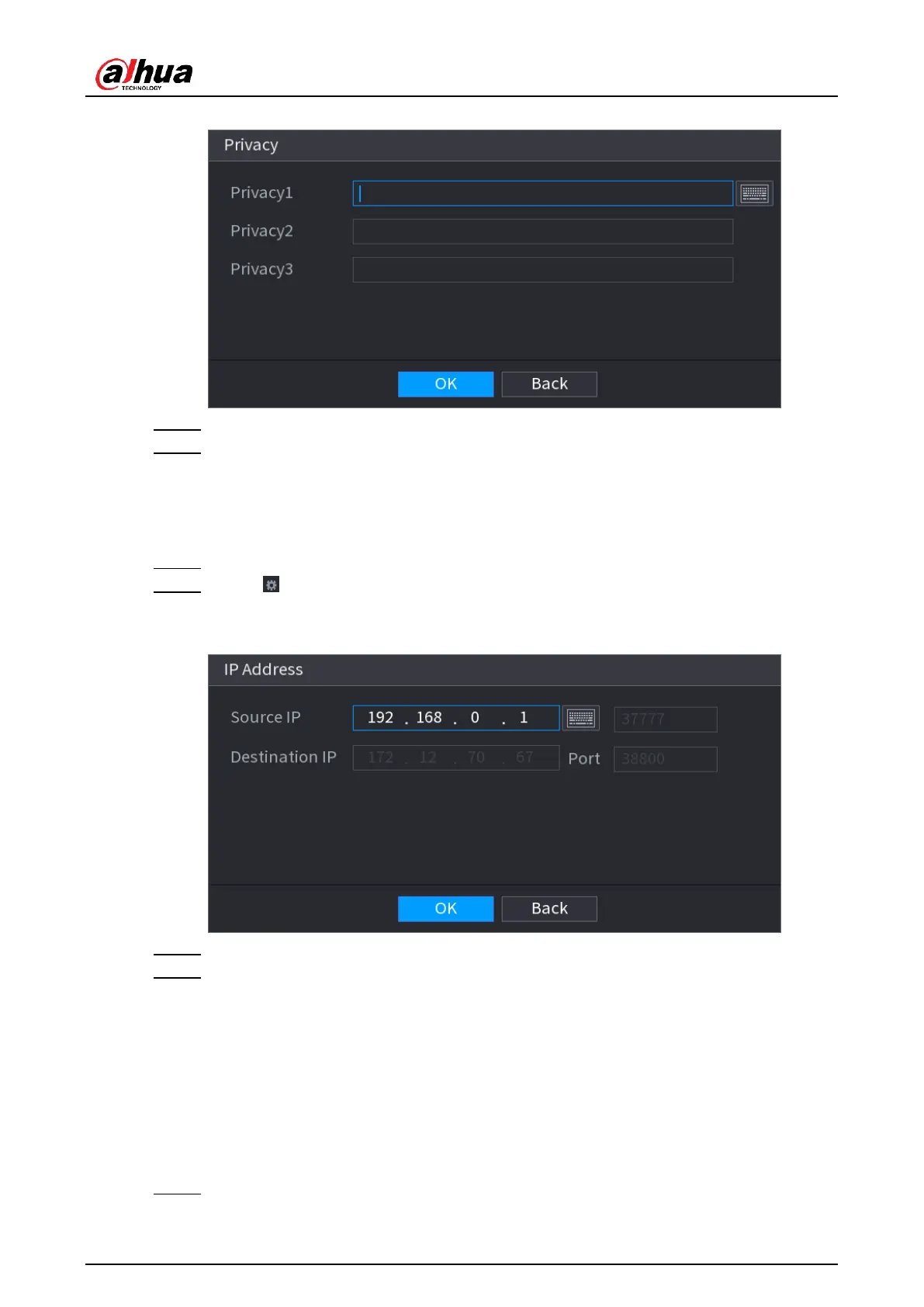

Figure 4-188
Step 2 Set privacy information.
Step 3 Click
OK
.
4.9.2.2 Connection type
Connection type is UDP or TCP.
Step 1 Select
Connection Mode
as
UDP
,
TCP_CLINET
or
TCP
.
Step 2 Click .
The
IP Address
interface is displayed. See Figure 4-189.
Figure 4-189
Step 3 Enter
Source IP
and
Port
. Refers to POS IP address and port.
Step 4 Click
OK
to complete setup.
4.10 Operation and Maintenance
4.10.1 Log
You can view and search the log information, or backup log to the USB device.
Step 1 Select
Main Menu
>
MAINTAIN
>
Log
.
The
Log
interface is displayed. See Figure 4-190.
