User's Manual
20

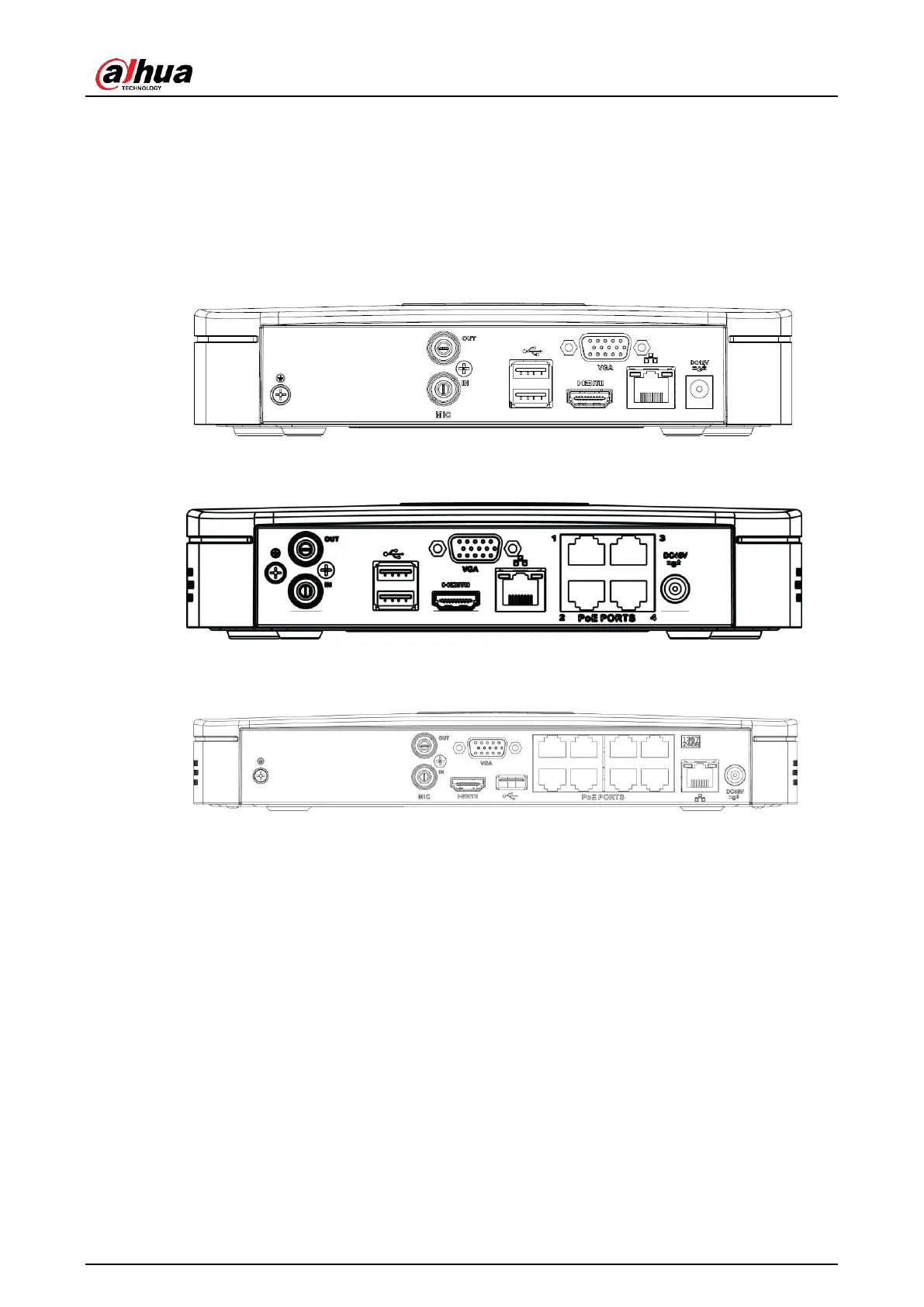

2.2 Rear Panel
2.2.1 NVR41/41-P/41-8P/41-W Series
The NVR41beneficio Smart 1U series rear panel is shown as below. See Figure 2-18.
Figure 2-18
The NVR41-P rear panel is shown as below. See Figure 2-19.
Figure 2-19
The NVR41-8P rear panel is shown as below. See Figure 2-20.
Figure 2-20
The NVR41-W rear panel is shown as below. See Figure 2-21.
