Advanced Settings 70
4.2.5 Aggregation
Static
You can view the aggregation static configuration.

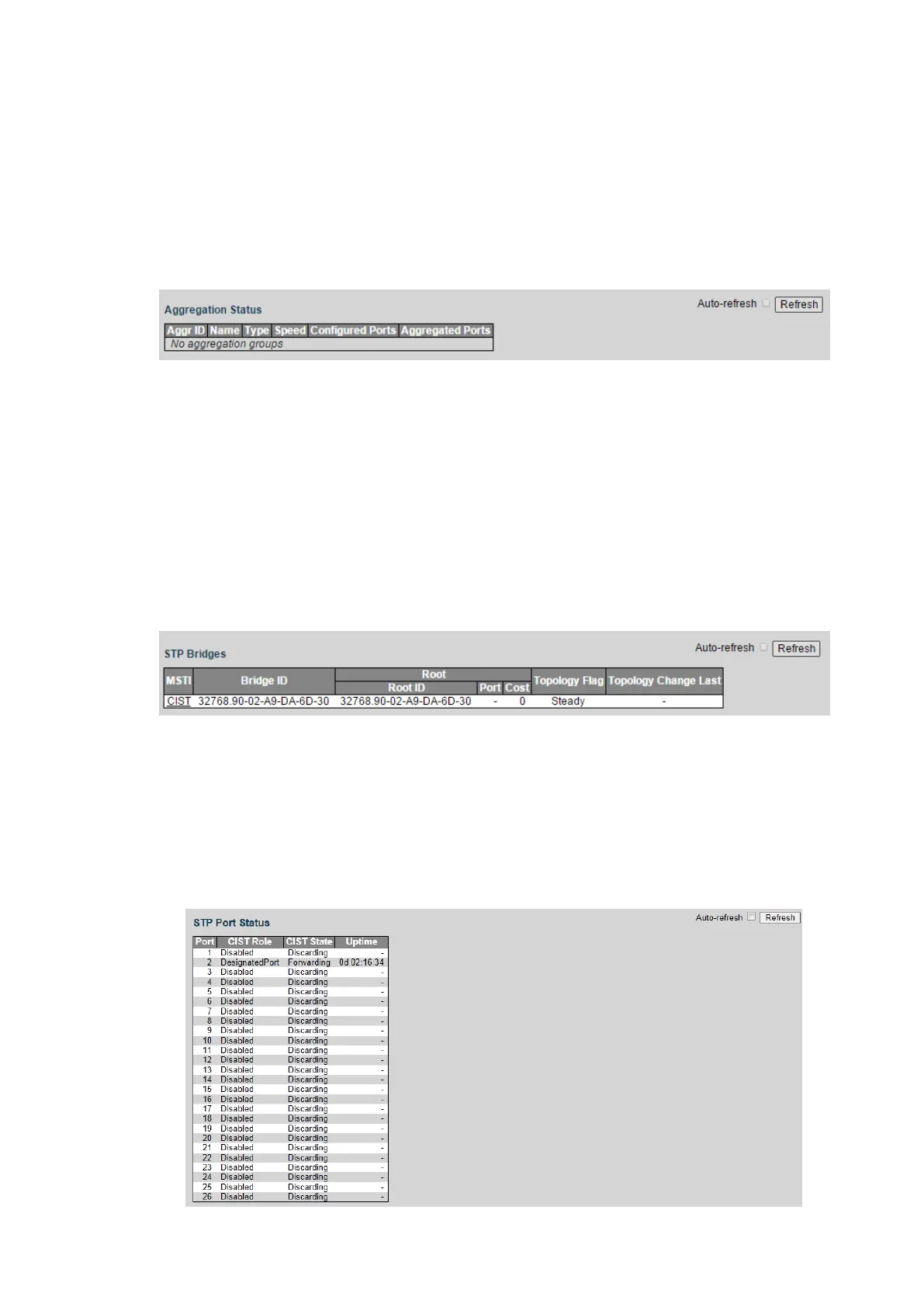

Select Advanced > Monitor > Aggregation > Static. The Aggregation Status interface is
displayed. See Figure 4-107.
Aggregation status Figure 4-107
4.2.6 Spanning Tree
4.2.6.1 Bridge Status
You can view the STP bridge status, including MSTI, bridge ID, root, topology flag, and topology
change last.
Select Advanced > Monitor > Spanning Tree > Bridge Status. The STP Bridge interface is
displayed. See Figure 4-108.
STP bridge Figure 4-108
4.2.6.2 Port Status
You can view the STP port status.
Select Advanced > Monitor > Spanning Tree > Port Status. The STP Port Status interface is
displayed. See Figure 4-109.
STP port status Figure 4-109
