3.2 Operation Switch Design
3-7

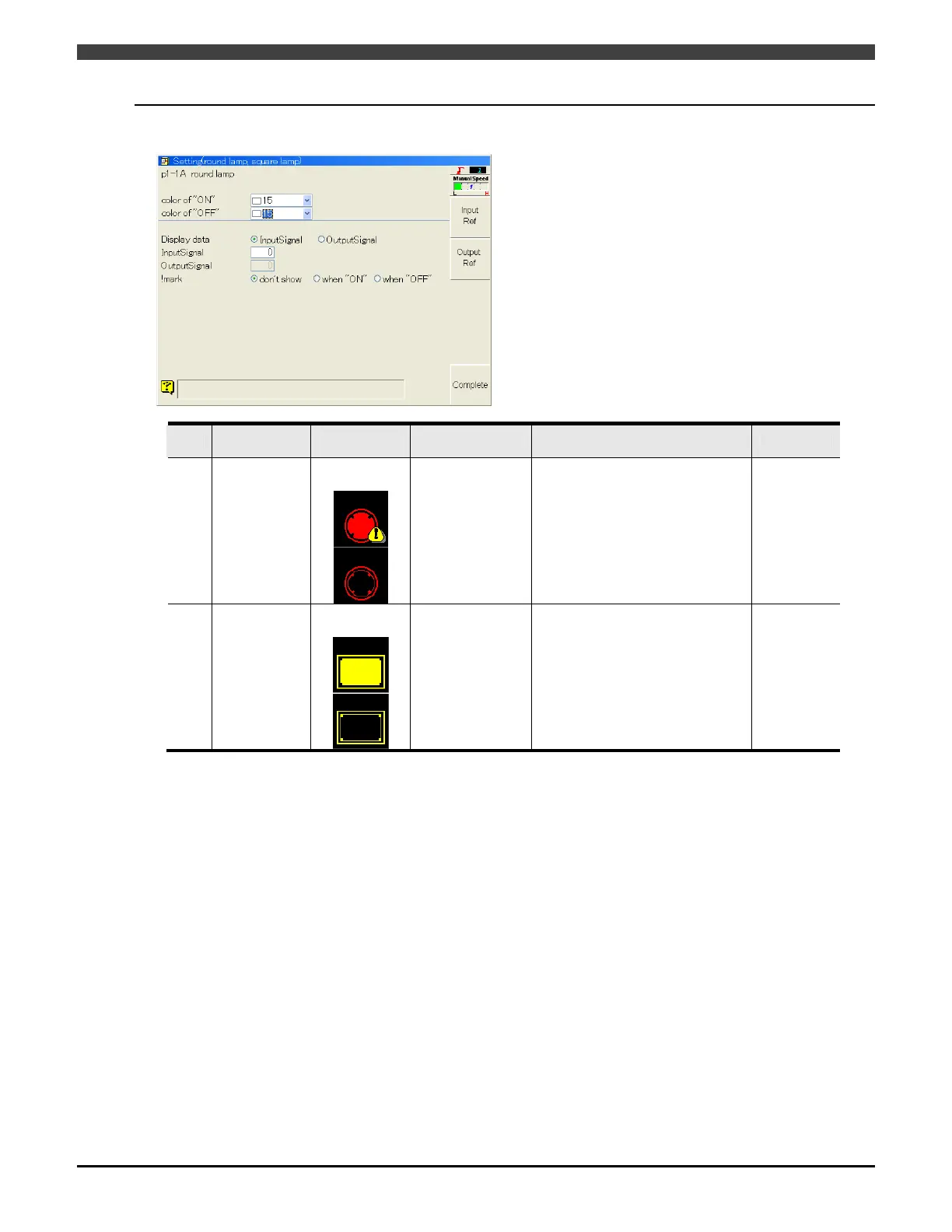

3.2.2 Round lamps and square lamps
[Details] setting screen
Code
Description
of function
External
appearance
Outline Parameter Initial value
3000 Round lamp
Top comes on.
Bottom goes off.
ON/OFF
display lamp
Color of "OFF"
Color of "ON"
Display data
Input signal/output signal
Input Signal 1bit [0~2048]
Output Signal 1bit [0~2048]
! mark
don't show/when "ON"/when "OFF"
White
White
Input signal
0
0
don't show
3001 Square lamp
Top comes on.
Bottom goes off.
ON/OFF
display lamp
(Same as above)
(Same as
above)
