3.2 Operation Switch Design
3-11

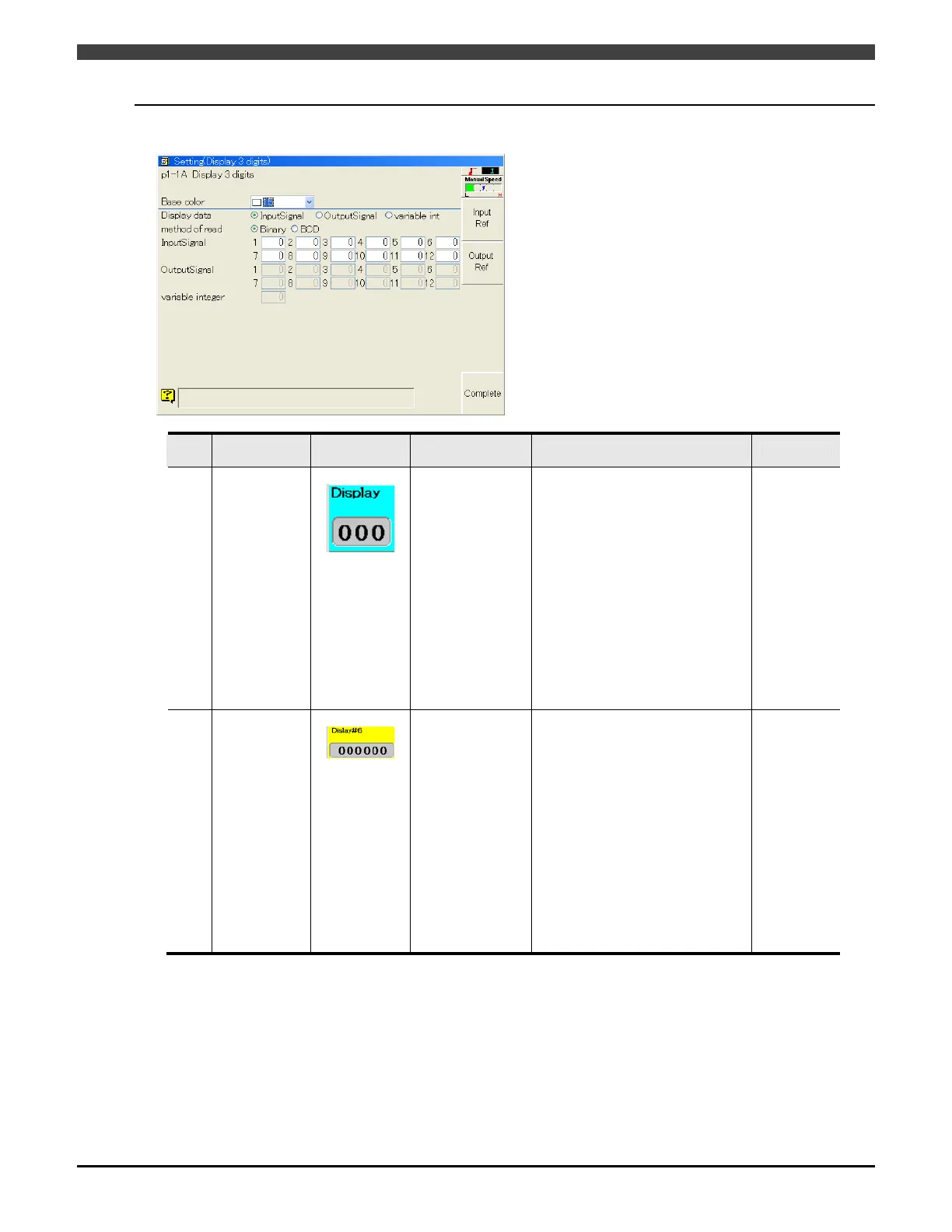

3.2.7 Displays
[Details] setting screen
Description
of function
External
appearance
Outline Parameter Initial valueCode
3020 Displays 3dgt This displays
input signals or
variable
integers.
Display range:
0 to 999
*** displayed
when numerical
value displayed
is not in display
range or if "0"
has been set for
all input/output
signals
Base color
Display data
Input Signal/Output Signal /
Variable Int
Method of read
Data format: Binary/BCD
Input Signal [0 to 2048]
12bit (1:LSB 12:MSB)
Output Signal [0 to 2048]
12bit (1: LSB 12: MSB)
Variable integer
Global variable only [0 to 200]
White
Input signal
Binary
All "0"
All "0"
0
Left
side:
3021
Right
side:
13021
Displays 6dgt
2 blocks
which are
side by side
occupied
This displays
input signals or
variable
integers.
Display range:
0 to 999999
****** displayed
when numerical
value displayed
is not in display
range or if "0"
has been set for
all input/output
signals
(Input signals: 24 bits; No. of
display digits: 6; otherwise same
as above)
(Same as
above)
