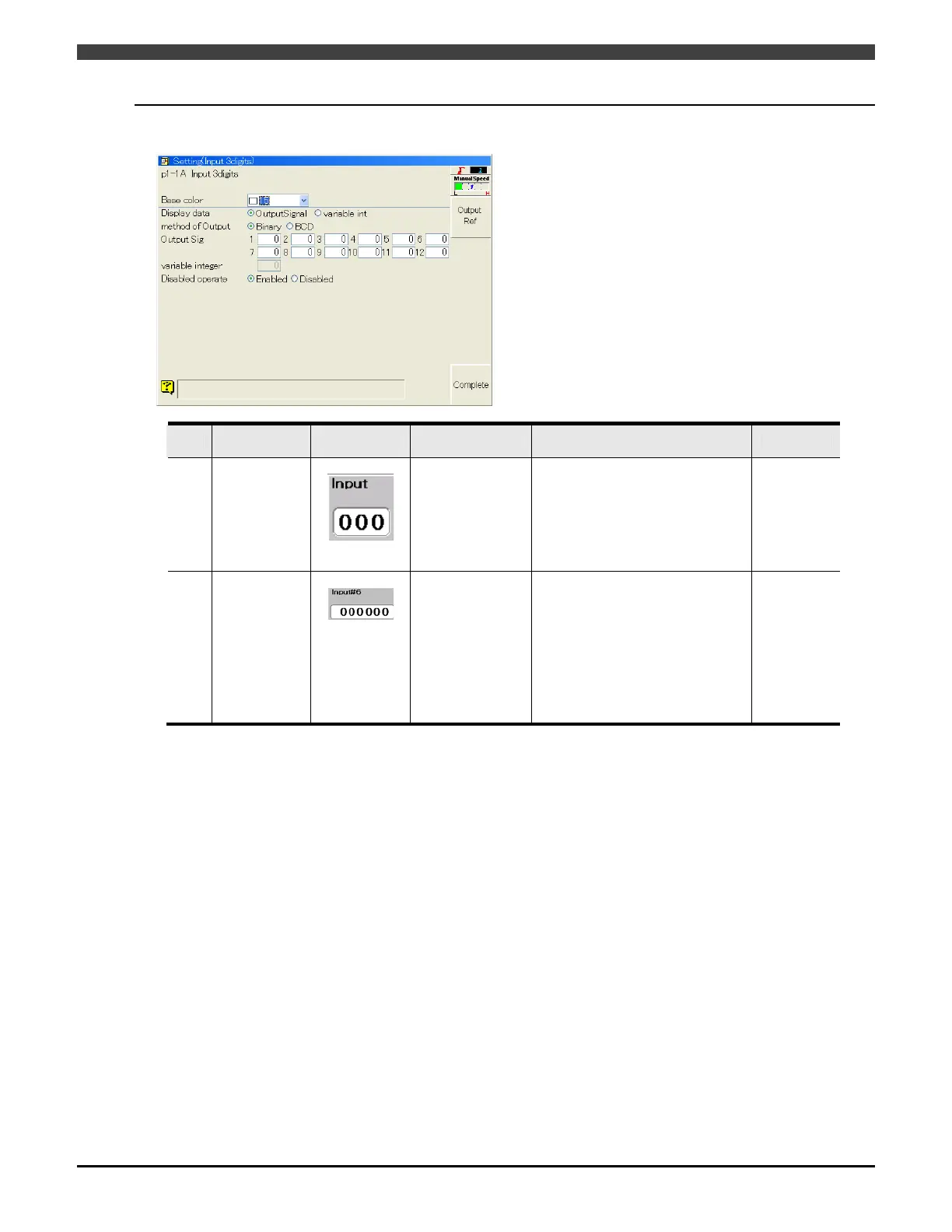

3.2 Operation Switch Design
3-12
3.2.8 Digital switches (data input)
[Details] setting screen
Code
Description
of function
External
appearance
Outline Parameter Initial value
3030 Input 3digits
This reflects the
values input by
the operator in
the output
signals.
Input range:
0 to 999
Base color
Method of Output: Binary/BCD
Output Signal [0 to 2048]
12bit (1: LSB 12: MSB)
Operation inhibit
Enabled/Disabled
White
Binary
All "0"
Enabled
Left
side
3031
Right
side
13031
Input 6digits
2 blocks
which are
side by side
occupied
This reflects the
values input by
the operator in
the output
signals.
Input range:
0 to 999999
(Output signals: 24 bits; No. of
display digits: 6; otherwise same
as above)
(Same as
above)
