PCBs Si041256

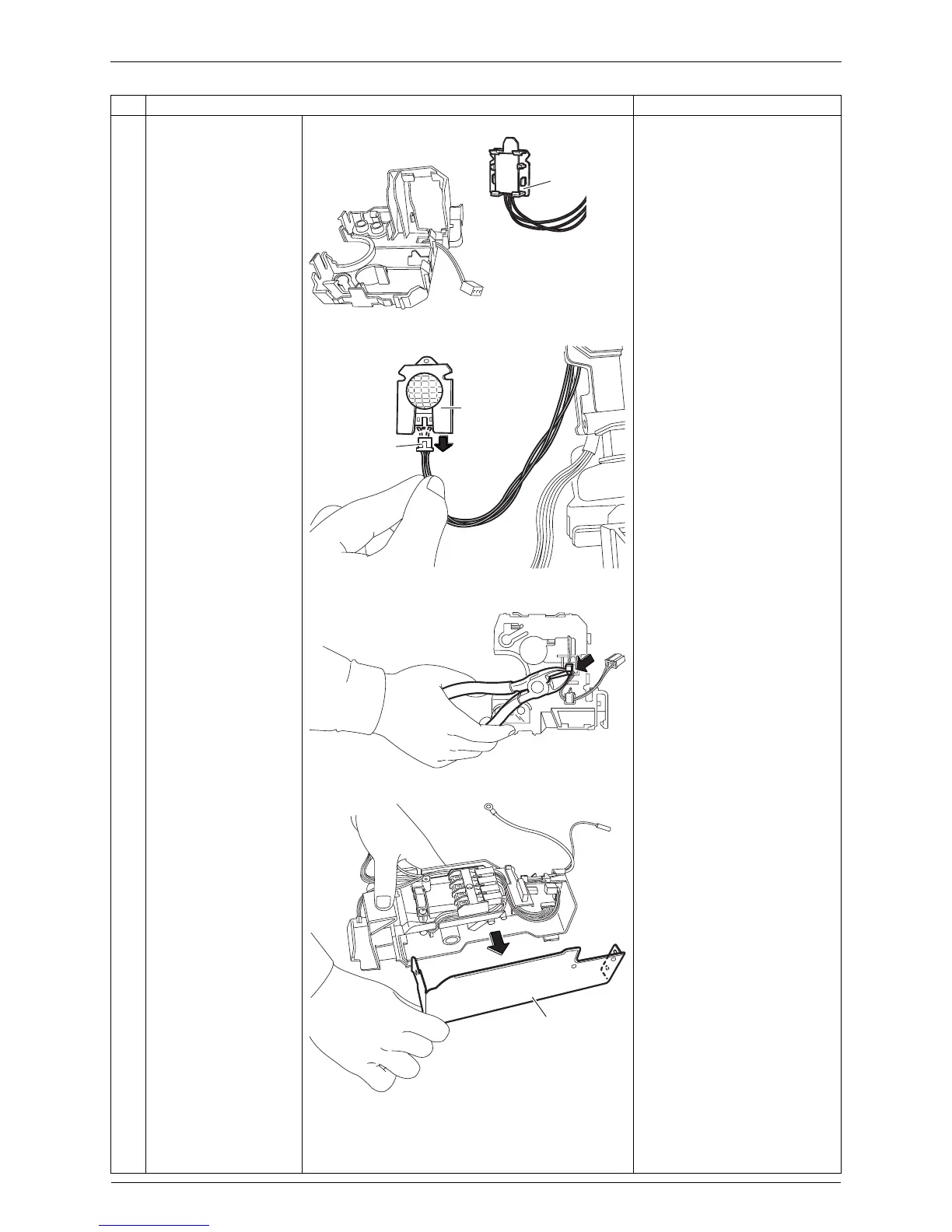

14 Removal Procedure
6
Remove the sensor
ASSY.
7
Disconnect the
connector [S36] from
the INTELLIGENT EYE
sensor PCB.
8
Cut the clamp.
9
Remove the shield
plate.
Step
Procedure Points
(R18173)
Sensor
ASSY
[S36]
(R18234)
INTELLIGENT
EYE sensor PCB
(R12129)
Shield plate
(R12130)
