Si041256 PCBs

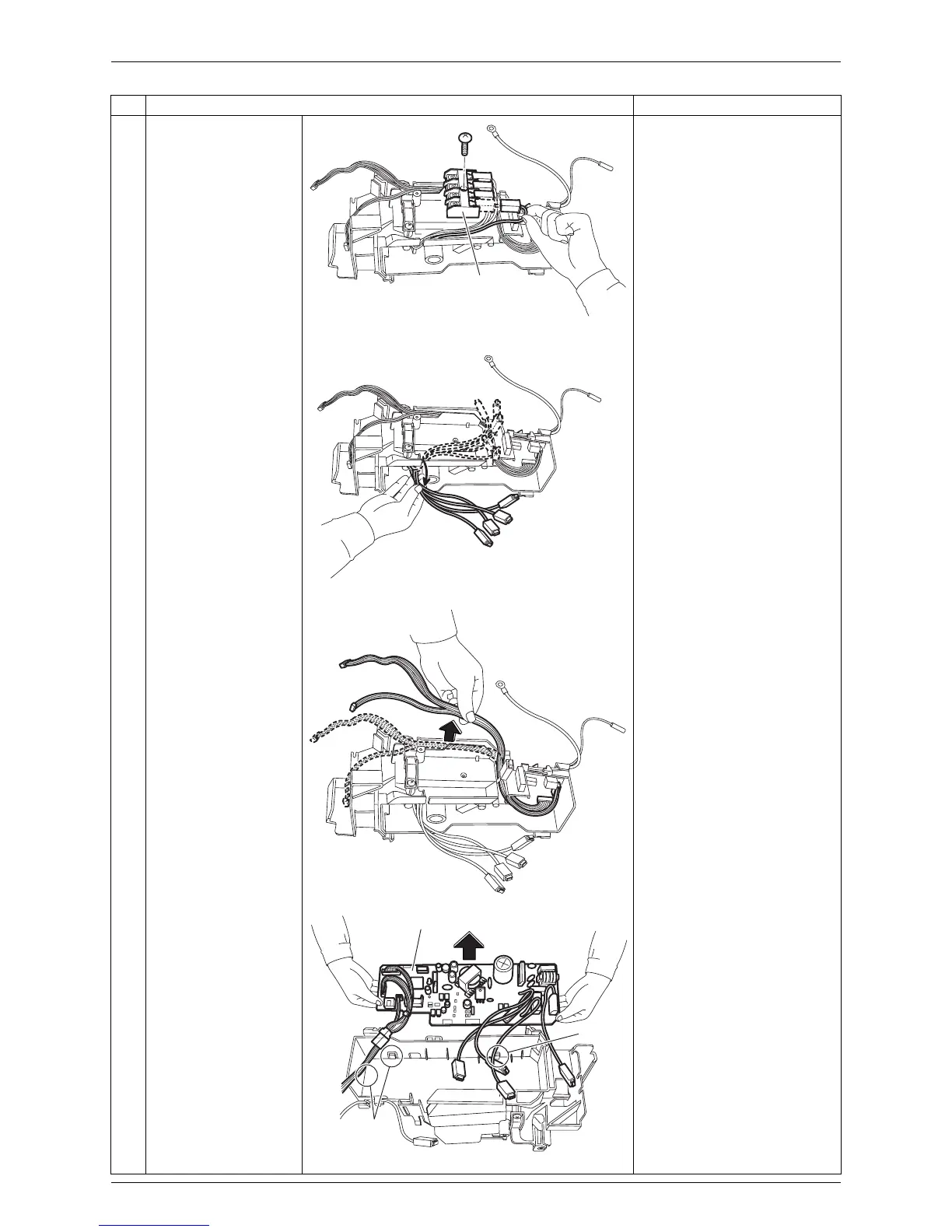

Removal Procedure 15
10
Remove the screw of
the terminal board.
11
Pull out the terminals
and remove the
terminal board.
12
Release the harnesses
from the groove.
13
Release the harnesses
of the signal receiver /
display PCB.
r
14
Unfasten the 3 hooks
and remove the control
PCB.
Step
Procedure Points
(R18174)
Terminal board
(R12133)
(R12134)
(R18175)
Control PCB
Hook
Hook
