3 | Components
Service manual
238
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

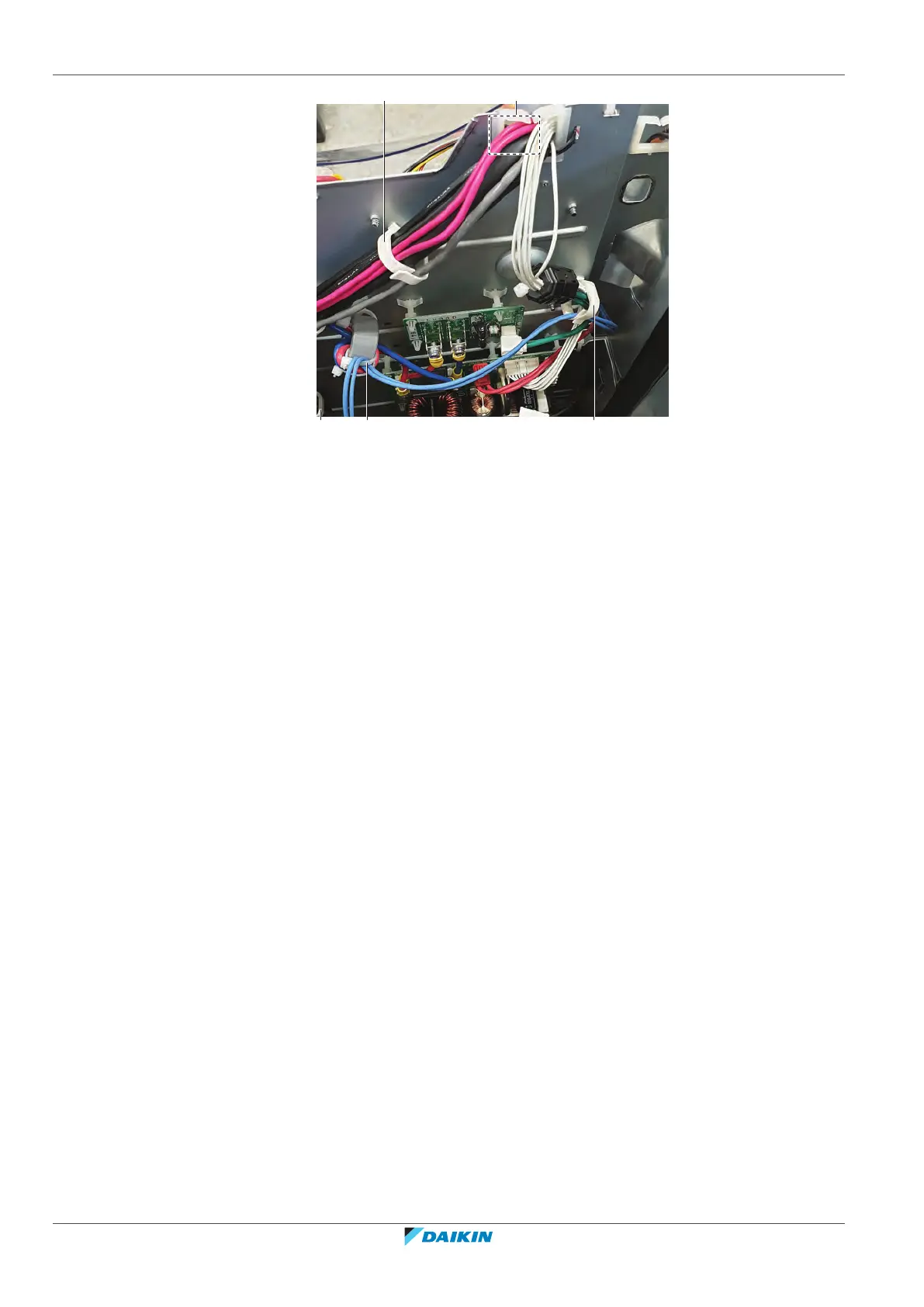

a Wiring to be routed through the hole towards front of switch box
b Wire clip
c Wire clip (4‑way valve wiring harness)
d Tie strap (4‑way valve wiring harness)
9 Route the 4‑way valve wiring harness through the wire clip and through the
hole towards the front of the switch box.
10 Install a new tie strap to fix the 4‑way valve wiring harness.
11 Route the high pressure switch / compressor thermal protector wiring harness
through the hole towards the front of the switch box.
12 Connect the compressor thermal protector connector.
13 Connect the compressor wiring to the main PCB using the screws.
14 Route the DC fan motor harness inside the wire clip on the switch box.
