Daikin EBLA16DA3V3 Service Manual

3 | Components
Service manual
280
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
b
b
d
c
a
a

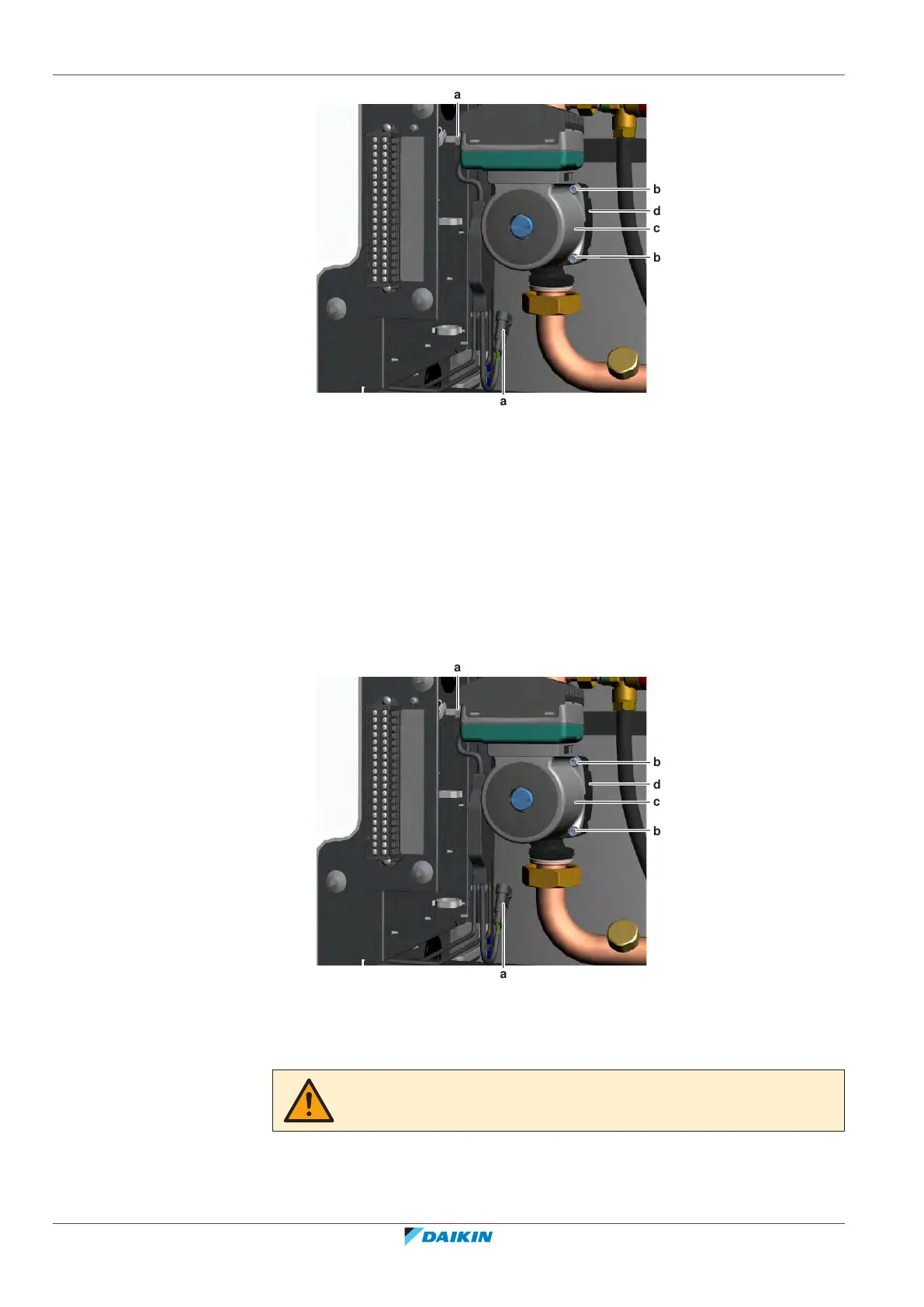

a Connector
b Bolt
c Water pump motor
d Pump housing
2 Remove the 4 bolts that fix the water pump motor to the pump housing.
3 Separate the water pump motor from the pump housing.
4 Remove the water pump motor.
5 To install the water pump motor, see "3.24.2Repair procedures"[4279].
To install the water pump motor
1 Install the motor on the water pump housing.
b
b
d
c
a
a
a Connector
b Bolt
c Water pump motor
d Pump housing
CAUTION
Make sure to correctly install the water pump motor and the seal.
Fix the water pump motor by tightening the 4 bolts.
2 Connect the connectors to the water pump motor.
