90
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
4 Cut all tie straps that fix the 3‑way valve motor harness.

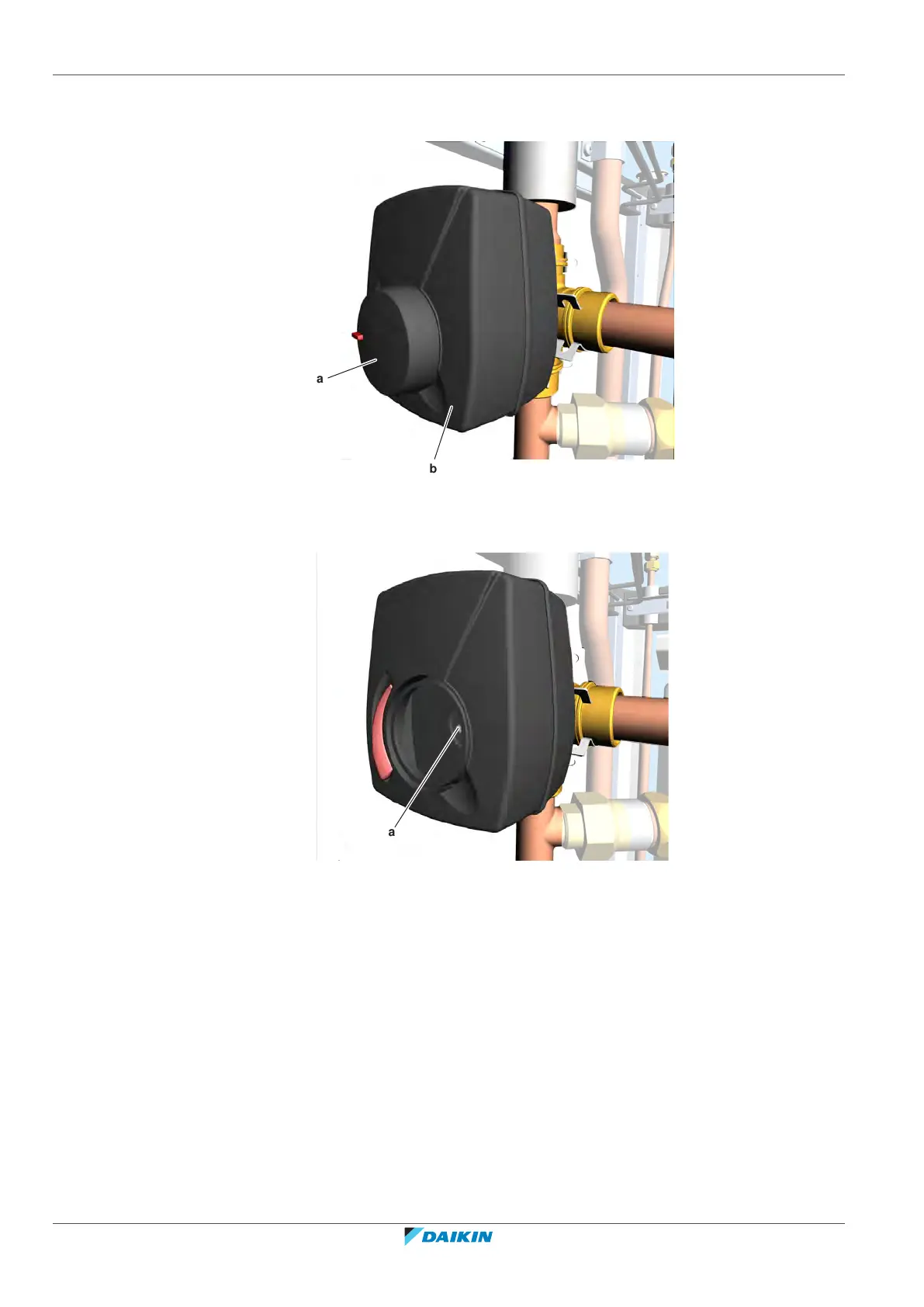

5 Pull the 3-way valve knob and remove it from the 3‑way valve motor.
a
b
a 3-way valve knob
b 3-way valve motor
6 Loosen the screw.
a
a Screw
7 Remove the 3‑way valve motor from the 3‑way valve body.
8 To install the 3‑way valve motor, see "3.1.2Repair procedures"[489].
To remove the 3-way valve body
Prerequisite: Remove the 3‑way valve motor, see "3.1.2Repair procedures"[489].
1 Drain water from the water circuit, see "4.3.2Repair procedures"[4302].
2 Remove the insulation that covers the 3‑way valve body.
3 Remove the 3 clips that fix the 3‑way valve body to the piping.
