3 | Components
Service manual
91
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
a
a
a
b

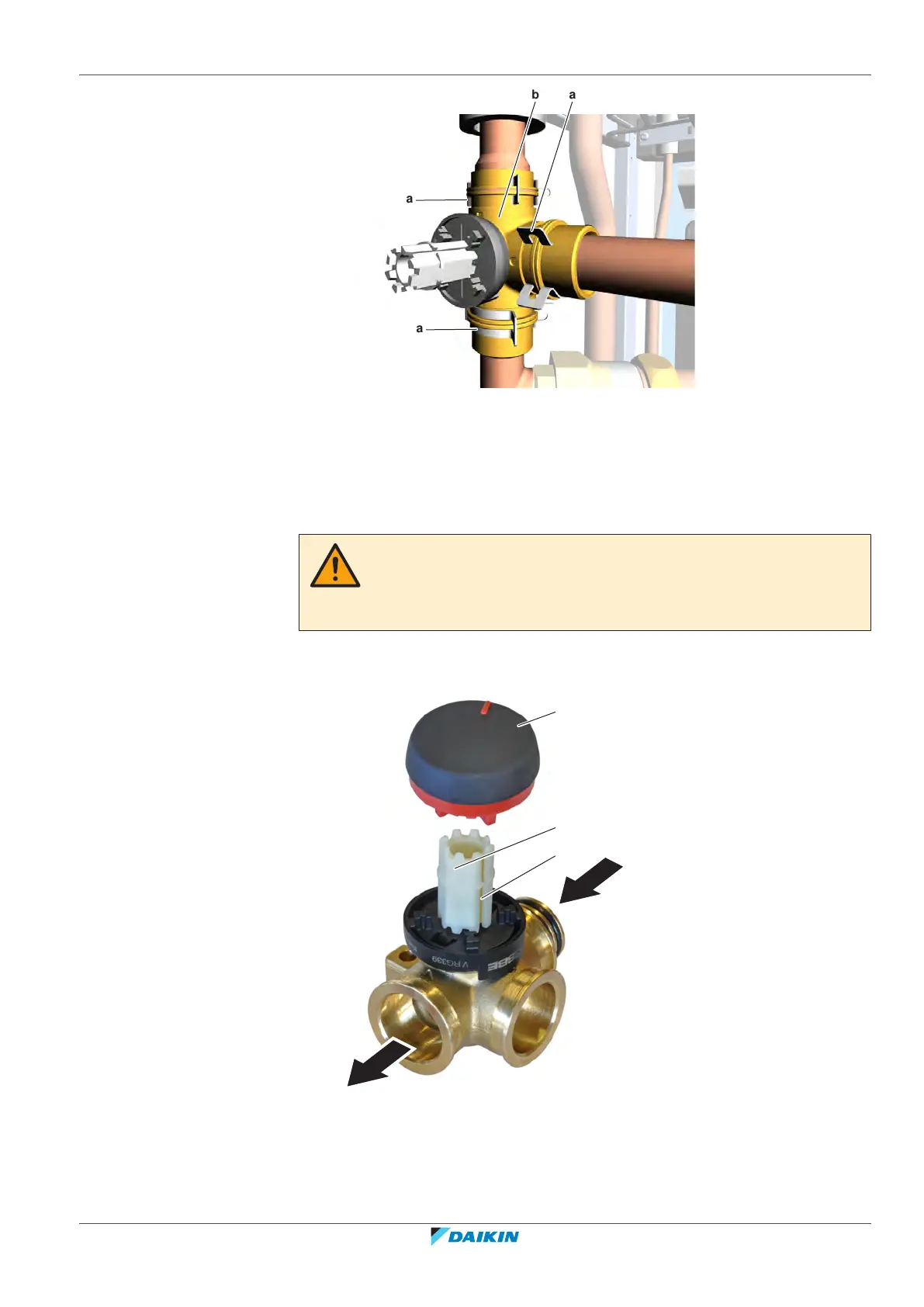

a Clip
b 3-way valve body
4 Remove the 3‑way valve body.
5 To install the 3‑way valve body, see "3.1.2Repair procedures"[489].
To install the 3-way valve body
CAUTION
Make sure the 3‑way valve body axle is aligned with the 3‑way valve motor when
installing the 3‑way valve motor on the 3‑way valve body.The 3‑way valve motor is
shipped with the 3‑way valve knob in the central position.
1 Check the position of the notch in the 3‑way valve body axle.
a
e
c
d
