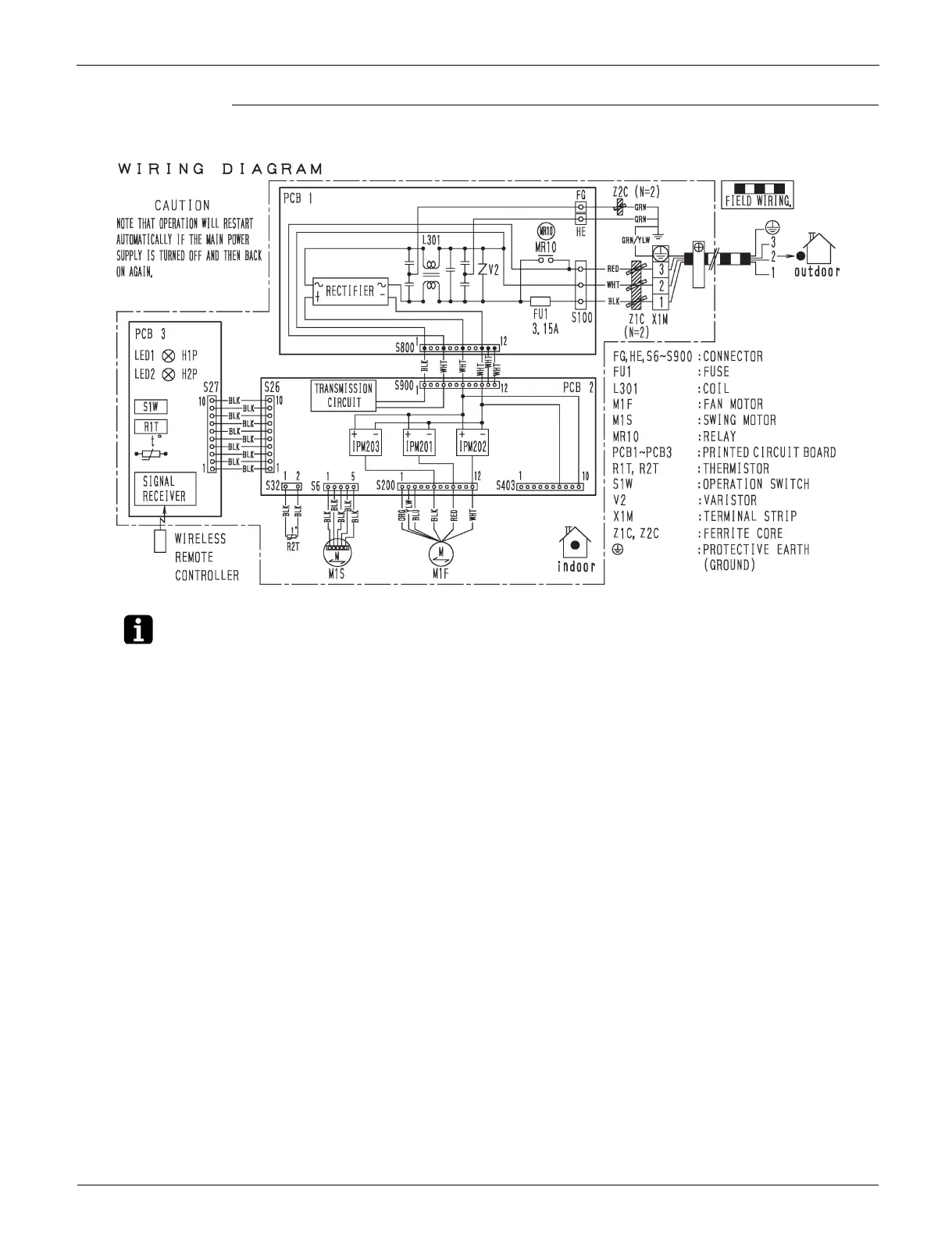

Wiring Diagrams SiUS091601EA
227 Part 8 Appendix
Note(s)
FTX15NMVJU
PCB1: Filter PCB
PCB2: Control PCB
PCB3: Display/signal receiver PCB
Refer to page 24 for Printed Circuit Board Connector Wiring Diagram.
3D090199B
