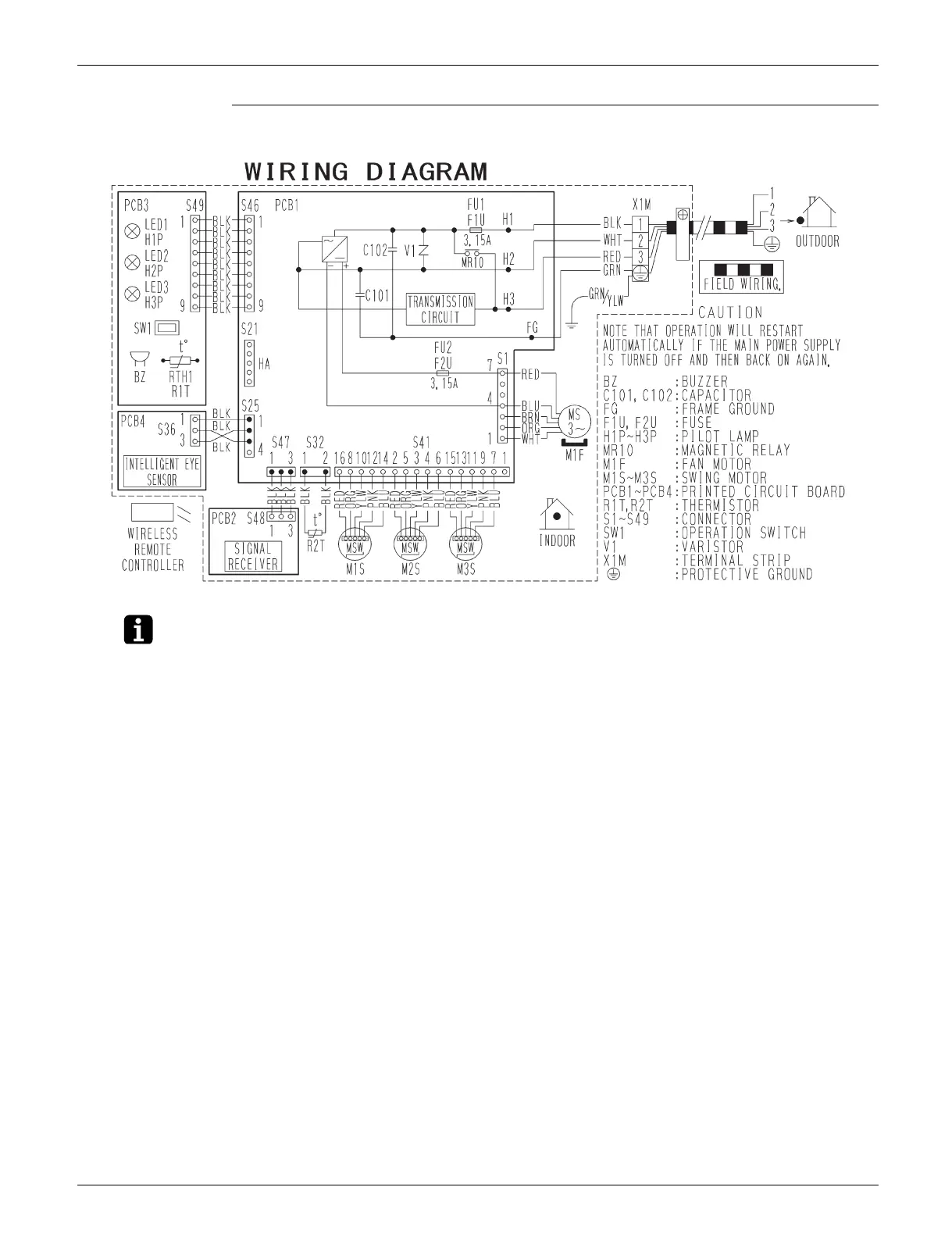

SiUS091601EA Wiring Diagrams
Part 8 Appendix 228
Note(s)
FTX18/24UVJU
PCB1: Control PCB
PCB2: Signal receiver PCB
PCB3: Display PCB
PCB4: INTELLIGENT EYE sensor PCB
Refer to page 26 for Printed Circuit Board Connector Wiring Diagram.
C: 3D060942W
