Daikin FTY35GXV1 User Manual

SiBE01-829 Indoor Unit
Removal Procedure 65

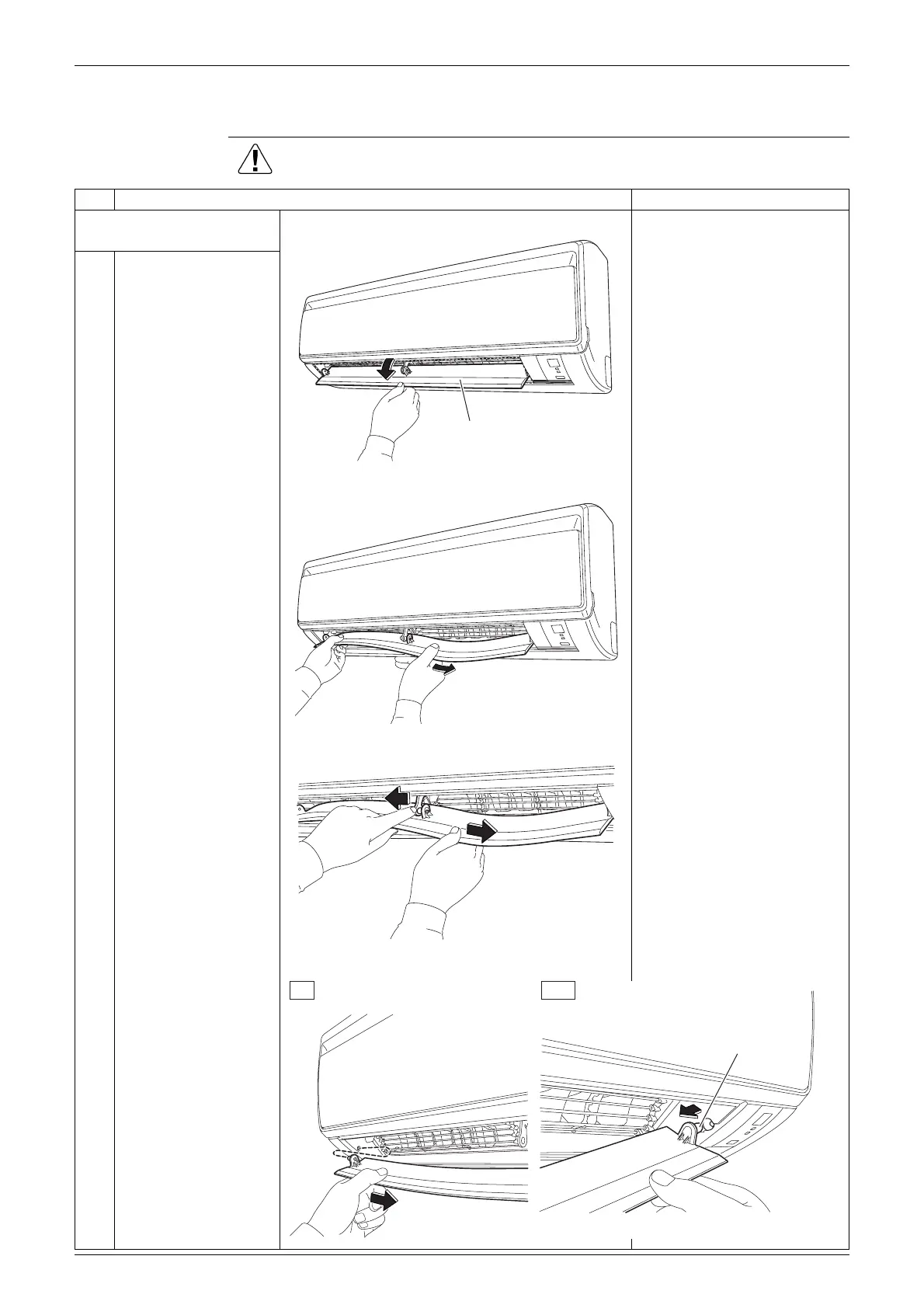

1.4 Removal of Horizontal / Vertical Blades and Safety Net
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Removing the horizontal
blade (large)
1
Open the horizontal
blade.
2
Unfasten the center
fixing shaft while
bending the horizontal
blade slightly.
Cautions on Mounting

The center fixing shaft can
be removed easily by
bending the blade.
Cautions on Mounting
1. Since key pattern hook is
provided, rotate the blades
and fit it to the right pivot
first.
2. Fit the blades to the center
and left pivots.
3
Unfasten the left fixing
shaft of the horizontal
blade.
4
Unfasten the right fixing
shaft of the horizontal
blade.
(R8580)
Horizontal blade
(R8581)
(R7993)
(R7995)
Key
Left
Right
