Indoor Unit SiBE01-829
72 Removal Procedure
1.6 Removal of PCB / Swing Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

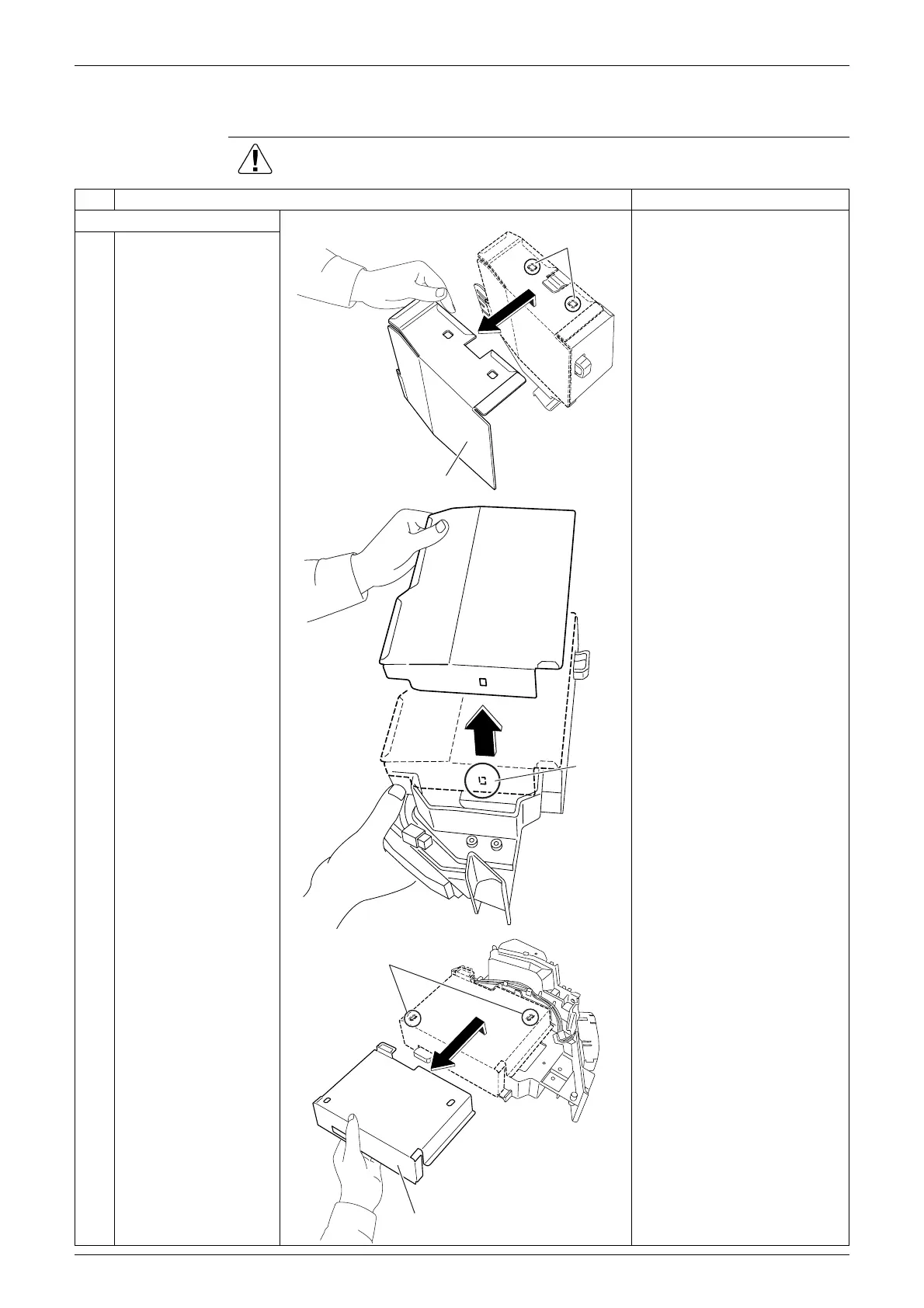

1. Removing the shelter Preparation
Remove the electrical box
according to the “Removal
of Electrical Box”.
1
To remove the shelter
(1), unfasten the hooks
at the upper 2 positions
of the shelter.
2
Unfasten the hook at
the lower position, and
remove the shelter (1).
3
Lift the shelter (2) and
unfasten the 2 hooks.
4
Slide the shelter (2),
and remove.
(R8603)
Hooks
Shelter (1)
Hook
(R8604)
(R8605)
Hooks
Shelter (2)
