Daikin LXE10E-A - Optional Devices; Electronic Temperature Recorder; Standard Type

CAUTION
Do not move the pen forcibly
5-1
(1) Specifications
● Model DER9601A
● Power supply AC13V 50/60Hz
● Recording temperature range –30.0 to +25.0 °C
(–22 to +77˚F)
● Chart paper Round type 8-inch pressure-
sensitive paper
[PARTLOW PSD-217C
(REV.A) or equivalent]
(31days/rev.)
● Battery
Battery life
Approx. 1 year (Check with the residual
voltage indicator)
● Residual voltage indicator (optional)
Green zone : Operable
Silver zone : Usable for 7 days
Red zone : Replace battery
● Recording pen driving system
Pulse motor drive
● Sensor (Thermistor)
5. OPTIONAL DEVICES
The following optional devices are available for
some models. As for other options, see Chapter 8
in the SUPPLEMENTARY MANUAL.
5.1 Electronic temperature recorder
5.1.1 Standard type
This recorder automatically records the control
temperature (either return air temperature or supply
air temperature) with the chilled/partial frozen and
frozen switching signals from the controller. The
faulty sensor detection function and calibration
function are integrated for maintenance and
inspection.
Recording Accuracy ˚C
temperature range Recorder Sensor Total
25˚C to 10˚C ±1.0 ±1.0 ±2.0
10˚C to –15˚C ±0.5 ±0.3 ±0.8
–15˚C to –29.9˚C ±1.0 ±1.0 ±2.0
Model Use
ST9503-4 RSS: For supply air temperature recording
ST9503-2 RRS: For return air temperature recording
Note : Recording accuracy
The accuracy of the recorder and the
sensor are shown in the following
table.
The adjustment with calibration is
applicable only on the recorder.

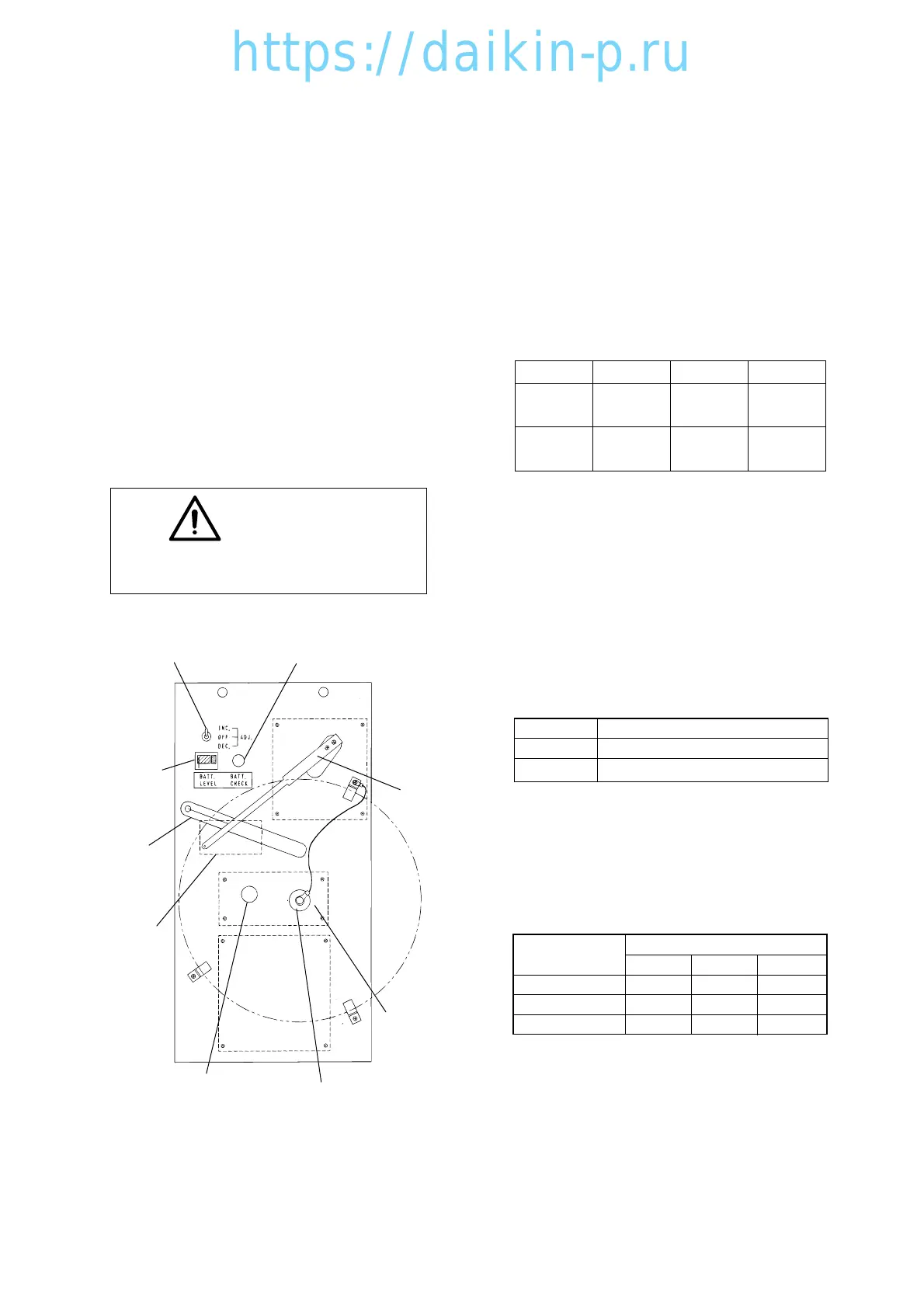

q Calibration switch
w Battery check button
e Residual
voltage
indicator
r Pen lift arm
t Dry battery
y Rotation check window
uChart nut
i Chart
drive
o Pen
Use Type Specification Standard
Chart drive
R14P
(SUM-2)
DC1.5 V
U2 (C size) type
JISC8501
IEC60086
Recording pen
goes to upper
end of the chart
6LR61 DC9V
JISC8511
IEC60086
05-LXE10E-A(1-7)07.2.2310:29AMページ5-1
