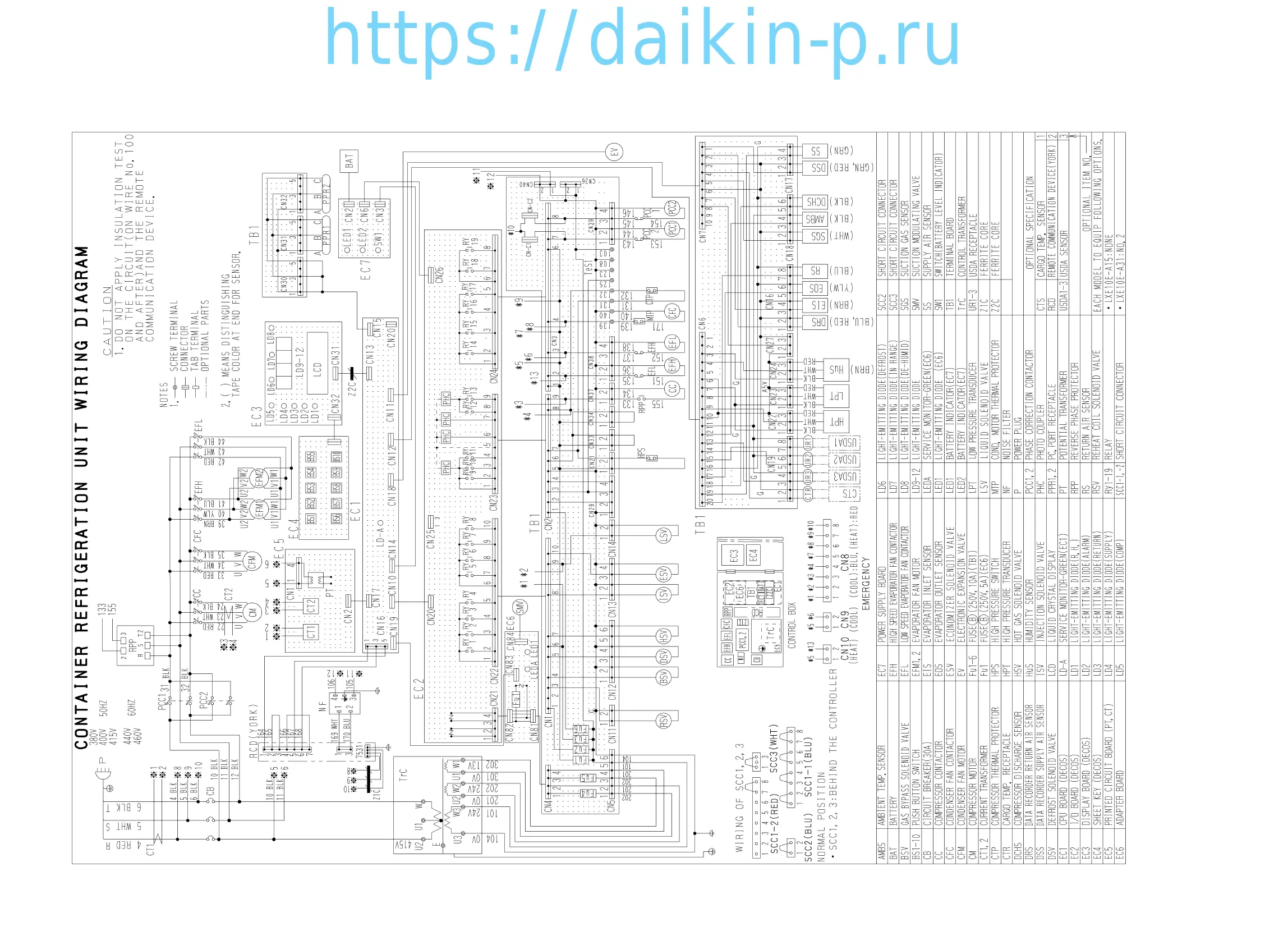

7.13 Schematic wiring diagram (Connector type terminal board and rechargeable battery)
7-9
07LXE10E-A(9-14)07.2.191:49PMページ7-9
