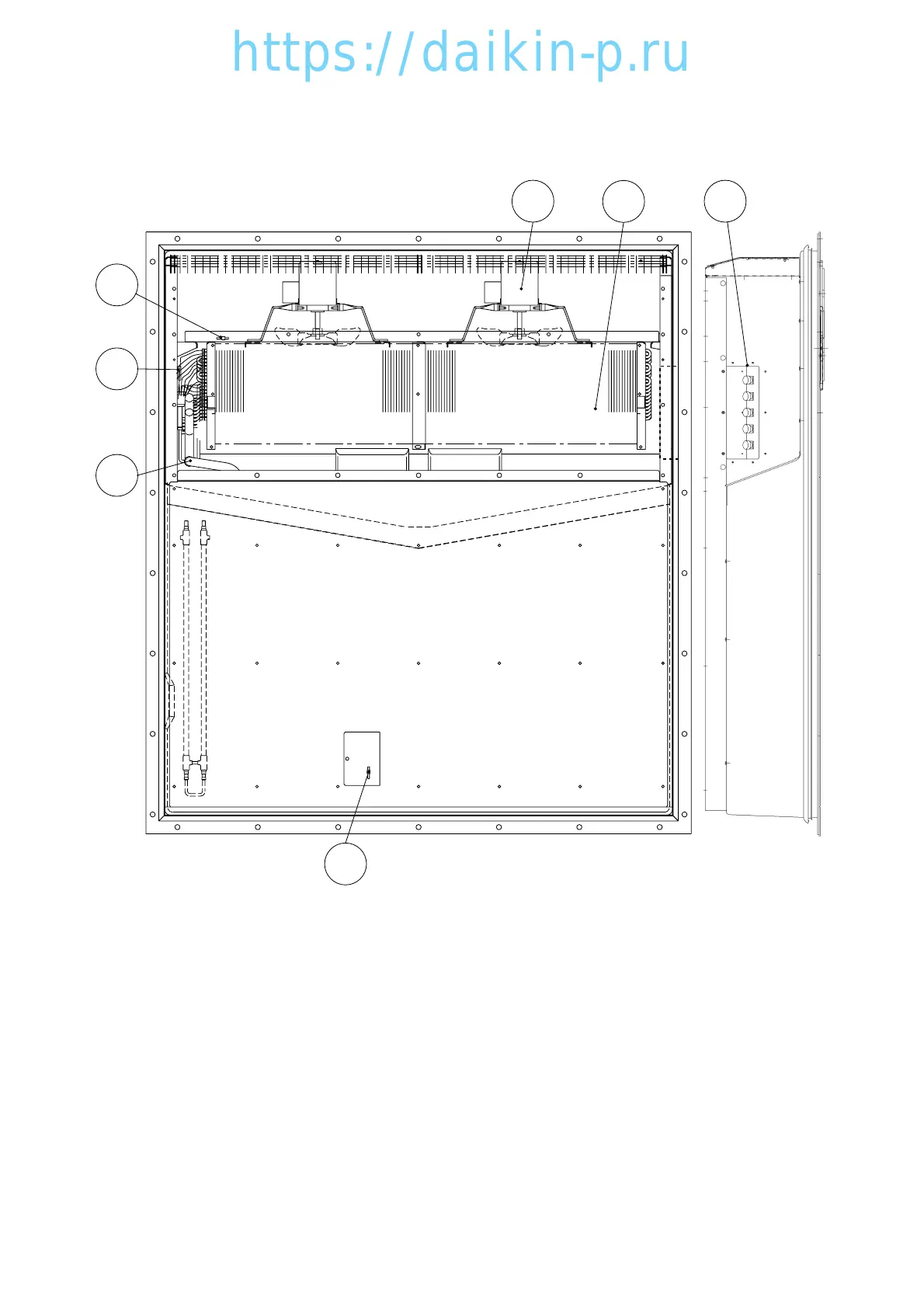

2.2.2 Inside
●LXE10E
q Evaporator fan motor (EFM)
w Evaporator
e Supply air temperature sensor (SS)
Data recorder supply air temperature sensor (DSS, optional)
Recorder supply air temperature sensor (RSS, optional)
r Evaporator outlet pipe temperature sensor (EOS)
t Evaporator inlet pipe temperature sensor (EIS)
y Return air temperature sensor (RS)
Data recorder return air temperature sensor (DRS, optional)
Recorder return air temperature sensor (DRS, optional)
u USDA receptacle (optional)
7
6
2
3
1
5
4
