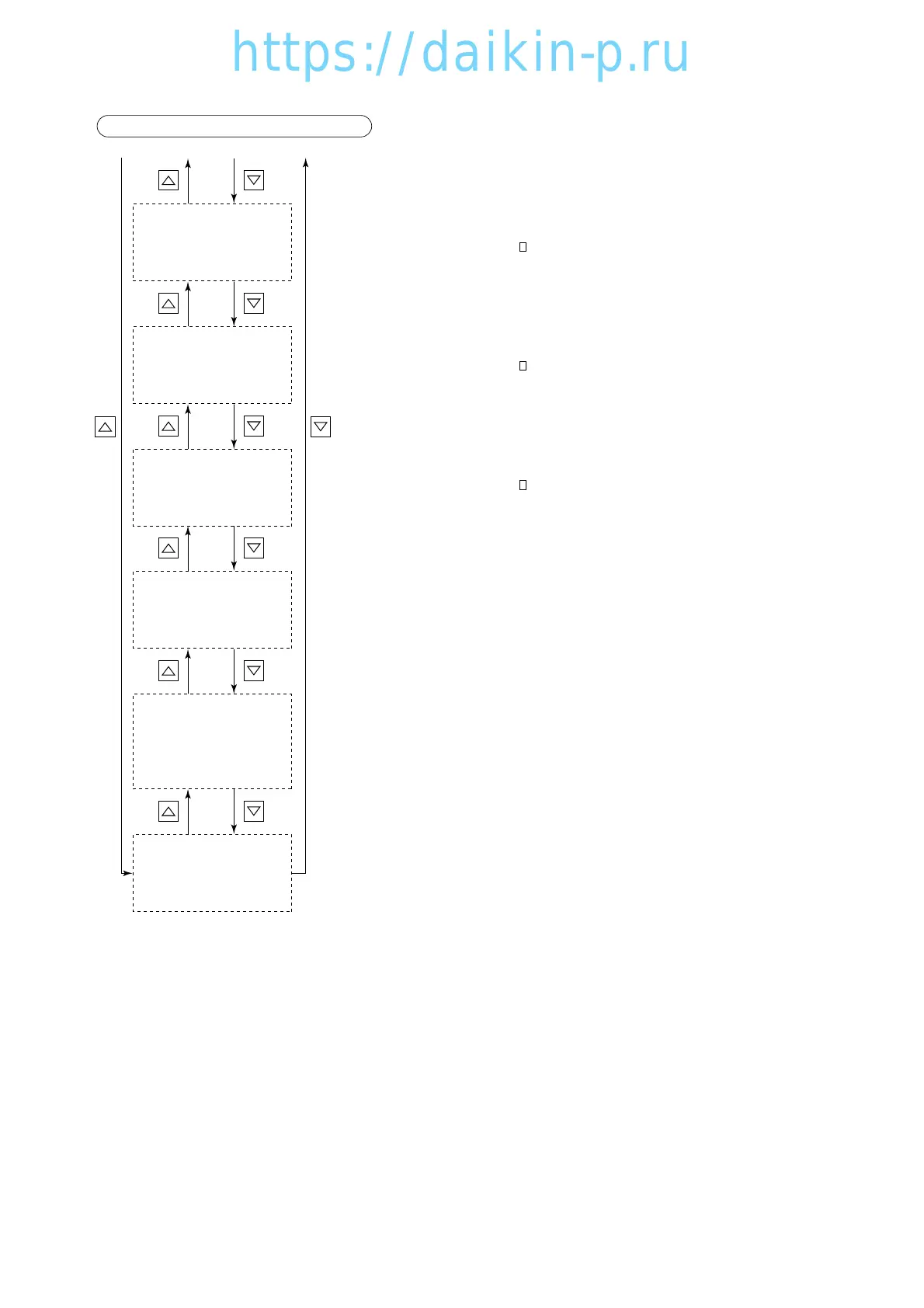

LED: The control temperature is displayed.
LCD: The pulp temperature is displayed.
The display reads: " US C".
(In ˚C or ˚F.)
LED: The control temperature is displayed.
LCD: The pulp temperature is displayed.
The display reads: " US C".
(In ˚C or ˚F.)
LED: The control temperature is displayed.
LCD: The pulp temperature is displayed.
The display reads: " US C".
(In ˚C or ˚F.)
LED: The control temperature is displayed.
LCD: The pulp temperature is displayed.
The display reads: "CS C".
(In ˚C or ˚F.)
LED: The control temperature is displayed.
LCD: The return air temperature for data recorder is displayed.
The display reads: "dS C".
(In ˚C or ˚F.)
LED: The control temperature is displayed.
LCD: The supply air temperature for data recorder is displayed.
The display reads: "dR C".
(In ˚C or ˚F.)
3
2
1
PULP TEMPERATURE
SENSOR 1
(USDA 1)
(optional)
PULP TEMPERATURE
SENSOR 2
(USDA 2)
(optional)
PULP TEMPERATURE
SENSOR 3
(USDA 3)
(optional)
CARGO TEMPERATURE
SENSOR
(CTS)
(optional)
SUPPLY AIR
TEMPERATURE FOR
DATA RECORDER
(DSS)
(optional)
RETURN AIR
TEMPERATURE FOR
DATA RECORDER
(DRS)
6. SENSOR INDICATION MODE (continued)
