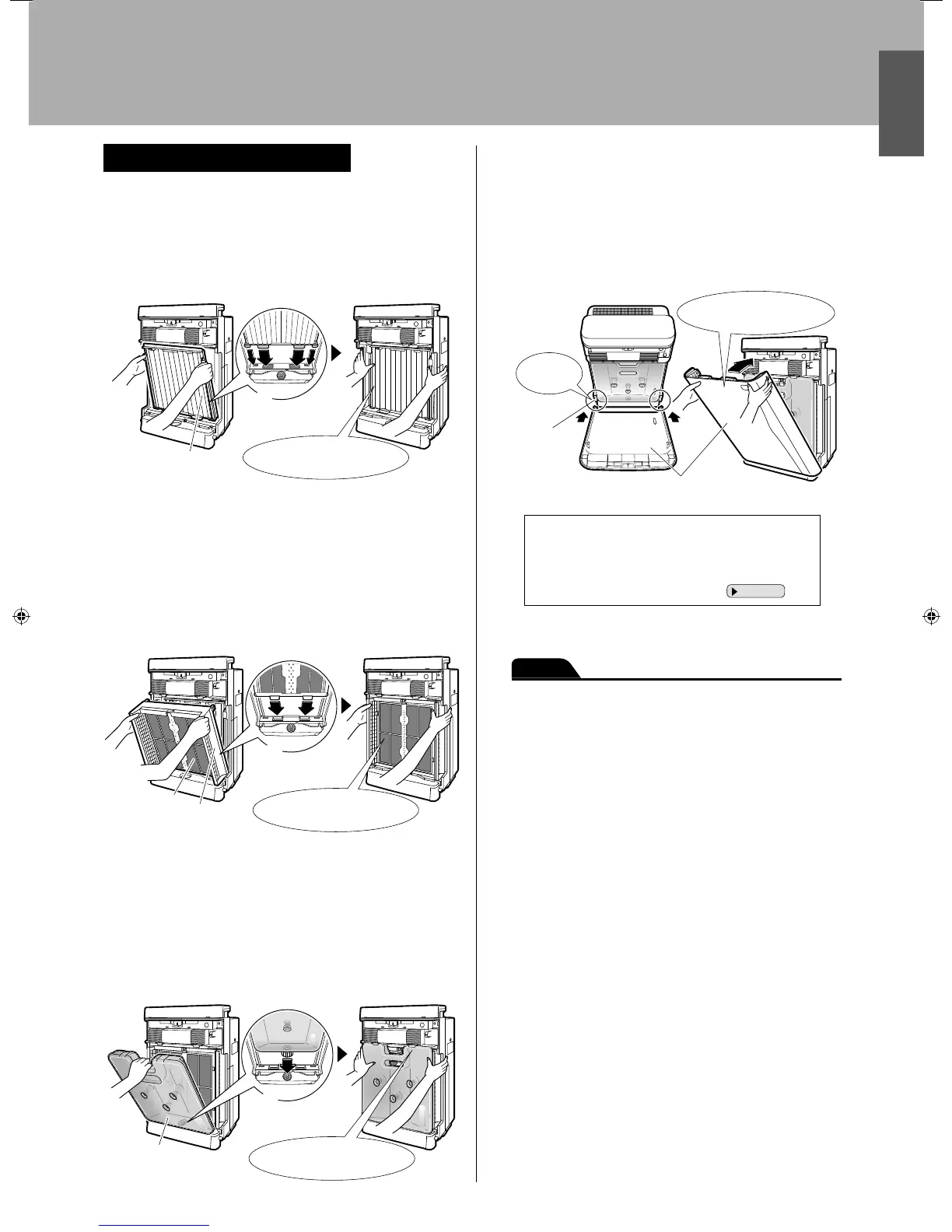

After attaching the fi lter
1
Restore the deodorizing catalyst unit.
Holding the deodorizing catalyst unit by the handle, fi t the •
projections on the unit into the grooves (4
locations
) at the
bottom of the main unit and press the deodorizing catalyst
unit into the main unit.
(1)
Fit here.
(2)Press inward until
hearing clicking sound.
Deodorizing catalyst unit
2
Restore the UNIT1.
Holding UNIT1 by the handle, fi t the projections on the unit •
into the grooves (2
locations
) at the bottom of the main
unit, and press UNIT1 into the main unit.
UNIT1
Pre-filter
(1)
Fit here.
(2)Press inward until
hearing clicking sound.
3
Restore the water tank.
Holding the water tank by the handle, fi t the tank into the •
hole at the bottom of the main unit, and press the tank into
the main unit.
Water tank
(1)
Fit here.
(2)Press inward until
hearing clicking sound.
4
Restore the front panel.
Fit the tabs (2•
locations
) at the bottom of the panel into the
grooves at the bottom of the main unit, and close the
panel.
Bottom grooves
(2 locations)
[View from above]
Front
anel
(2)Press inward until
hearing clicking sound.
(1)
Fit here.
To correctly restore the front panel, press the
front panel until hearing the clicking sound from
the left and right sides.
Unless properly installed, a safety switch may trip
and prevent the unit from starting.
Page 27.
NOTE
Always run the unit with both a pre-fi lter (green) and pleated ●
fi lter (front: white, back: blue).
Running the unit without both fi lters may lead to damage.
01_EN_3P234570-1.indd 1801_EN_3P234570-1.indd 18 10/28/2008 12:02:42 PM10/28/2008 12:02:42 PM
