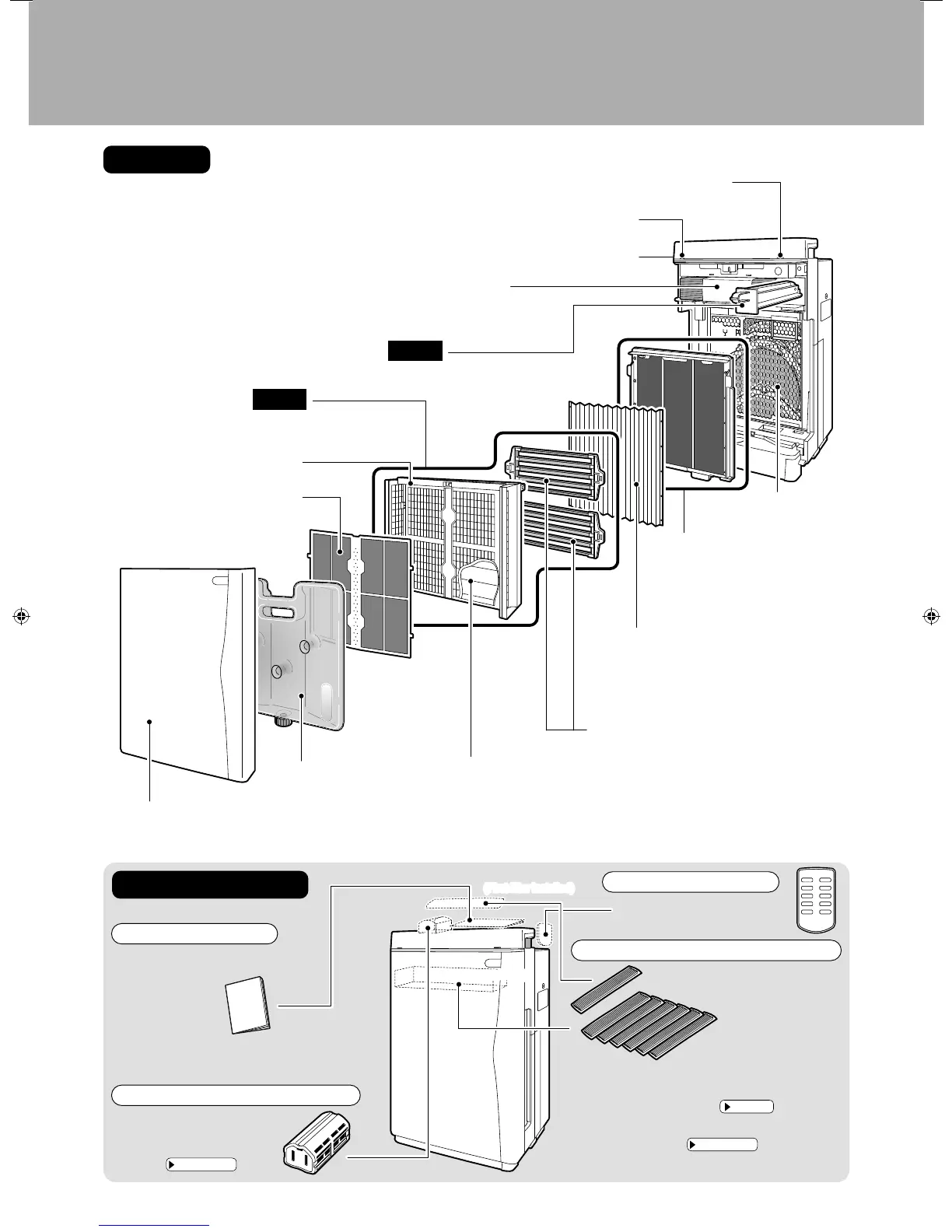

Deodorizing catalyst unit
Absorbs airborne odors and
harmful gases using a deodorizing
catalyst (black), and decomposes
them by streamer action.
Pre-filter
(green)
Removes large dust particles.
Pleated filter
(front: white, back: blue)
Absorbs dust particles using the principle
of static electricity.
Small dust particles which are not captured by the pre-filter are positively charged
to that they can be more easily absorbed by the negatively-charged pleated filter.
Ionizing frame
Ionized wire (Rear)
Water tank
Front panel
Filter container
Holds 6 replacement pleated filters.
Safety guard
Odor sensor
Dust sensor
Humidity sensor · Temperature sensor
(First filter installed)
(Replacement filters) (Replacement filters)
Pleated filter 7pcs.
• 1pc. (Inside box)
• 6pcs. (Filter container)
Remote controller
Inside cushion
Filter container / Inside box
Operation manual
Recyclable deodorizing
cartridge
1pc.
Inside cushion
Inside box
Accessories check
Opposing pole plates
Main unit
(Plasma ionizer)
(Streamer unit)
UNIT2
UNIT1
Page 30, 31.
Page 23, 24.
Page 16.
