Daikin VRV IV-S RXTQ60TAVJU User Manual

Functional Parts Layout SiUS331604E
13 Refrigerant Circuit

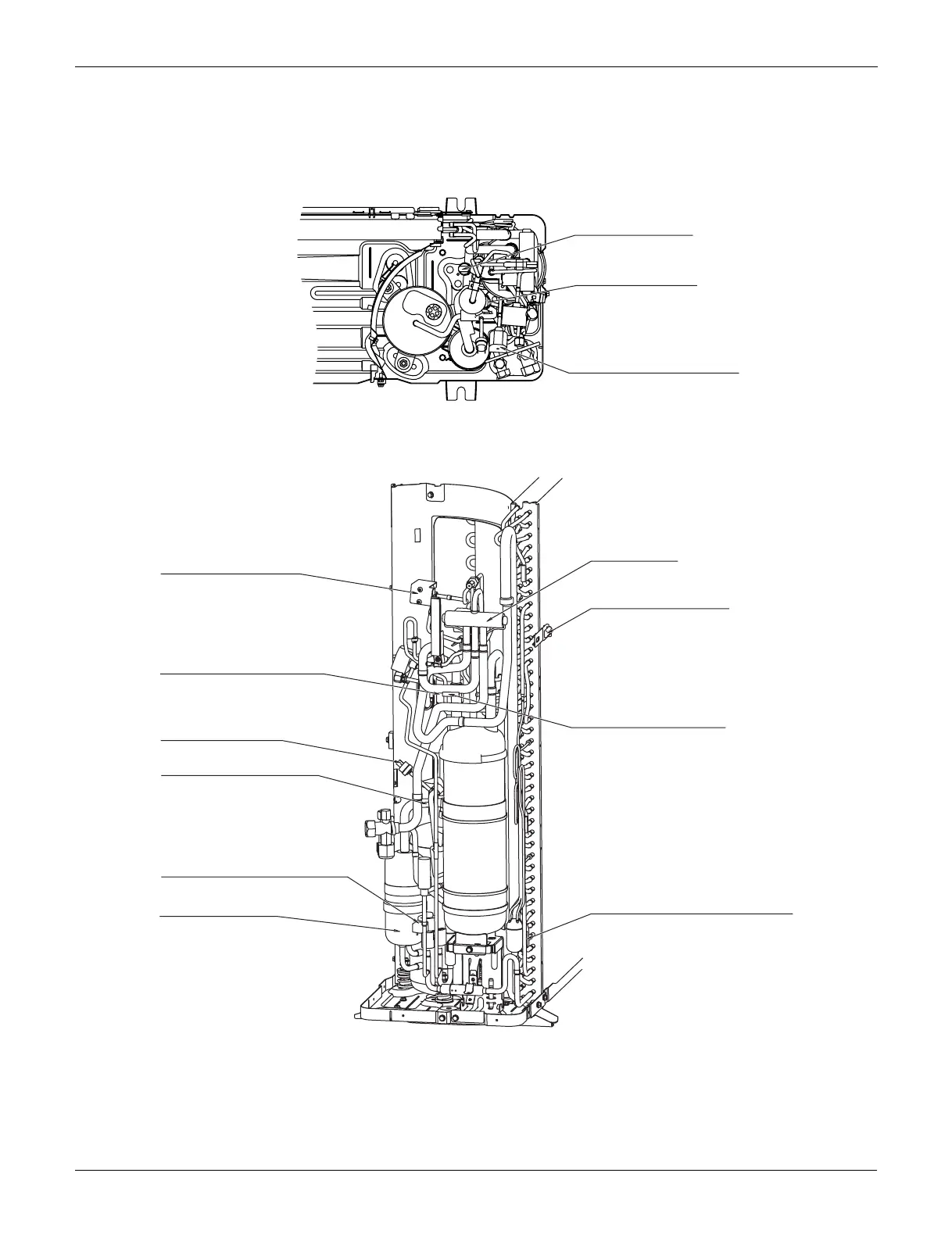

2. Functional Parts Layout
2.1 RXTQ36TAVJU
Top view
Front view
Low pressure sensor
(S1NPL)
Solenoid valve (Unload circuit)
(Y3S)
High pressure sensor
(S1NPH)
Thermistor (Discharge pipe)
(R2T)
Thermistor (Suction pipe 2)
(R5T)
Thermistor (Suction pipe 1)
(R3T)
Electronic expansion valve (Main)
(Y1E)
Inverter compressor
(M1C)
Solenoid valve (Hot gas)
(Y2S)
High pressure switch
(S1PH)
Thermistor (Outdoor air)
(R1T)
Four way valve
(Y1S)
Thermistor (Heat exchanger deicer)
(R4T)

Daikin VRV IV-S RXTQ60TAVJU Specifications

General

Category	Heat Pump
Model	RXTQ60TAVJU
Energy Efficiency Ratio (EER)	3.48
Refrigerant	R410A
Power Supply	50 Hz
Operating Temperature (Heating)	-15 to 20 °C
