5.7 Sample disk Installation

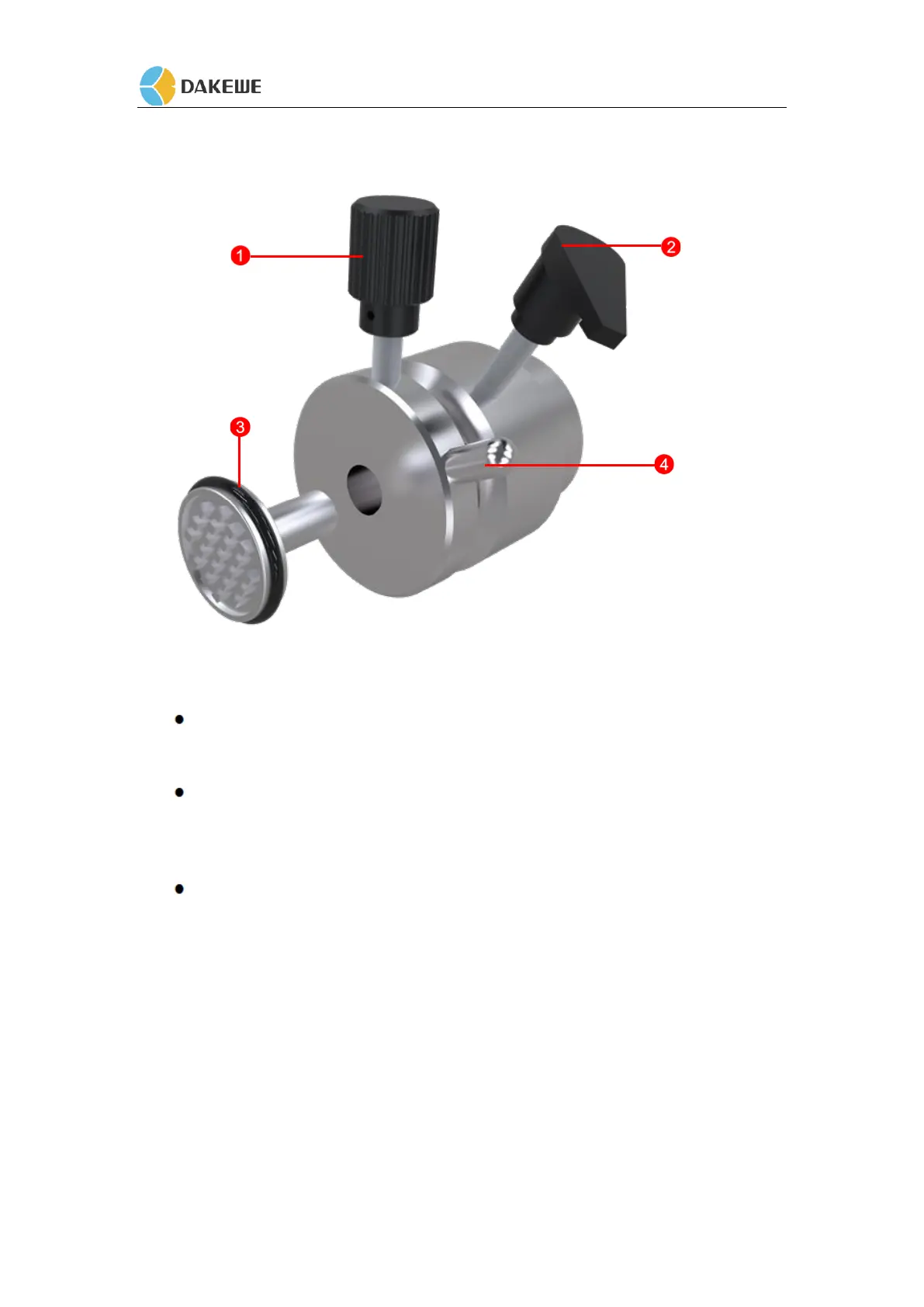

1. Sample disk locking screw 2.Clamp head locking screw
3. Sample disk 4. Card head adjustment handle
Place the handle of the hand wheel at the highest position, push the hand wheel lock lever
into the bottom of the hand wheel groove to fix the hand wheel and lock the card core to
the highest position.
After the tissue on the carrier head is frozen, the shaft of the carrier head is inserted into the
hole in the center of the chuck core, so that the rear surface of the carrier head is in close
contact with the front surface of the chuck core, and the rotation of the carrier head set
screw will be It is locked to the front of the card core.
Loosen the head adjustment lock screw on the core of the chuck, and move the head
adjustment handle to adjust the direction of the surface of the specimen, tighten it after
selection.
