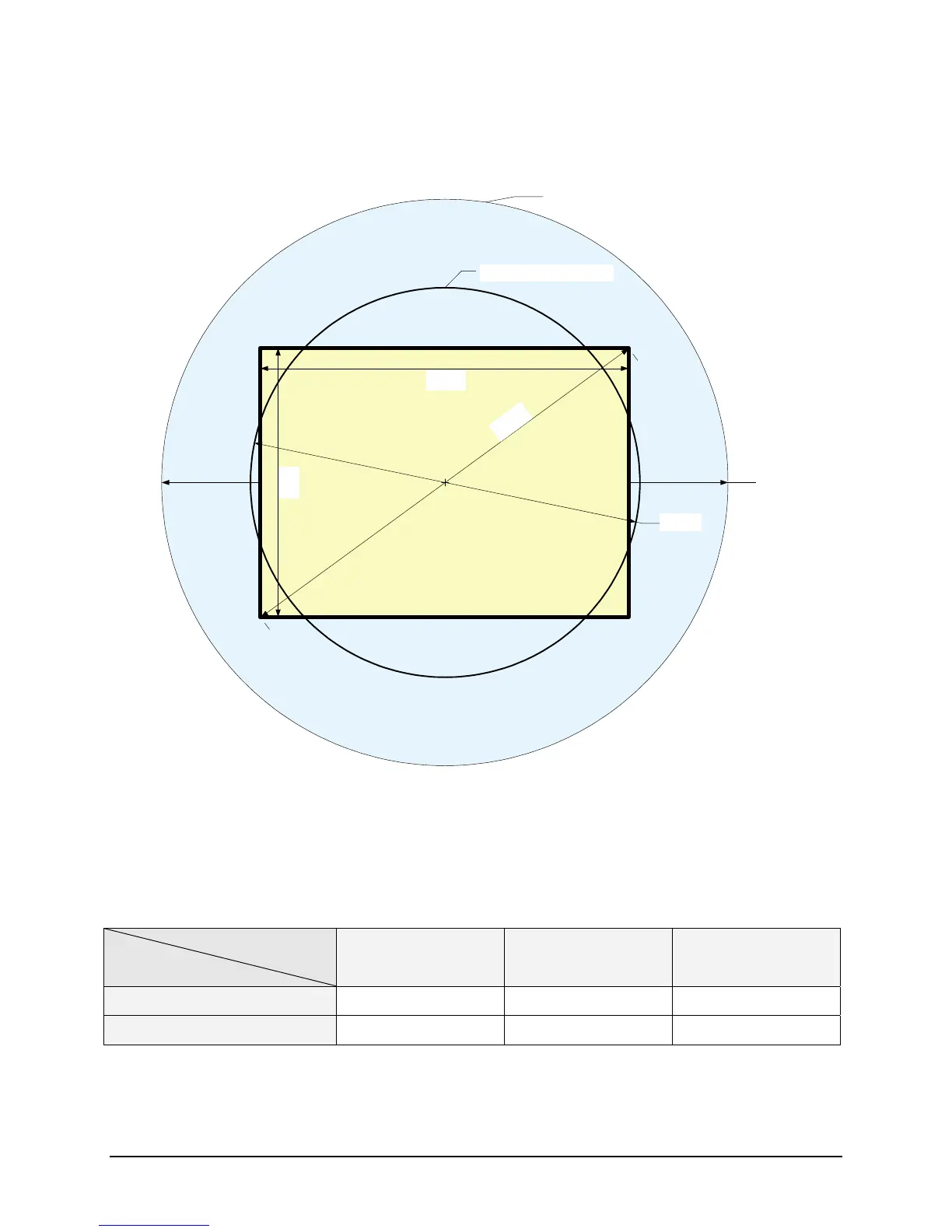

Comparison of a 2/3 Inch and 1 Inch Lens used with a Genie HM 1400
Ø16.00
7.60
10.40
1
2
.
8
8
Genie HM 1400 Sensor
Ø11.00
1 inch Lens Coverage
2/3 inch Lens Coverage
Lens Sensor Size vs. Genie HM model
Each Genie HM sensor has a square pixel of 7.4 x 7.4 µm. The following table lists the lens size required for total
illumination and the next smaller lens size which will have some vignetting.
Genie Model
Illumination Coverage
Genie HM 1400 Genie HM 1024 Genie HM 640
Complete Illumination 1 inch Lens 2/3 inch Lens 1/3 inch Lens
Some Vignetting 2/3 inch Lens 1/1.8 Lens 1/4 inch Lens
