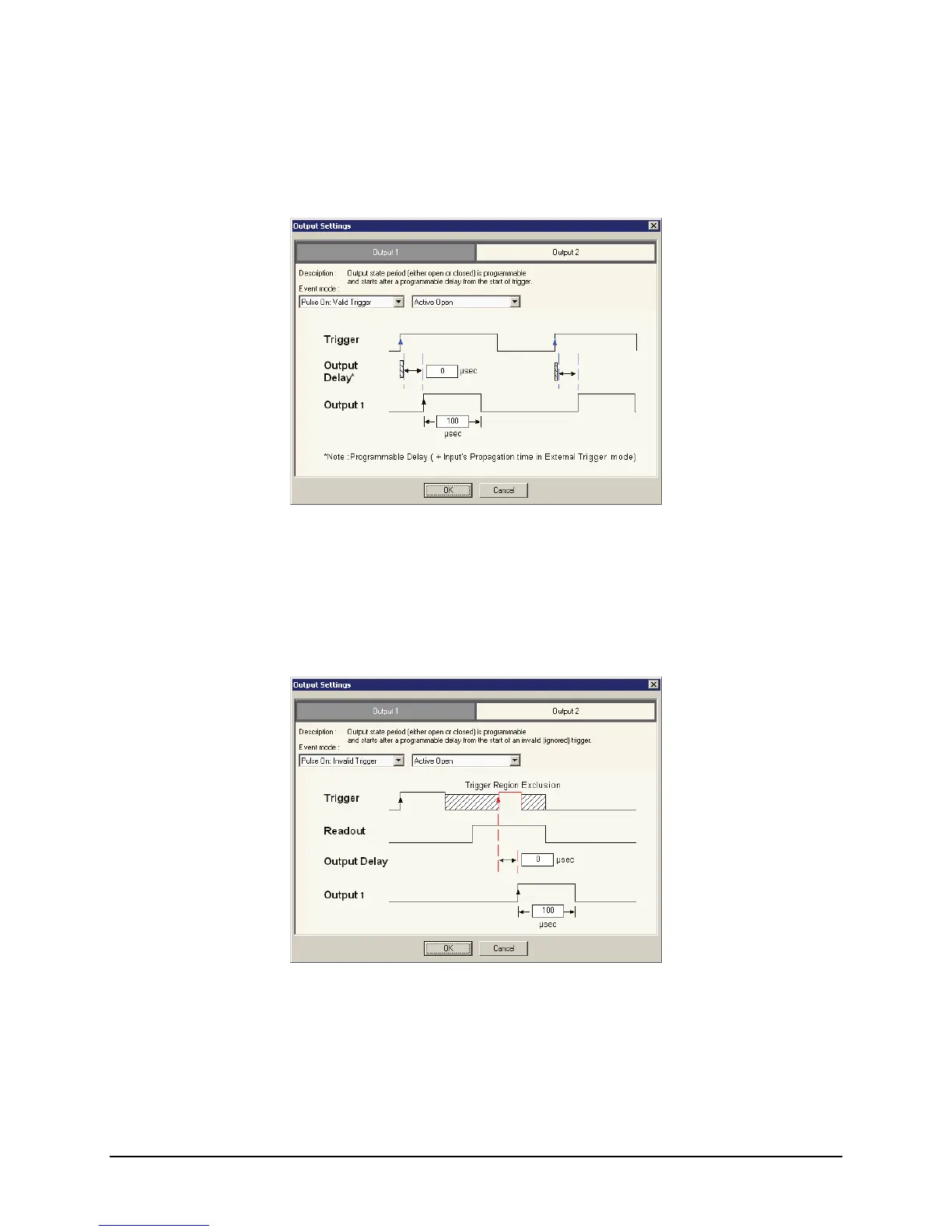

Pulse On Valid Trigger Event Mode
The Pulse On Valid Trigger event mode generates an output signal when a valid input trigger is received.
Pulse On Invalid Trigger Event Mode
This event mode generates an output signal when an invalid input trigger is received. An invalid trigger is any
trigger received while the camera is engaged in frame acquisition (exposure and readout) and cannot accept trigger
inputs. This is shown by the trigger exclusion region in the following diagram.
