PART LIST OF STANDARD TYPE GEAR UNITS
17Dana IncorporatedIMM-0016EN - Installation and Maintenance Manual

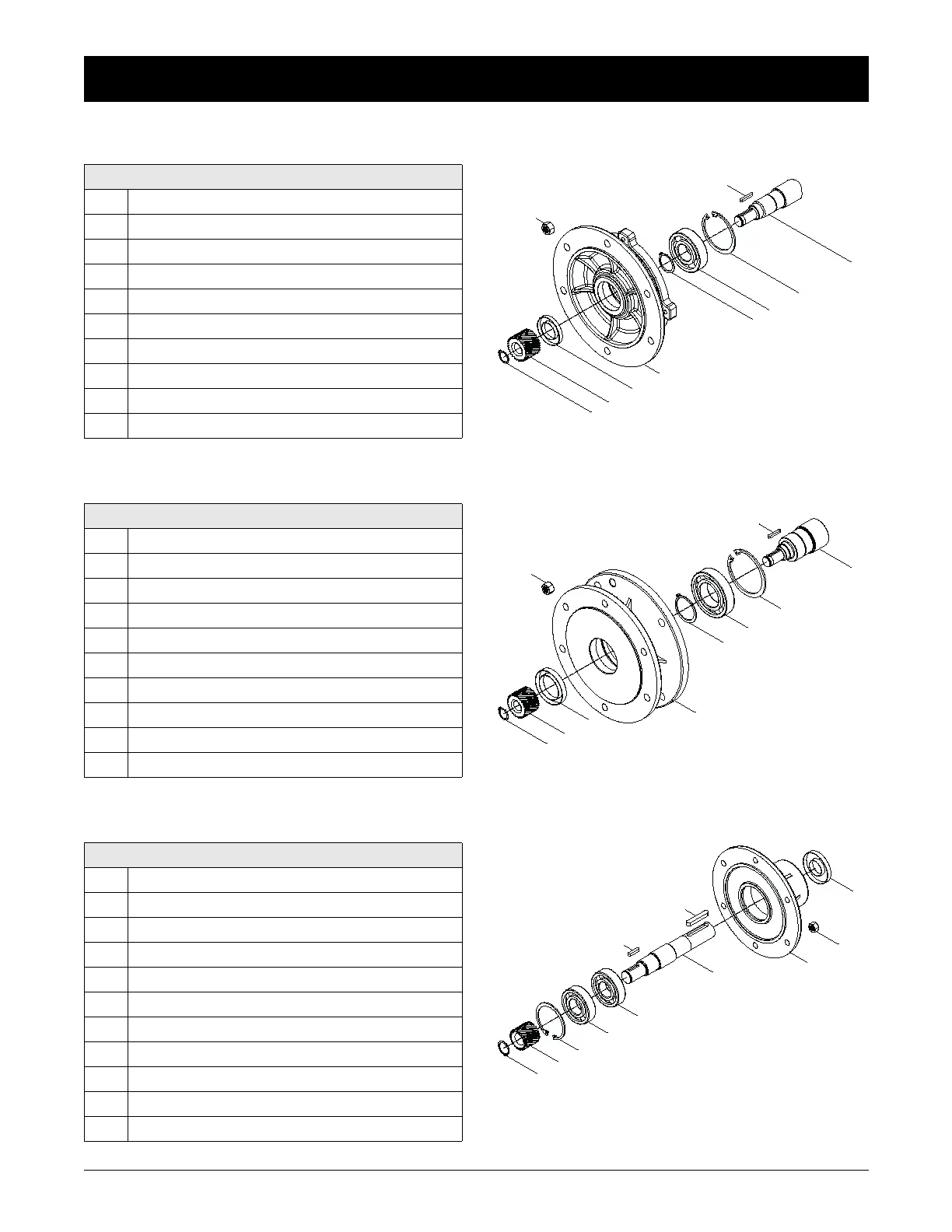

4.9 D SERIES MOTOR FLANGE FOR DIRECT COUPLED TYPES
4.10 DN..., DV...TYPES B5, B14 MOTOR FLANGE
4.11 DT... TYPES INPUT BEARING HOUSING WITH SOLID INPUT SHAFT
Parts List
1Shaft
2Circlips
3Bearing
4Circlips
5Flange
6Key
7 Gear
8Circlips
9Nut
10 Key
1
2
3
4
5
6
7
8
10
9
Parts List
1Shaft
2Circlips
3Bearing
4Circlips
5B5 / B14 Flange
6Seal
7 Gear
8Circlips
9Nut
10 Key
1
2
3
4
5
6
7
8
10
9
Parts List
1Seal
2Nut
3Flange
4Shaft
5Bearing
6Bearing
7Circlips
8 Gear
9Circlips
10 Key
11 Key
1
2
3
4
5
6
7
8
9
11
10
