9Dana IncorporatedIMM-0016EN - Installation and Maintenance Manual
4 PART LIST OF STANDARD TYPE GEAR UNITS
4.1 D..00... TYPES FOR 2 AND 3 STAGED GEAR UNITS
A - Only Valid For 3 Stages
NOTE:

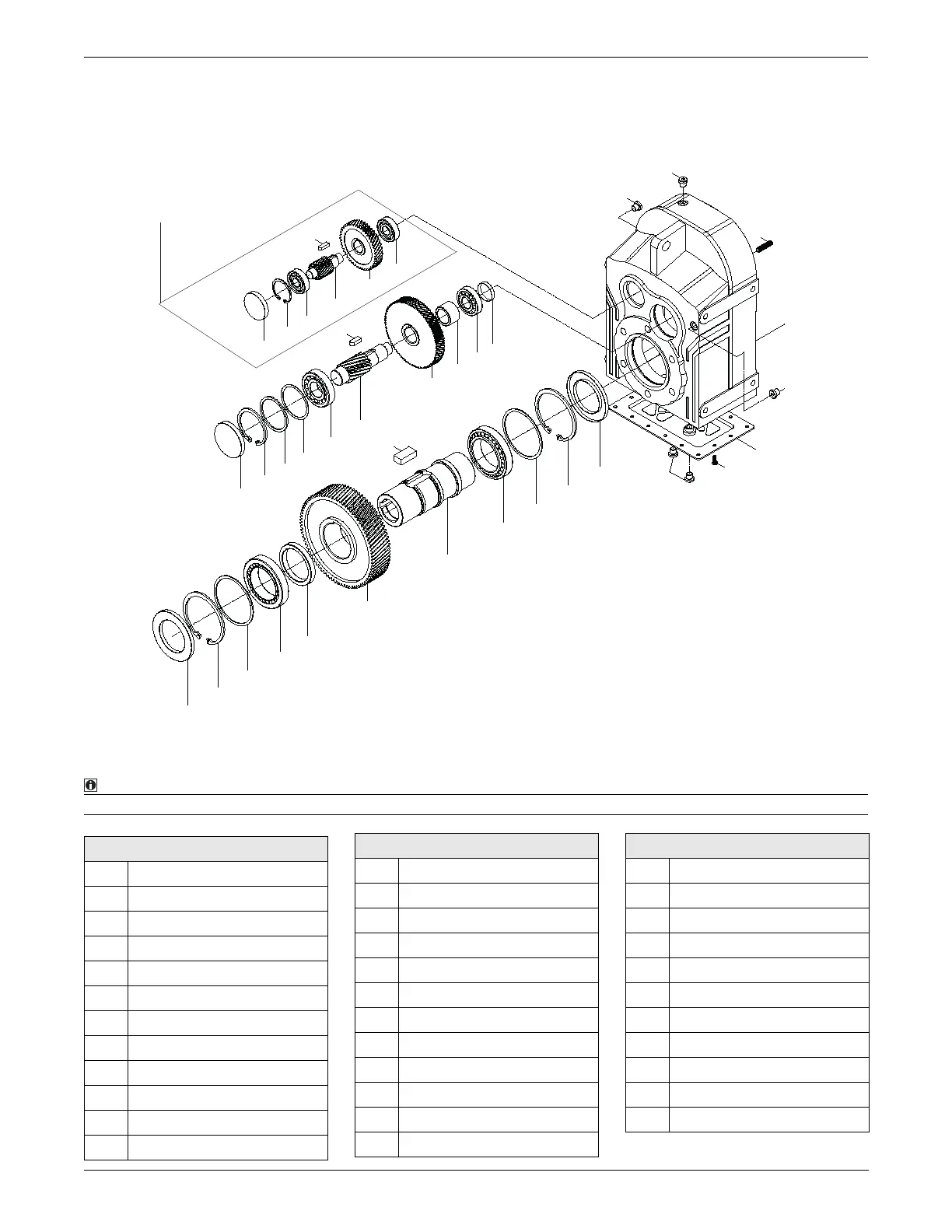

Standard D...00... type basic part diagram. Parts may differ for special applications.
30
24
11
3
3
3
1
2
3
5
29
31
32
33
34
35
18
19
20
21
22
23
25
26
27
28
6
7
8
9
10
12
13
14
15
16
17
4
A
Standard Part List
1Pin Screw
2Housing
3Plug
4 Cover Plate
5 Screw
6Oil Seal
7Circlip
8Spacer
9Bearing
10 Hollow Shaft
11 Key
12 Gear
13 Spacer
14 Bearing
15 Spacer
16 Circlip
17 Seal
18 Closing Cap
19 Circlip
20 Spacer
21 Spacer
22 Bearing
23 Shaft Gear
24 Key
Standard Part List
25 Gear
26 Spacer
27 Bearing
28 Spacer
29 Bearing
30 Gear
31 Key
32 Gear
33 Bearing
34 Circlip
35 Closing Cap
Standard Part List
