MECHANICAL INSTALLATION
31Dana IncorporatedIMM-0016EN - Installation and Maintenance Manual

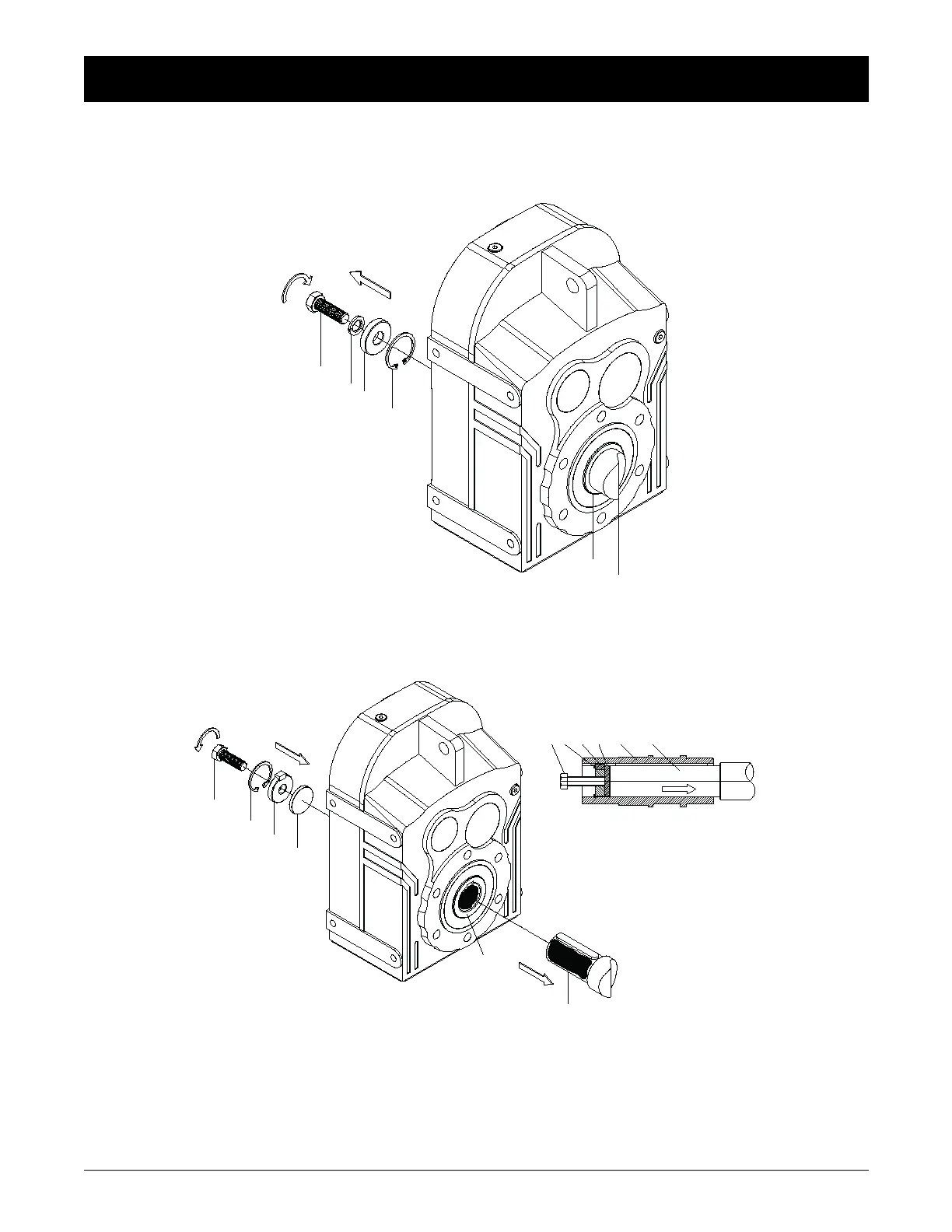

8.3 DISASSEMBLING CUSTOMER SHAFT WITH SHOULDER
Disassemble the bolt and take out the parts as shown
Use the disassemble set from Dana Motion Systems Italia S.r.l. and fasten the bold as shown bellow to take out the output shaft.
For disassemble sets look the following pages.
1 - Retaining Bolt
2 - Circlip
3 - Lock Washer
4 - Washer
5 - Hollow Shaft
6 - Customer Shaft
4
3
2
1
5
6
6
4
3
2
1
5
13
5
62
4
