DANA BREVINI D Series User Manual

52
LUBRICATION
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

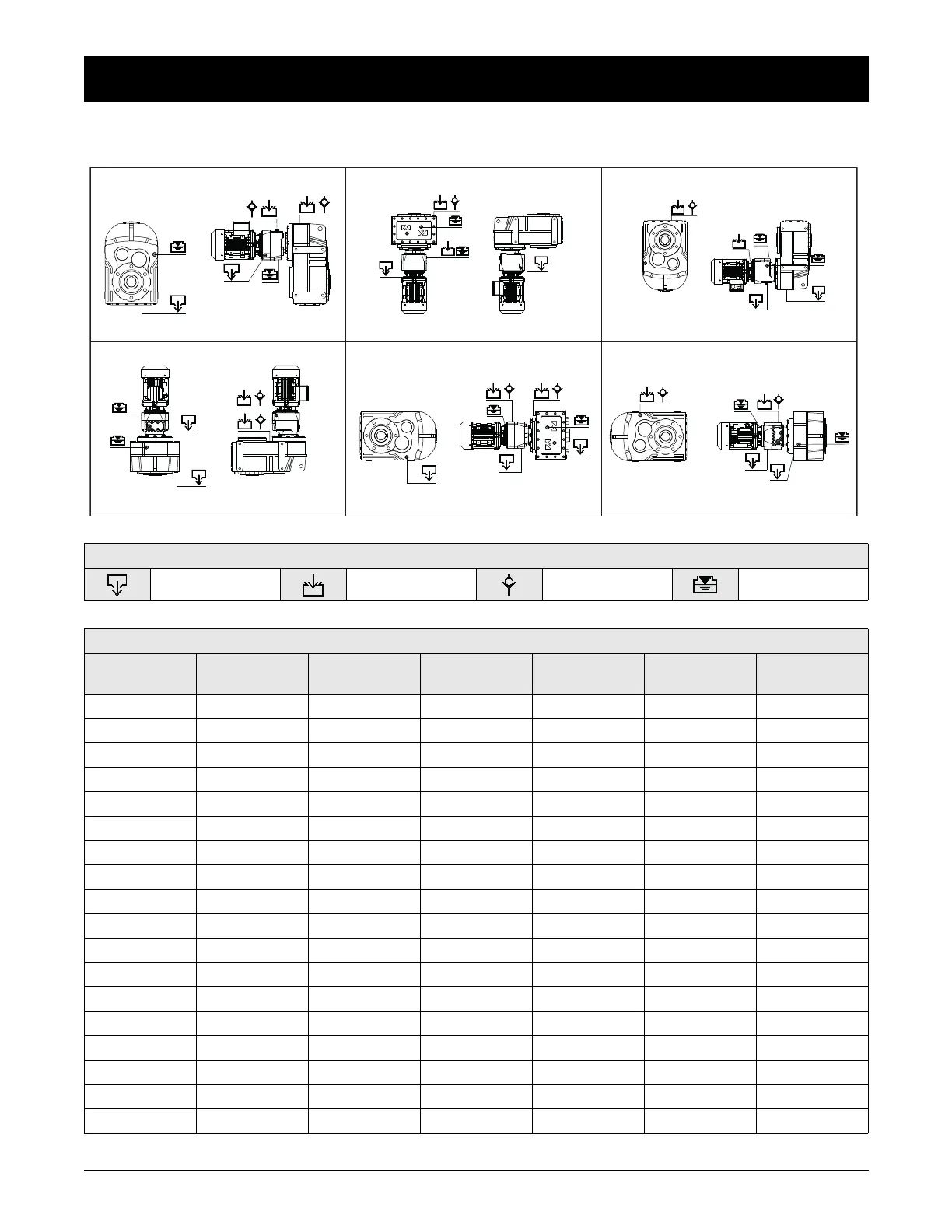

10.4.3 D SERIES 5-6 STAGE OIL LEVEL PLUGS:
Table 16:
Symbols:
Drain Plug Oil Filling Vent Plug Oil Level
Oil Quantities (lt)
Type M1
A / B
M2
A / B
M3
A / B
M4
A / B
M5
A / B
M6
A / B
DR275 1.8 / 0.4 2.0 / 0.6 1.2 / 0.5 2.0 / 0.6 2.0 / 0.5 2.0 / 0.5
DR276 1.8 / 0.35 2.0 / 0.5 1.2 / 0.5 2.0 / 0.55 2.0 / 0.4 2.0 / 0.4
DR285 2.3 / 0.4 2.9 / 0.6 1.8 / 0.5 2.6 / 0.6 2.3 / 0.5 2.5 / 0.5
DR286 2.3 / 0.35 2.9 / 0.55 1.8 / 0.5 2.6 / 0.55 2.3 / 0.4 2.5 / 0.4
DR375 3.0 / 0.4 3.7 / 0.6 2.0 / 0.5 3.5 / 0.6 3.3 / 0.5 3.3 / 0.5
DR376 3.0 / 0.35 3.7 / 0.55 2.0 / 0.5 3.5 / 0.55 3.3 / 0.4 3.3 / 0.4
DR475 6.4 / 0.65 7.0 / 0.95 4.0 / 0.7 6.6 / 0.95 6.5 / 0.7 6.5 / 0.7
DR476 6.4 / 0.6 7.0 / 0.8 4.0 / 0.7 6.6 / 0.8 6.5 / 0.65 6.5 / 0.65
DR575 11.2 / 1.2 12.4 / 2.1 8.0 / 2.0 12.5 / 2.1 11.5 / 1.4 11.5 / 1.4
DR576 11.2 /1.1 12.4 / 2.0 8.0 / 1.9 12.5 / 2.0 11.5 / 1.3 11.5 / 1.3
DR675 21.0 / 1.2 25.2 / 2.1 14.0 / 2.0 26.5 / 2.1 21.5 / 1.4 21.0 / 1.4
DR676 21.0 / 1.1 25.2 / 2.0 14.0 / 1.9 26.5 / 2.0 21.5 / 1.3 21.0 / 1.3
DR775 32.0 / 2.0 35.0 / 3.4 21.0 / 3.1 40.0 / 3.4 33.0 / 2.8 32.5 / 2.8
DR776 32.0 / 1.9 35.0 / 3.3 21.0 / 3.0 40.0 / 3.3 33.0 / 2.6 32.5 / 2.6
DR875 48.5 / 2.0 53.0 / 3.4 39.0 / 3.1 61.0 / 3.4 50.0 / 2.8 49.0 / 2.8
DR876 48.5 / 1.9 53.0 / 3.3 39.0 / 3.0 61.0 / 3.3 50.0 / 2.6 49.0 / 2.6
DR975 84.0 / 4.5 110.0 / 7.5 77.0 / 7.5 112.0 / 7.5 93.0 / 5.5 89.0 / 5.5
DR976 84.0 / 4.0 110.0 / 7.0 77.0 / 7.0 112.0 / 7.0 93.0 / 5.0 89.0 / 5.0
A
A
A
A
M1
M4
M5
M6
M2
M3
