LUBRICATION
51Dana IncorporatedIMM-0016EN - Installation and Maintenance Manual

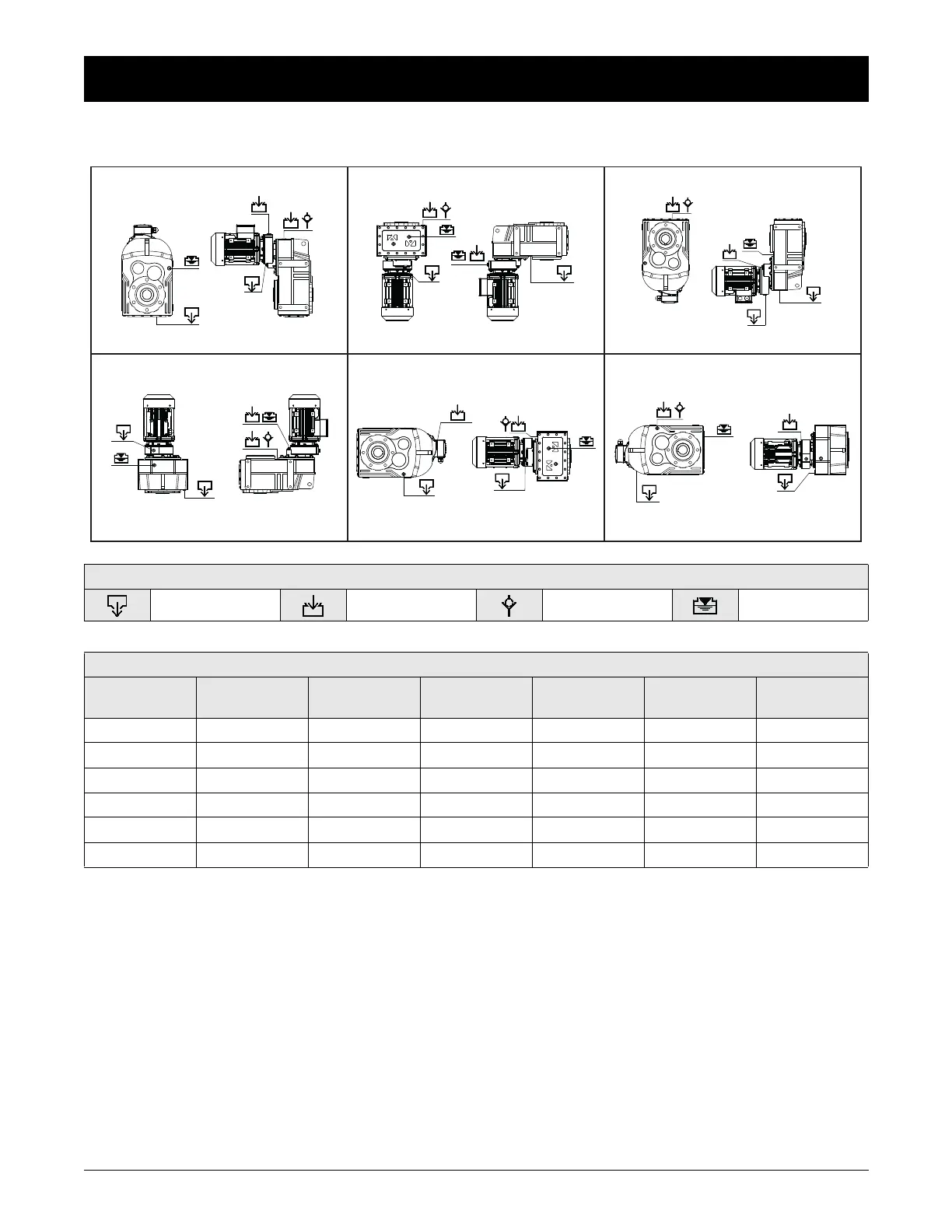

10.4.2 D SERIES 4 STAGE OIL LEVEL PLUGS
Table 15:
Symbols:
Drain Plug Oil Filling Vent Plug Oil Level
Oil Quantities (lt)
Type M1
A / B
M2
A / B
M3
A / B
M4
A / B
M5
A / B
M6
A / B
DR474 6.4/ 0.25 7.0 / 0.25 4.0 / 0.25 6.6 / 0.25 6.5 / 0.25 6.5/ 0.25
DR574 11.2 / 0.4 12.4 / 0.4 8.0 / 0.4 12.5 / 0.4 11.5 / 0.4 11.5 / 0.4
DR674 21.0 / 0.5 25.2 / 0.5 14.0 / 0.5 26.5 / 0.5 21.5 / 0.5 21.0 / 0.5
DR774 32.0 / 0.9 35.0 / 0.9 21.0 / 0.9 40.0 / 0.9 33.0 / 0.9 32.5 / 0.9
DR874 48.5 / 3.5 53.0 / 3.5 39.0 / 3.5 61.0 / 3.5 50.0 / 3.5 49.0 / 3.5
DR974 84.0 / 5.0 110.0 / 5.0 77.0 / 5.0 112.0 / 5.0 93.0 / 5.0 89.0 / 5.0
B
M1
M4
M5
M6
M2
M3
