LUBRICATION
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

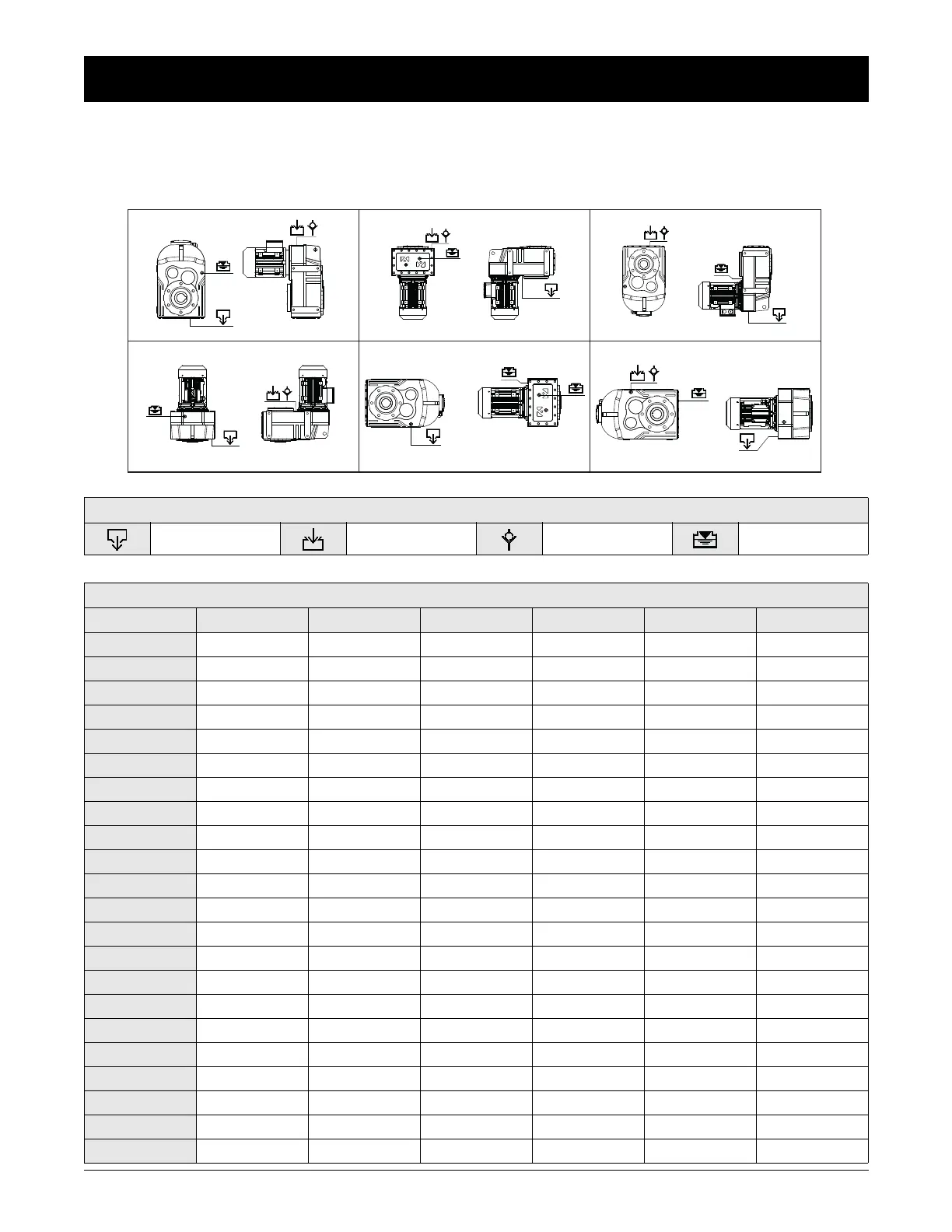

10.4 OIL PLUGS AND OIL QUANTITIES
10.4.1 D SERIES 2-3 STAGE OIL LEVEL PLUGS:
Table 14:
Symbols:
Drain Plug Oil Filling Vent Plug Oil Level
Oil Quantities (lt)
Type M1 M2 M3 M4 M5 M6
DR072 0.95 1.1 0.8 1.1 1.0 0.9
DR073 0.9 1.0 0.7 1.0 0.9 0.85
DR172 1.3 1.5 1.0 1.6 1.4 1.3
DR173 1.0 1.3 0.8 1.55 1.2 1.2
DR272 1.9 2.2 1.3 2,5 2.0 1.95
DR273 1.8 2.0 1.2 2.0 2.0 2.0
DR282 2.4 3.0 2.0 2.9 2.7 2.7
DR283 2.3 2.9 1.8 2.6 2.3 2.5
DR372 3.2 3.7 2.4 3.6 3.5 3.4
DR373 3.0 3.7 2.0 3.5 3.3 3.3
DR472 6.8 7.0 4.6 7.5 6.5 6.5
DR473 6.4 7.0 4.0 6.6 6.5 6.5
DR572 11.4 12.7 8.6 15,0 11.9 11.6
DR573 11.2 12.4 8.0 12.5 11.5 11.5
DR672 22.0 27.0 16.0 27.0 22.8 22.5
DR673 21.0 25.2 14.0 26.5 21.5 21,0
DR772 34.0 37.0 26.0 44.0 35.0 34.5
DR773 32.0 35.0 21.0 40.0 33.0 32.5
DR872 53.0 58.0 43.0 67.0 55.0 54.0
DR873 48.5 53.0 39.0 61.0 50.0 49.0
DR972 87.0 113.0 80.5 117.0 97.0 95.0
DR973 84.0 110.0 77.0 112.0 93.0 89.0
M1
M4 M5 M6
M2 M3
