MECHANICAL INSTALLATION
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

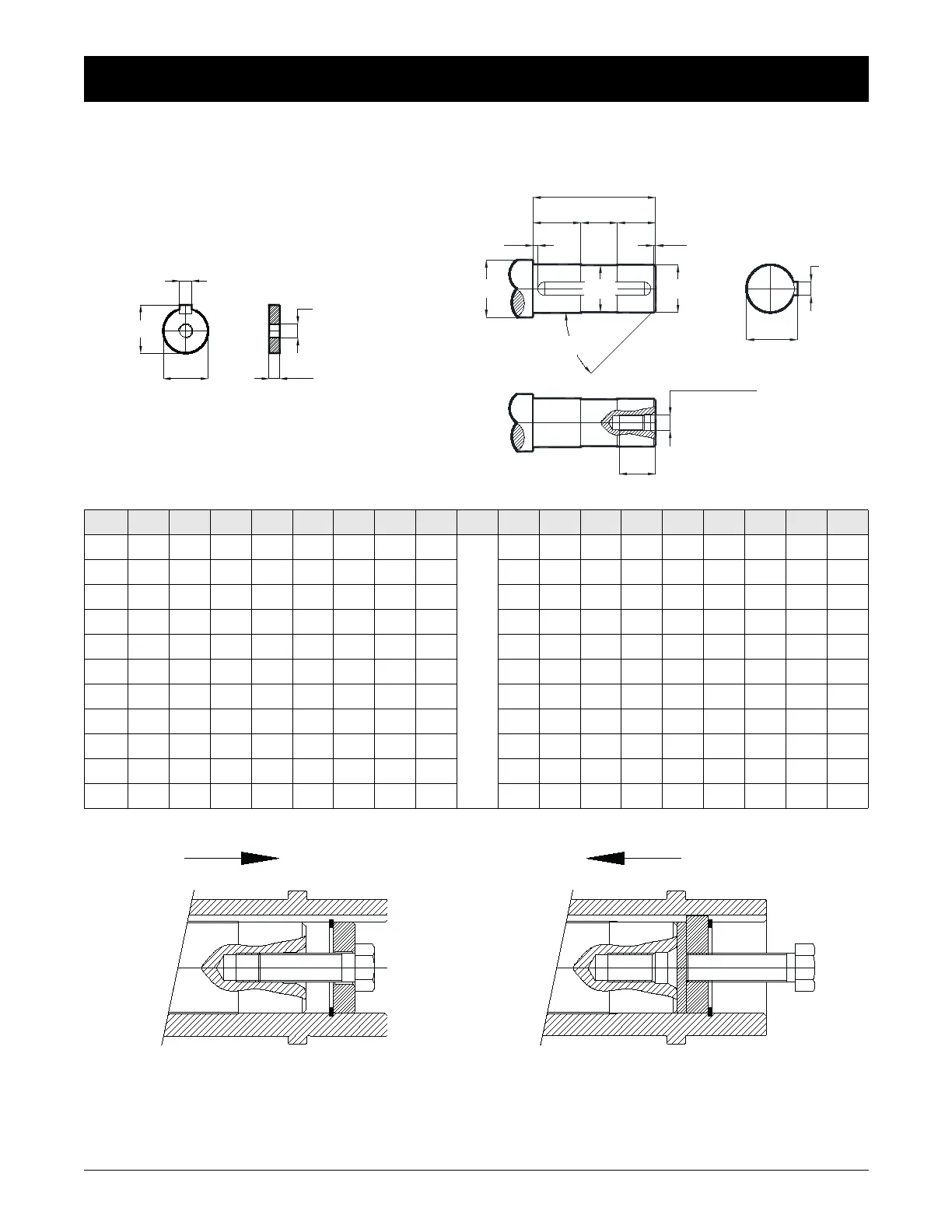

8.6 ADVISED SHAFT DIMENSIONS AND ACCESSIORIES
Table 7:
6 Contour Bolt
(DIN ISO 4014 . DIN ISO 4017)
(DIN ISO 8765)
Type s u e1 t1 M d d1 m1 f b b1 b2 b3 c g h e t
D.07.. 24.7 8 28 7.5 M12 25 24 30
5
82 45 18 19 1 M10 24 28 8
D.17..29.710337.5M12302936 89502019 1M102433 8
D.27.. 34.7 12 38 9.5 M16 35 34 43 114 65 27 22 1 M12 30 38 10
D.28.. 39.7 12 43 11.5 M20 40 39 50 124 69 28 27 2 M16 38 43 12
D.37.. 39.7 12 43 11.5 M20 40 39 50 138 75 35 28 2 M16 38 43 12
D.47.. 49.7 12 53.5 13.5 M20 50 49 60 165 87 41 37 3 M16 38 53.5 14
D.57.. 59.7 16 64 17.5 M24 60 59 75 188 101 44 43 3 M20 44 64 18
D.67.. 69.7 16 74.5 19.5 M24 70 69 85 248 115 78 55 4 M20 44 74.5 20
D.77.. 89.7 20 95 24.5 M30 90 89 110 287 140 83 64 4 M24 52 95 25
D.87.. 109.7 20 116 27.5 M30 110 109 130 347 165 98 84 4 M24 52 116 28
D.97.. 119.7 20 127 31 M30 120 119 140 434 185 130 119 4 M24 52 127 32
Dismounting Mounting
s
e1
t1
M
u
t
f
c
b (max)
e
b1
Ød
h6
h
b2
45°
b3
g (DIN 332)
Ød1
m1
