DANA BREVINI D Series User Manual

32
MECHANICAL INSTALLATION
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

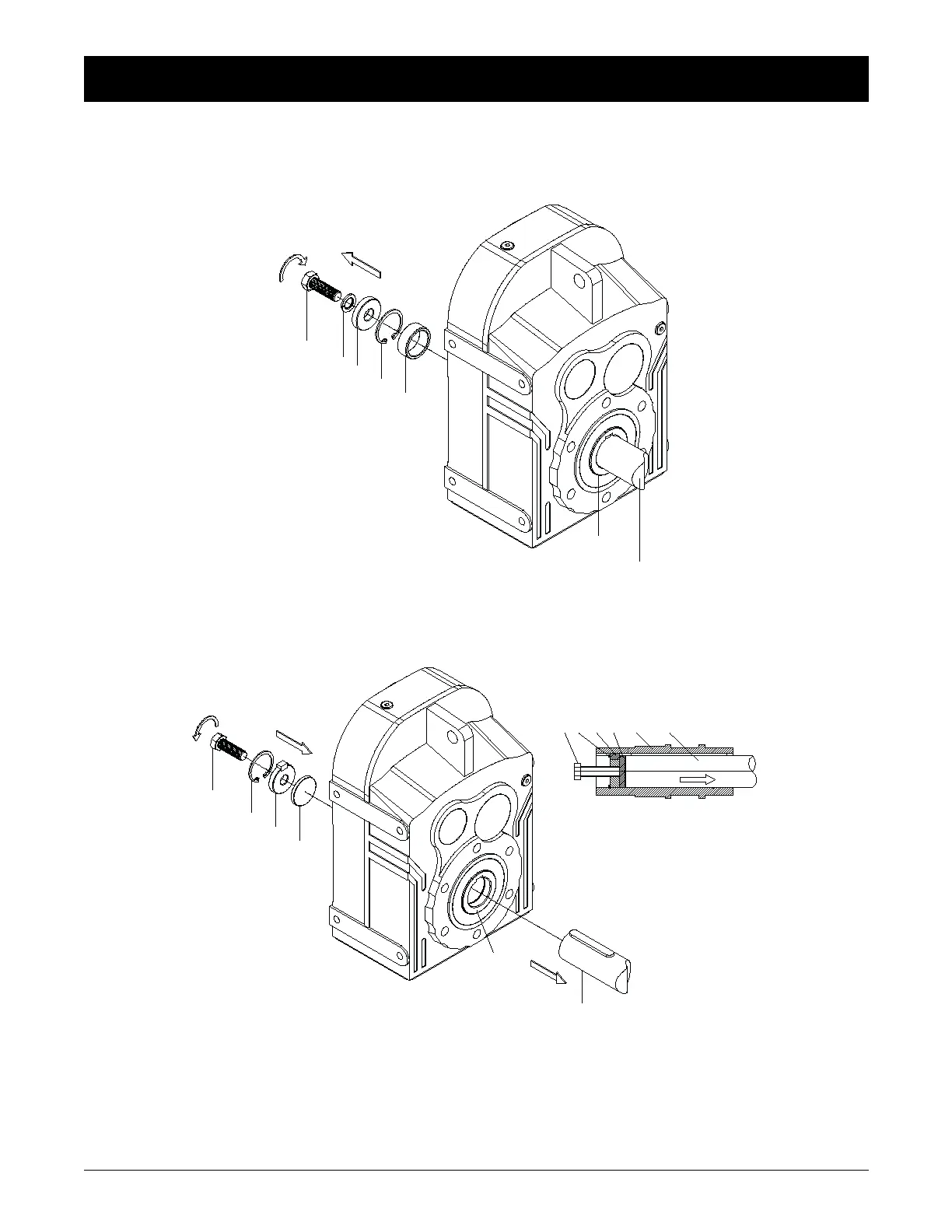

8.4 DISASSEMBLING CUSTOMER SHAFT WITHOUT SHOULDER
Disassembly the bolt and take out the parts as shown
Use the disassembly set from Dana Motion Systems Italia S.r.l. and fasten the bold as shown bellow to take out the output shaft.
For disassembly sets look the following pages.
1 - Retaining Bolt
2 - Circlip
3 - Lock Washer
4 - Washer
5 - Hollow Shaft
6 - Customer Shaft
1
2
3
4
5
5
6
6
4
3
2
1
5
13
5
62
4
