3 UNIT DESIGNATION
3.1 DETAILED UNIT DESIGNATION
NOTE:

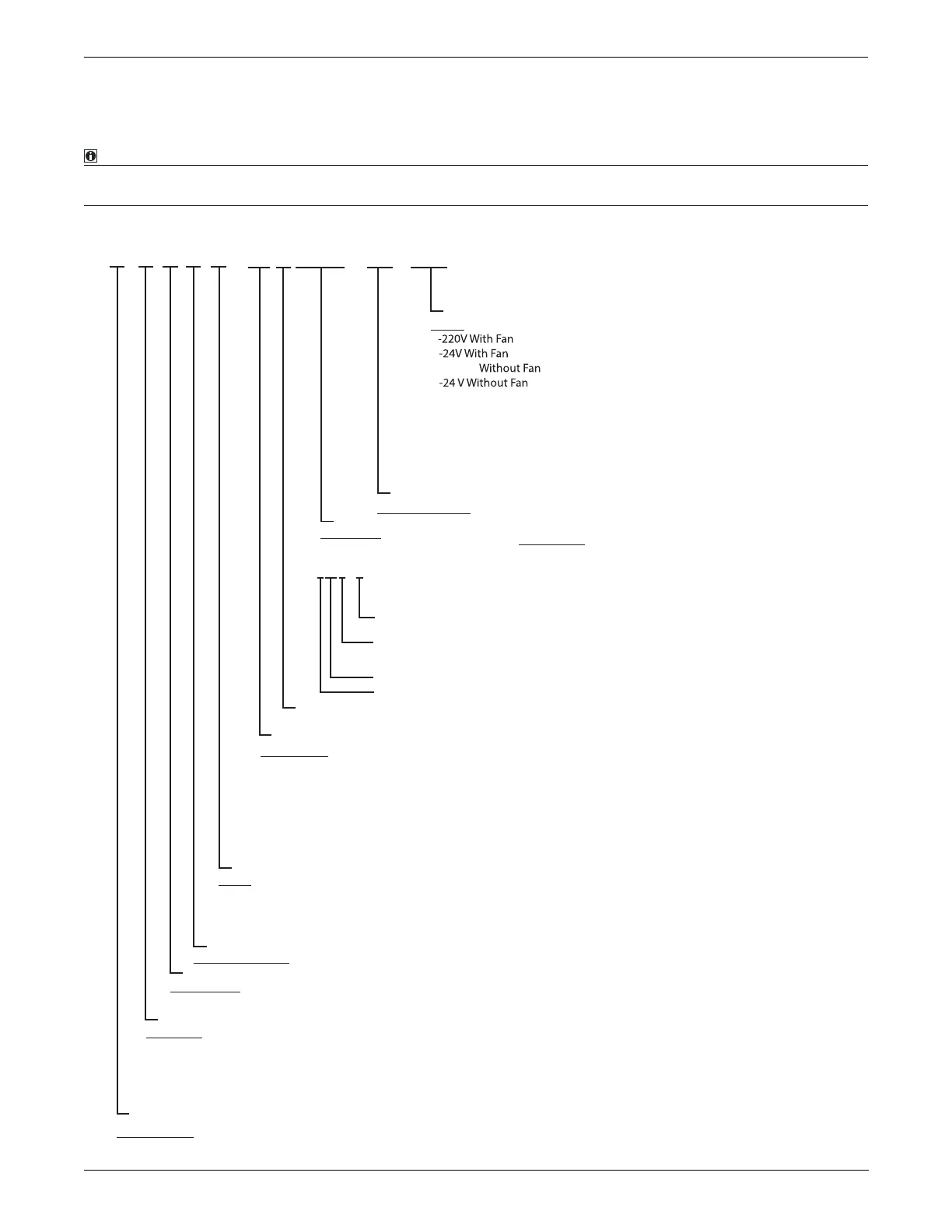

Detailed D series gear units designation for ordering
(This Designation is different from the short nameplate designation)
Gearbox Type
D Serie
Input Type
R :With Motor
N :IEC B5 / B14 Flanged without Motor
V :IEC B5 / B14 Flanged with Motor
Output Shaft
00 :Hollow Shaft output
01 :Solid Shaft Output
02 :Solid shaft output with IEC B5 /14 Flange
03 :Flanged and Hollow Shaft output
0S :Shrink Disk Output
For DN Types
Number of poles
Revision Number
Motor Size
For DR / DV /Types
Pole Number
Frame Lenght
Motor size
Motor type
Motor Efficiency Class
A06 : 63 B5 A09 : 90 B5 A13:132 B5 A25: 250 B5
B06 :63 B14 B09 : 90 B14 B13:132 B14 A28: 280 B5
A07 : 71 B5 A10 :100 B5 A16:160 B5 A31: 315 B5
B07 :71 B14 B10 :100 B14 A18:180 B5
A08 : 80 B5 A11 :112 B5 A20:200 B5
B08 :80 B14 B11 :112 B14 A22:225 B5
Brake
L
P
S-220 V
Z
01-10 Nm
02-25 Nm
04-40 Nm
05-50 Nm
Housing Size
1...9
D R 4 7 4 .02 3 E90S / 4C - L02
10-100 Nm
20-200 Nm
30-300 Nm
40-400 Nm
Stage
2 Stages
3 Stages
4 Stages
5 Stages
6 Stages
E90S / 4
