DANA BREVINI D Series User Manual

10
PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

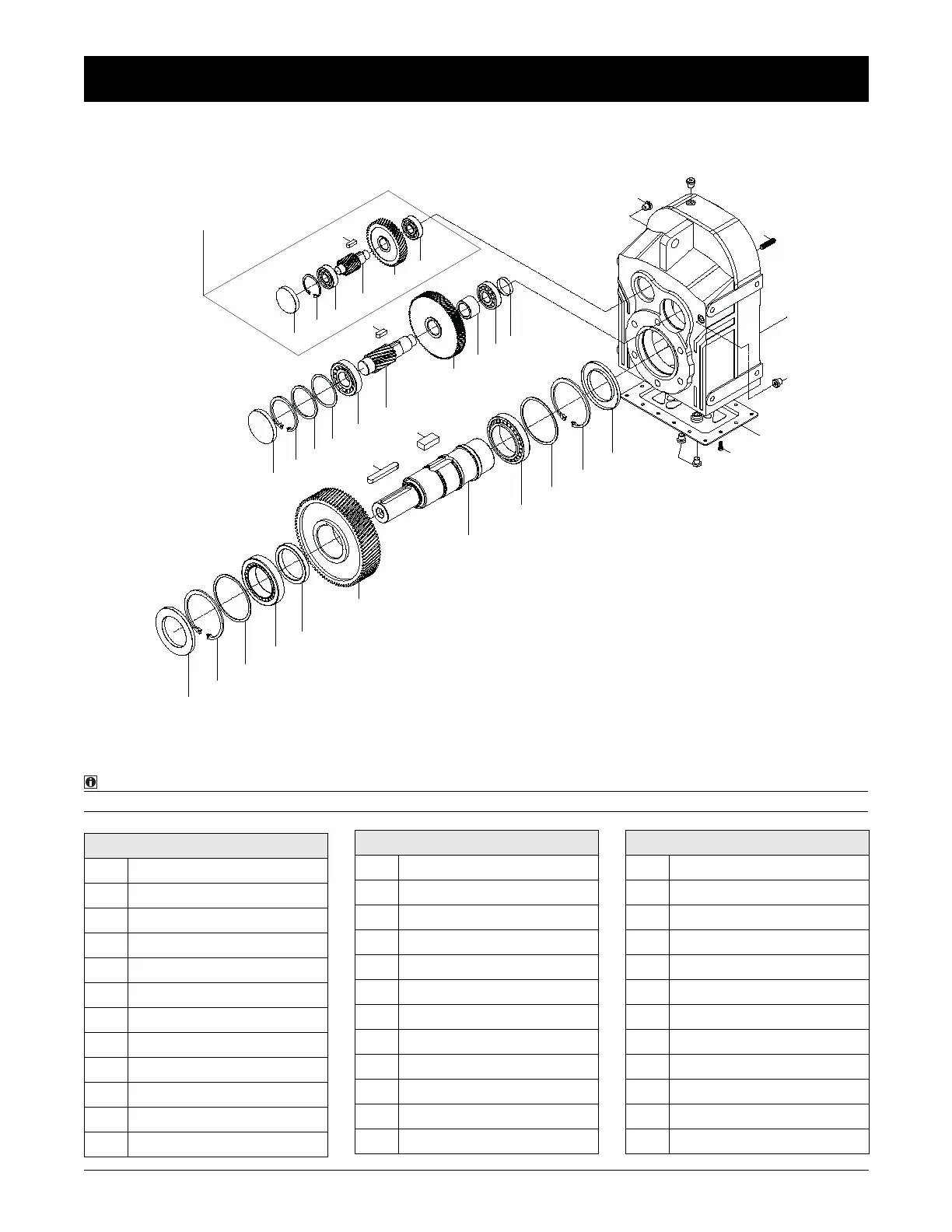

4.2 D..01... TYPES FOR 2 AND 3 STAGED GEAR UNITS
A - Only Valid For 3 Stages
NOTE:
Standard D...01... type basic part diagram. Parts may differ for special applications.
31
25
11
3
3
1
2
3
5
30
32
33
34
35
36
19
20
21
22
23
24
26
27
28
29
6
7
8
9
10
13
14
15
16
17
18
4
12
A
Standard Part List
1Pin Screw
2Housing
3Plug
4 Cover Plate
5Bolt
6Oil Seal
7Circlip
8Bearing
9Bearing
10 Output Shaft
11 Key
12 Key
13 Gear
14 Spacer
15 Bearing
16 Spacer
17 Circlip
18 Oil Seal
19 Closing Cap
20 Circlip
21 Spacer
22 Spacer
23 Bearing
24 Shaft Gear
Standard Part List
25 Key
26 Gear
27 Spacer
28 Bearing
29 Spacer
30 Bearing
31 Gear
32 Key
33 Shaft Gear
34 Bearing
35 Circlip
36 Closing Cap
Standard Part List
