PART LIST OF STANDARD TYPE GEAR UNITS
11Dana IncorporatedIMM-0016EN - Installation and Maintenance Manual

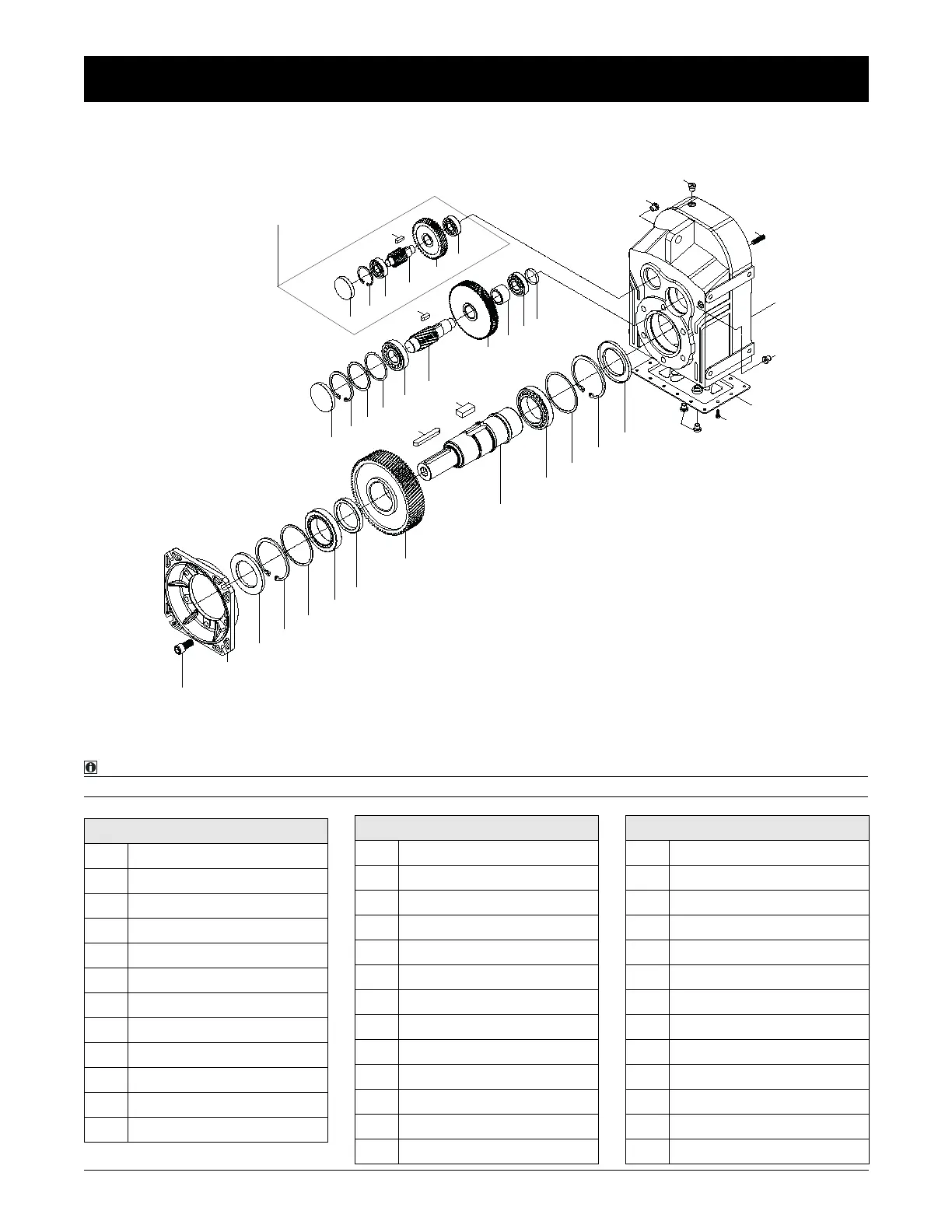

4.3 D..02... TYPES FOR 2 AND 3 STAGED GEAR UNITS
A - Only Valid For 3 Stages
NOTE:
Standard D...02... type basic part diagram. Parts may differ for special applications.
33
27
11
3
3
3
1
2
3
5
32
34
35
36
37
38
21
22
23
24
25
26
28
29
30
31
6
7
8
9
10
13
14
15
16
17
18
4
12
19
20
A
Standard Part List
1Pin Screw
2Housing
3Plug
4 Cover Plate
5Bolt
6Oil Seal
7Circlip
8Spacer
9Bearing
10 Solid Shaft
11 Key
12 Key
13 Gear
14 Spacer
15 Bearing
16 Spacer
17 Circlip
18 Seal
19 Flange
20 Bolt
21 Closing Cap
22 Circlip
23 Spacer
24 Spacer
25 Bearing
Standard Part List
26 Shaft Gear
27 Key
28 Gear
29 Spacer
30 Bearing
31 Spacer
32 Bearing
33 Gear
34 Key
35 Shaft Gear
36 Bearing
37 Circlips
38 Closing Cap
