PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

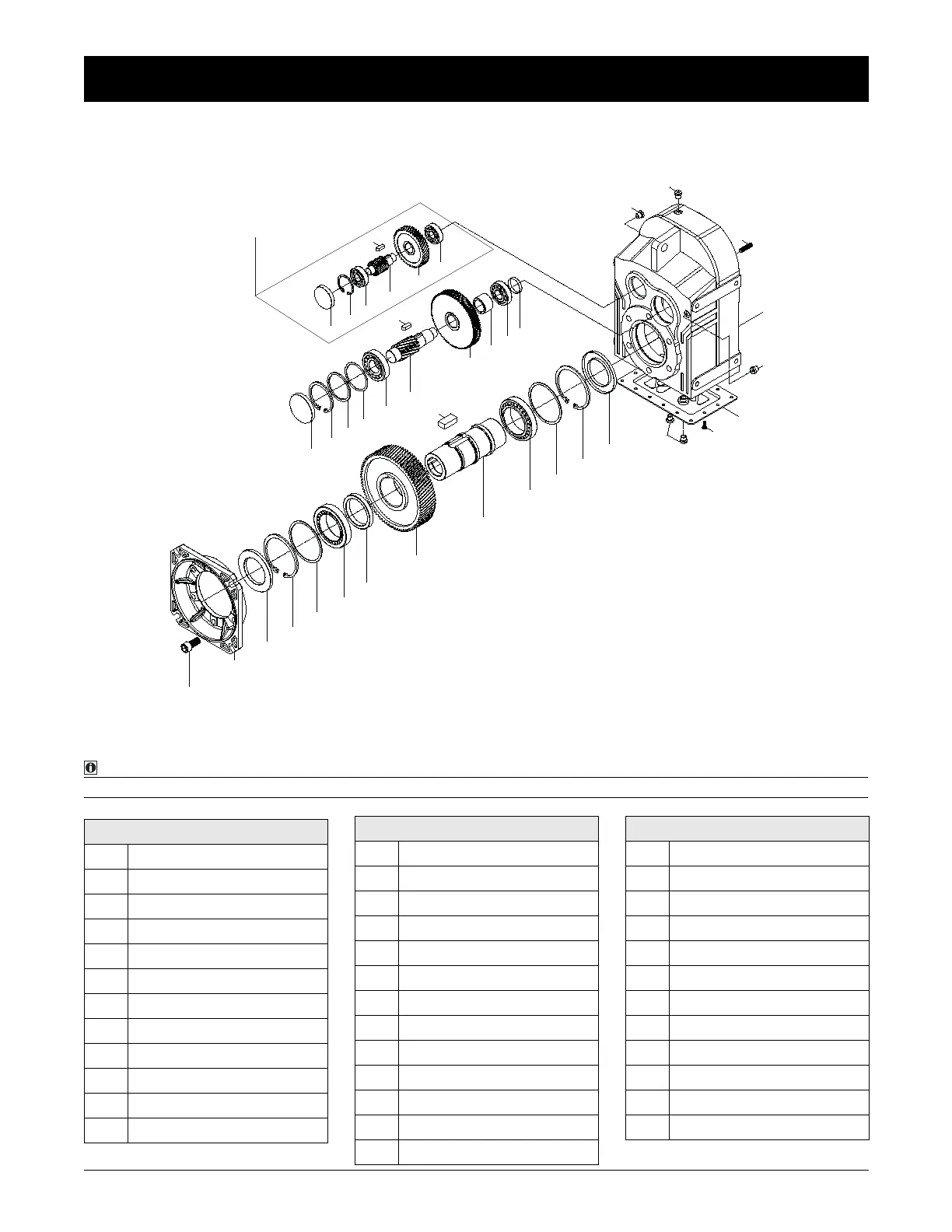

4.4 D..03... TYPES FOR 2 AND 3 STAGED GEAR UNITS
A - Only Valid For 3 Stages
NOTE:
Standard D...03... type basic part diagram. Parts may differ for special applications.
32
26
11
3
3
3
1
2
3
5
31
33
34
35
36
37
20
21
22
23
24
25
27
28
29
30
6
7
8
9
10
12
13
14
15
16
17
4
18
19
A
Standard Part List
1Pin Screw
2Housing
3Plug
4 Cover Plate
5Bolt
6Oil Seal
7Circlip
8Spacer
9Bearing
10 Hollow Output Shaft
11 Key
12 Gear
13 Spacer
14 Bearing
15 Spacer
16 Circlip
17 Oil Seal
18 Flange
19 Bolt
20 Closing Cap
21 Circlip
22 Spacer
23 Spacer
24 Bearing
25 Shaft Gear
Standard Part List
26 Key
27 Gear
28 Spacer
29 Bearing
30 Spacer
31 Bearing
32 Gear
33 Key
34 Gear
35 Bearing
36 Circlip
37 Closing Cap
Standard Part List
