MECHANICAL INSTALLATION
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

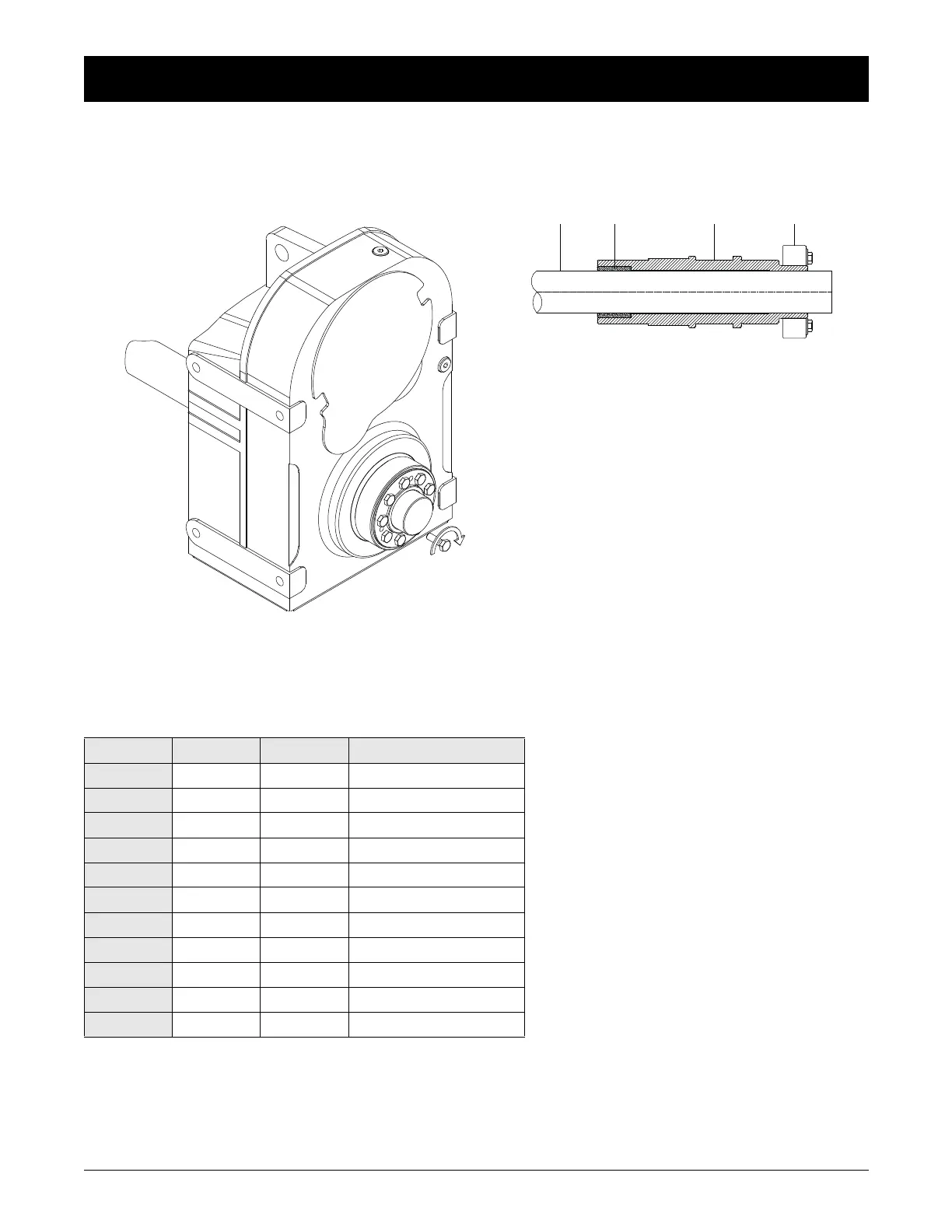

Insert the shaft and tighten the bolts as shown. Be sure that there is a clearance between the shrink disk shoulder and the hollow
shaft shoulder of the gearbox.
1 - Customer Shaft
2 - Bronze Ring
3 - Hollow Shaft
4 - Shrink Disk
Table 10:
Type Bolt Quantity Tightening Torque [Nm]
D.07.. M5 6 4
D.17.. M6 5 12
D.27.. M6 7 12
D.28.. M6 8 12
D.37.. M6 8 12
D.47.. M6 10 12
D.57.. M8 7 30
D.67.. M8 7 30
D.77.. M10 9 59
D.87.. M12 10 100
D.97.. M12 12 100
12 3
4
