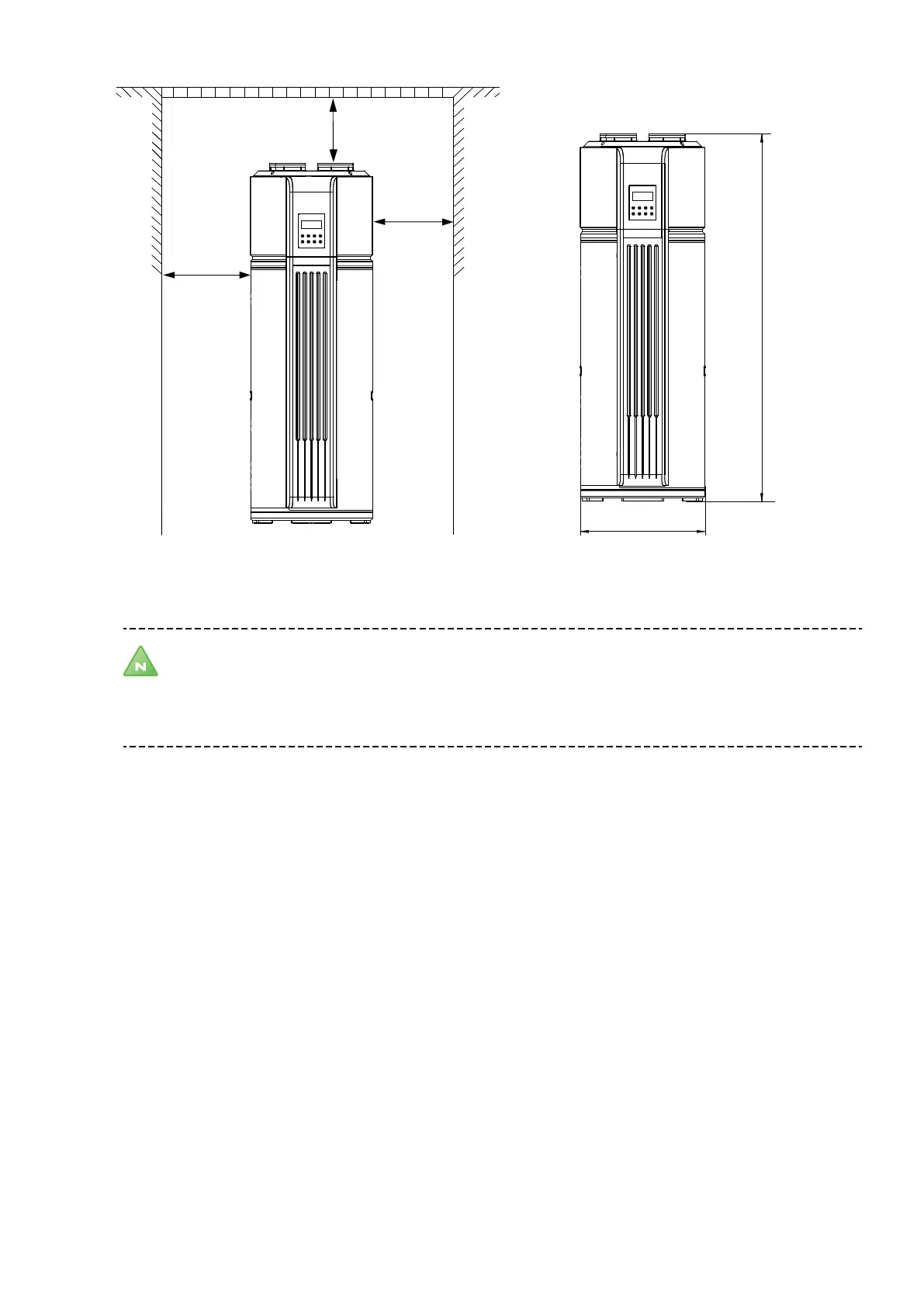

Figure 3. Installation space continued (distances)
Figure 4. Dimensions
Note! The specification of 800 mm free space above the unit is only a recommendation if the room size
allows this arrangement. The reason is to provide sufficient air flow and air exchange through the unit´s
inlet and outlet. In the event that the room size does not allow this recommendation and that it is
suspected that the air volume and flow will not be sufficient, installing flexible duct connections should
be considered.
5.2 Carrying the unit onto the site
•
In order to avoid scratches or deformation of the unit surface, apply guard boards to the contacting surface.
•
Do not incline the unit more than 45° while it is moved, and keep it vertical when installing.
•
This unit is very heavy, it must be carried by two or more people, otherwise it may cause personal injury and
damage.
Installation, Service and User Manual VMGFK202 – 11
