7 Duct Connections
Note! When connecting flexible air ducts to the unit, the airflow capacity in system will decrease.

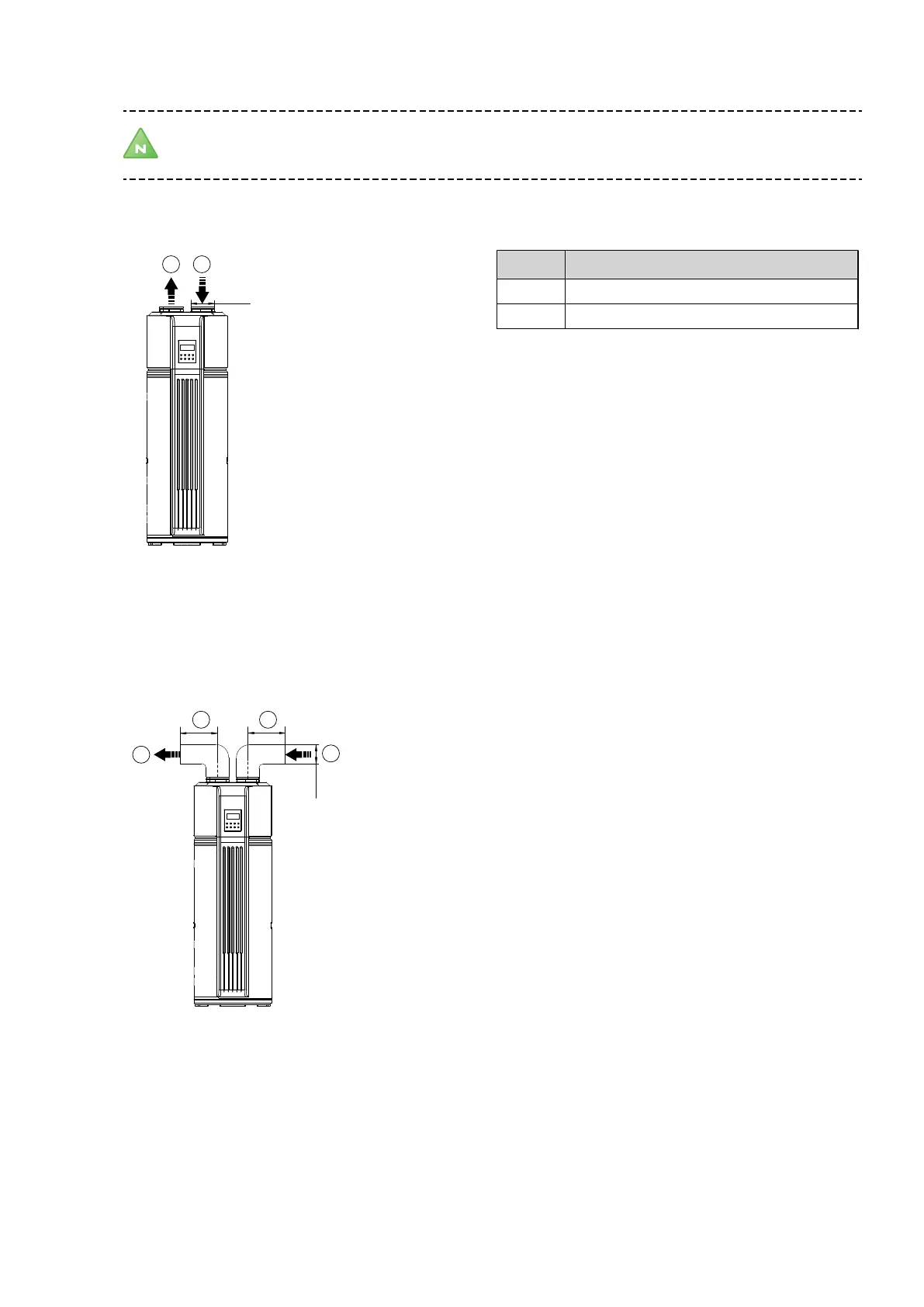

Example of air inlet (2) and outlet (1) without flexible air ducts.
Ø 190 mm
1 2
Figure 7. Air inlet and outlet without flexible air ducts
Position Explanation
1 Air outlet
2 Air inlet
Flexible air ducts can be connected to both the air outlet (1) and air inlet (2), separately, or in combination. The
distance (3) can be maximum 10 m.
Ø 190 mm
1
2
3 3
Figure 8. Connection with two flexible air ducts, one for air inlet and one for air outlet
Installation, Service and User Manual VMGFK202 – 15
