Caution! If the unit has a flexible air duct that reaches outside the building, a reliable water-resistant
measure must be done on the duct, to prevent water drop from entering the inside of the unit.
1 2
3

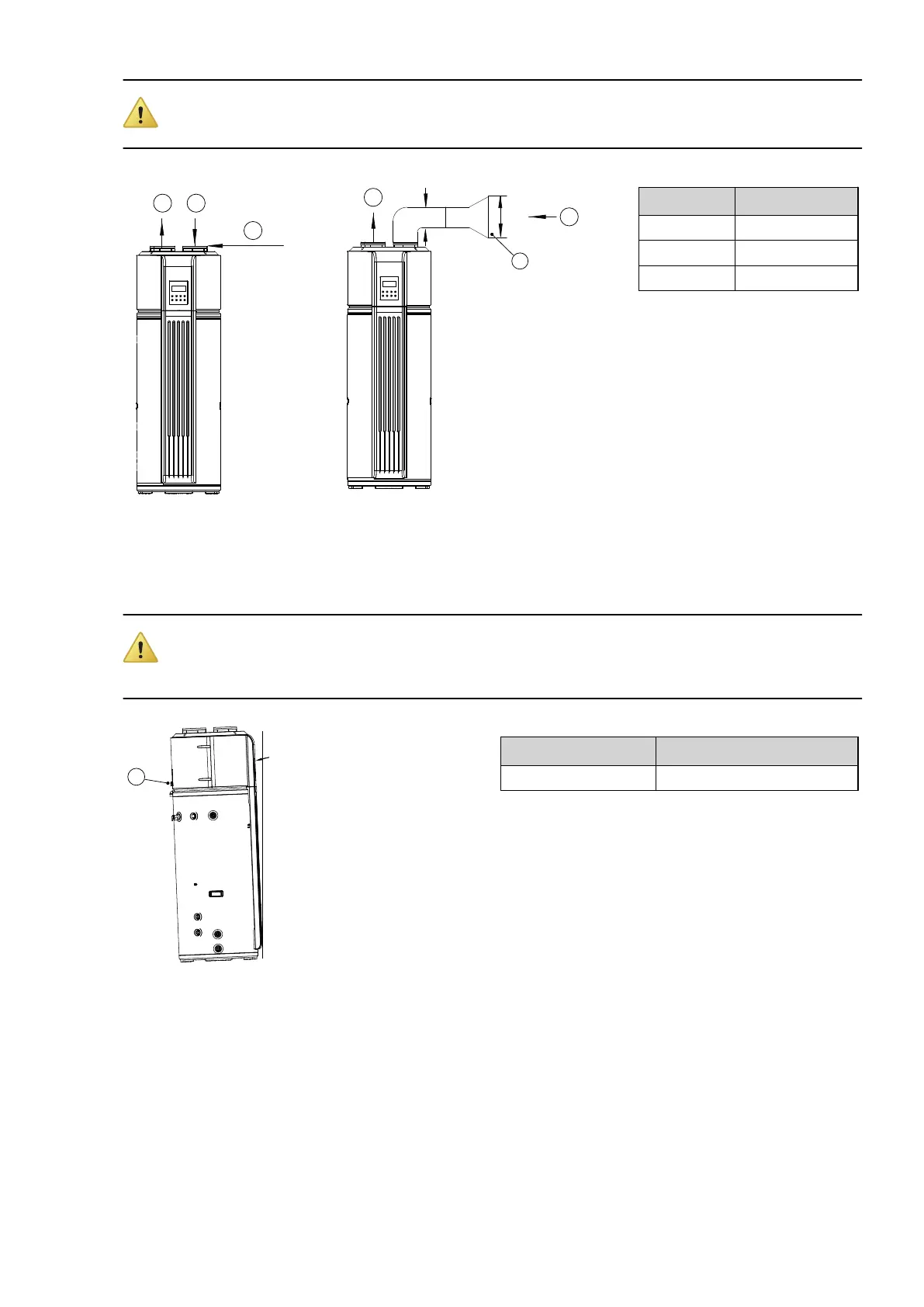

Figure 9. Filter position at air
inlet
> 250 mm
Ø
3
1
2
Figure 10. Filter position at duct entrance
Position Explanation
1 Outlet
2 Inlet
3 Filter
Caution! To effectively drain condensate water from the evaporator, install the unit on a horizontal floor or
base. Otherwise, ensure that the drain vent is at the lowest place. The inclination angle between the unit
and the ground should not exceed 2°.
≤2
o
1
Figure 11. Inclination angle not more than 2°
Position Explanation
1 Drain
Installation, Service and User Manual VMGFK202 – 17
