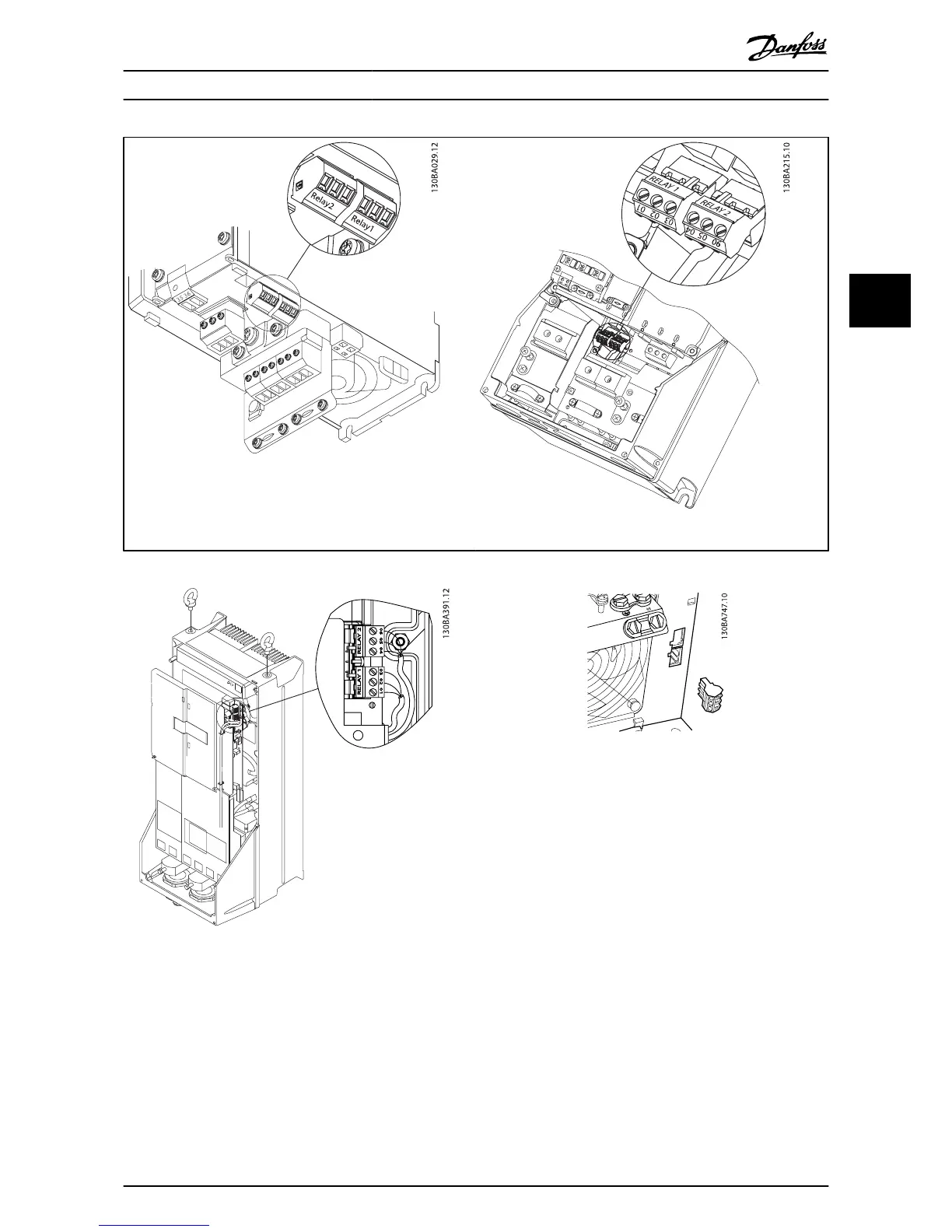

Terminals for relay connection
(A2 and A3 enclosures).
Terminals for relay connection
(A4, A5, B1 and B2 enclosures).
Illustration 4.28: Terminals for relay connection (C1 and C2
enclosures).
The relay connections are shown in the cut-out with relay
plugs (from the Accessory Bag) fitted.
Illustration 4.29: Terminals for relay connections for B3.
Only one relay input is fitted from the factory. When the
second relay is needed remove knock-out.
Electrical Installation
VLT
®
HVAC Drive Operating Instructions
MG.11.AD.02 - VLT
®
is a registered Danfoss trademark 39
4
