4.1.20 DC Bus Connection
The DC bus terminal is used for DC back-up, with the
intermediate circuit being supplied from an external source.
Terminal number 88 and 89 are used.

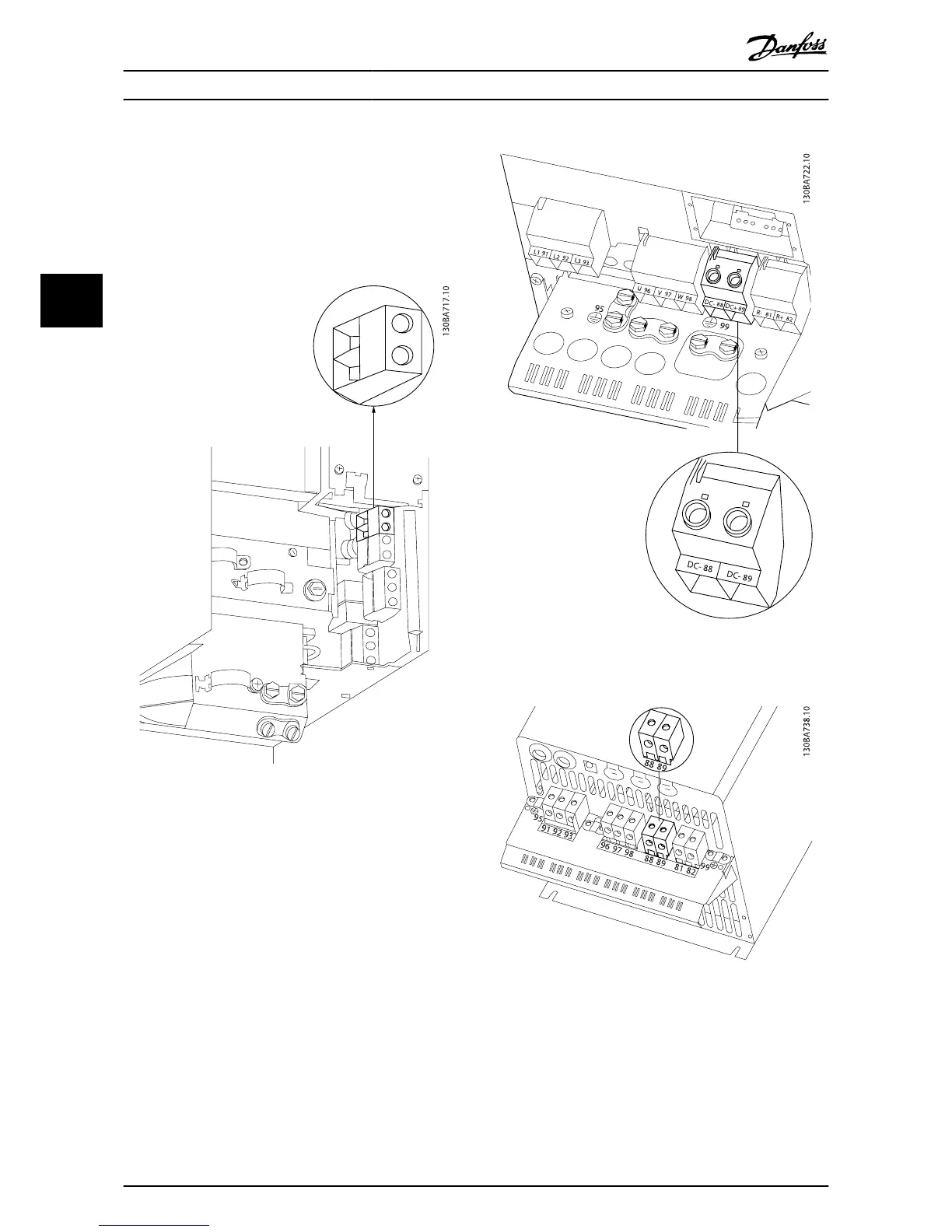

Illustration 4.20: DC bus connections for enclosure B3.
Illustration 4.21: DC bus connections for enclosure B4.
Illustration 4.22: DC bus connections for enclosure C3.
Electrical Installation
VLT
®
HVAC Drive Operating Instructions
36 MG.11.AD.02 - VLT
®
is a registered Danfoss trademark
