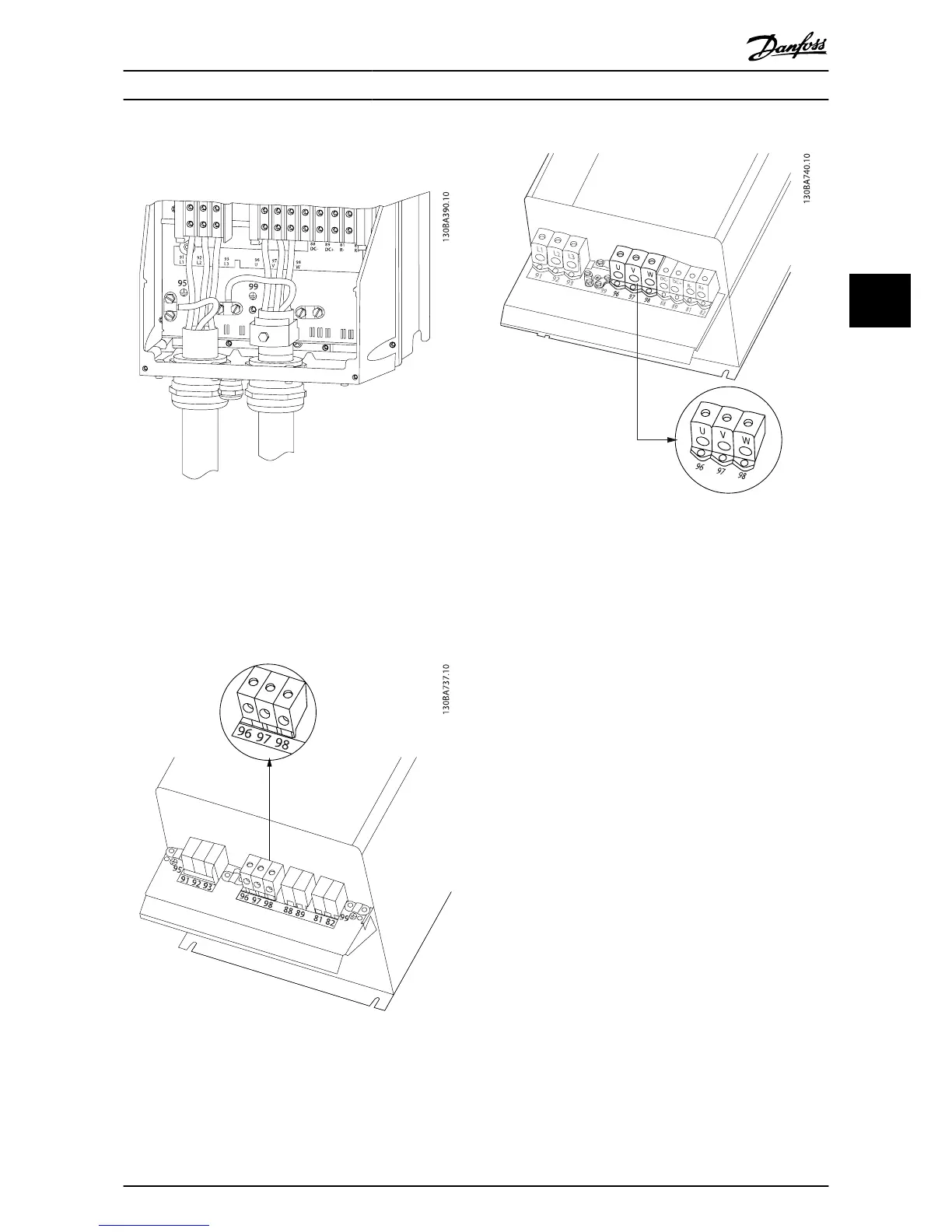

4.1.17 Motor Connection for C1 and C2
First terminate the motor earth, then Place motor U, V and W
wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC
clamp.
4.1.18 Motor Connection for C3 and C4
First terminate the motor earth, then place motor U, V and W
wires into the appropriate terminals and tighten. Please
ensure that the outer insulation of the motor cable is removed
under the EMC clamp.
First terminate the motor earth, then place motor U, V and W
wires into the appropriate terminals and tighten. Please
ensure that the outer insulation of the motor cable is removed
under the EMC clamp.
4.1.19 Wiring Example and Testing
The following section describes how to terminate control
wires and how to access them. For an explanation of the
function, programming and wiring of the control terminals,
please see chapter, How to programme the frequency converter.
Electrical Installation
VLT
®
HVAC Drive Operating Instructions
MG.11.AD.02 - VLT
®
is a registered Danfoss trademark 35
4
4
