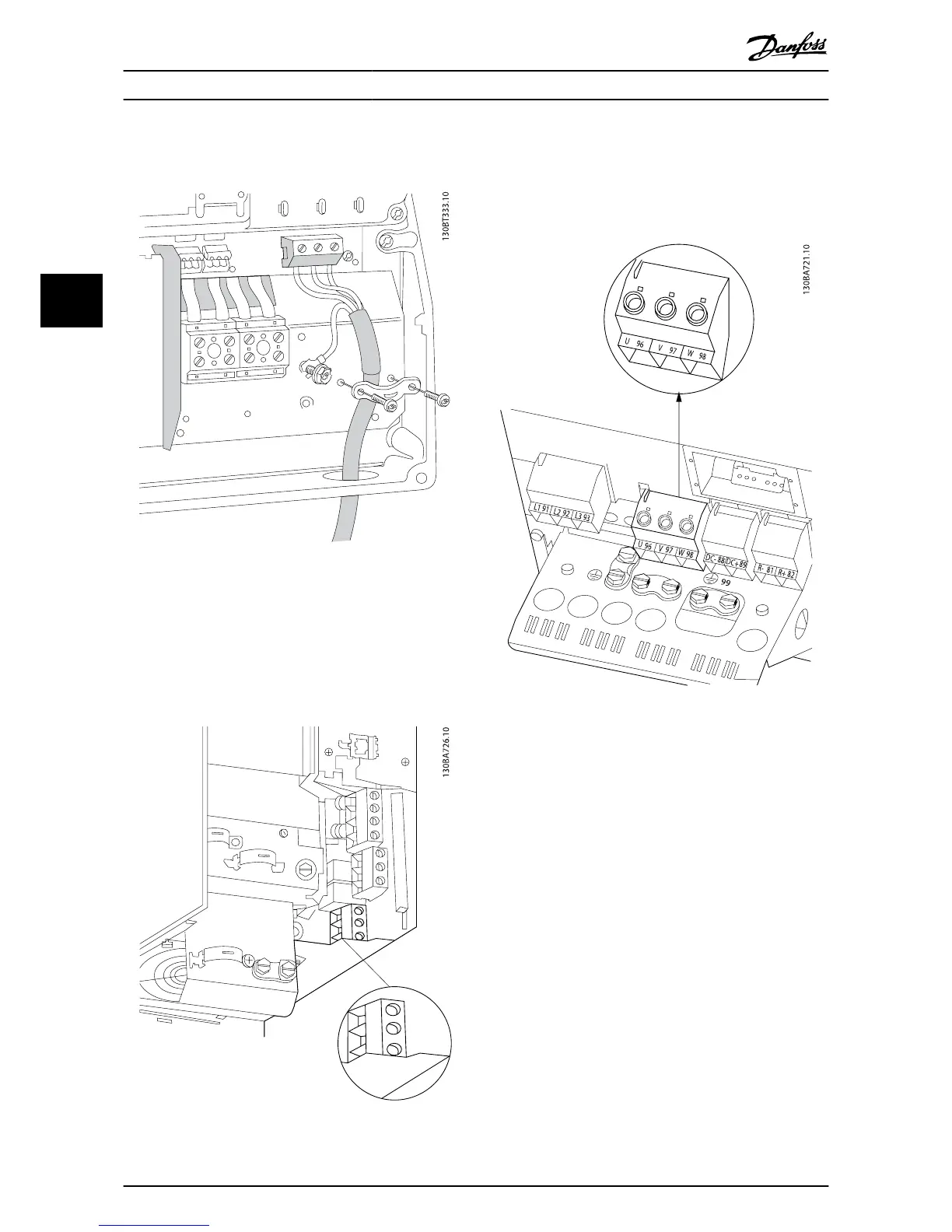

4.1.15 Motor Connection for B1 and B2
First terminate the motor earth, then Place motor U, V and W
wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC
clamp.
4.1.16 Motor Connection for B3 and B4
First terminate the motor earth, then Place motor U, V and W
wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC
clamp.
First terminate the motor earth, then Place motor U, V and W
wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC
clamp.
Electrical Installation
VLT
®
HVAC Drive Operating Instructions
34 MG.11.AD.02 - VLT
®
is a registered Danfoss trademark
4
4
